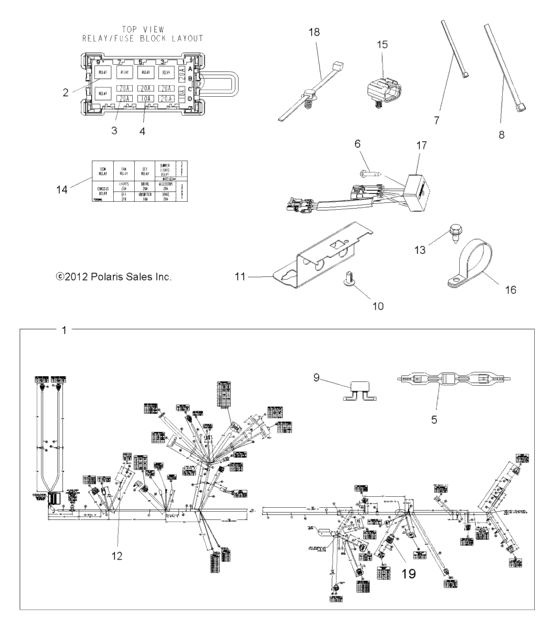

Electrical, Harness (A13TN55AA/AZ (49ATVHARNESS13SPX2550)) Diagram Polaris SPORTSMAN X2 550
- Model code
- A13TN55AA/AZ
- Year
- 2013
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2412429 Harness-main,550 x2INCL. 1-5,9,12,14, COVER, ALL KITS |
2412429 |
US $960.14 |
||
|
1
|
1
2878498 Kit-harness,tps |
2878498 |
US $102.43 |
||
|
1
|
1
5438758 Cover-relay/fuse center |
5438758 |
US $9.15 |
||
|
2
|
2
4011283 Relay-spst,series 303,sealed |
4011283 |
US $24.61 |
||
|
3
|
3
2434017
Fuse,park,20 amp,(10)
|
2434017 |
— | ||
|
4
|
4
2434016
Fuse,ign,10 amp,(10)
|
2434016 |
— | ||
|
5
|
5
2411035 Diode-6amp,1/4,3/16 term |
2411035 |
US $44.29 |
||
|
6
|
6
7518418 Scr-1/4-20x1,50-hx/tap-r,mag |
7518418 |
US $1.77 |
||
|
7
|
7
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
8
|
8
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
9
|
9
2410692 Breaker-circuit,10 amp,sealed |
2410692 |
US $12.20 |
||
|
10
|
10
7670125 Fastner-push-on clip,,250 |
7670125 |
US $7.30 |
||
|
11
|
11
5253502 Brkt-fuse block |
5253502 |
US $4.53 |
||
|
12
|
12
2202607 Kit-fusible link,0,8 mm |
2202607 |
US $35.26 |
||
|
12
|
12
2202670 Kit-fusible link,1,0mm |
2202670 |
US $35.26 |
||
|
13
|
13
7512095 Screw |
7512095 |
US $3.26 |
||
|
14
|
14
7175140 Label-fuse box,550 |
7175140 |
US $14.28 |
||
|
15
|
15
4012170
Cover-diagnostic,w/clip
|
4012170 |
— | ||
|
16
|
16
7080807
Clamp-hose
|
7080807 |
— | ||
|
17
|
17
4012829 Relay, solid state,9a,long ld |
4012829 |
US $72.96 |
||
|
18
|
18
7081496
Clip-routing
|
7081496 |
— | ||
|
19
|
19
4014055 Module-resistor |
4014055 |
US $20.28 |
