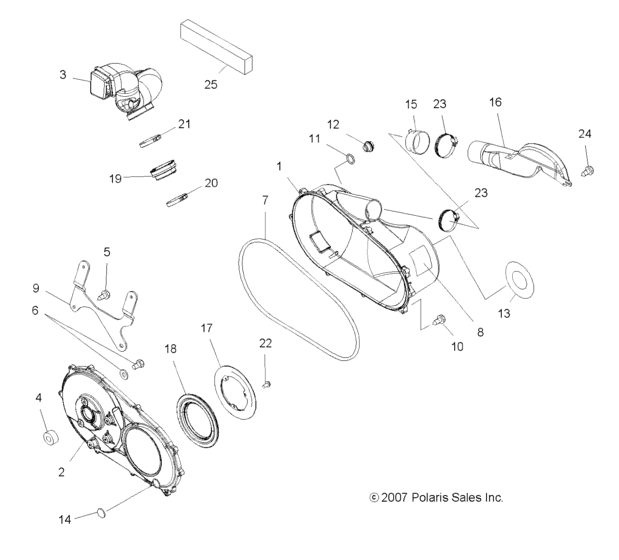

Body, clutch cover (A09BA32AA) Diagram Polaris TRAIL BLAZER 330
- Model code
- A09BA32AA
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
2633262
Asm-cover,clutch,outer,hv
Incl. Outer Cover,11,12; |
2633262 |
— | ||
2
|
2
2202438 Kit-clutch cover,inner w/stopIncl. 7,10,18; |
2202438 |
US $162.51 |
||
3
|
3
5436951
Duct-inlet,cds
|
5436951 |
— | ||
4
|
4
5410489 Seal,cover case |
5410489 |
US $10.85 |
||
5
|
5
7517386 Screw(10) |
7517386 |
US $5.25 |
||
6
|
6
7510000 Asm-bolt/washer,1,125 |
7510000 |
US $1.77 |
||
7
|
7
5521738 Seal-outer clutch cover |
5521738 |
US $45.17 |
||
replacement | |||||
7
|
7
5526450 SEAL-OUTER CLUTCH COVER |
5526450 |
US $45.17 |
||
8
|
8
7172563 Decal, warning, clutch cover |
7172563 |
US $3.36 |
||
9
|
9
5247524-067 Brkt-clutch cover,black |
5247524-067 |
US $11.24 |
||
10
|
10
7512094 Screw(10) * |
7512094 |
US $39.40 |
||
11
|
11
5410542
O-ring
|
5410542 |
— | ||
replacement | |||||
11
|
11
5411432 O ring (10) |
5411432 |
US $39.70 |
||
12
|
12
5434264 Plug-drain |
5434264 |
US $3.15 |
||
13
|
13
7172746 Decal-automatic transmission |
7172746 |
US $4.34 |
||
14
|
14
5411795 Stopper-inner clutch cover |
5411795 |
US $8.17 |
||
15
|
15
5412636 Boot-duct,hi-flow |
5412636 |
US $10.85 |
||
16
|
16
5434213 Duct-air outlet |
5434213 |
US $89.37 |
||
17
|
17
5242046 Brkt-clutch seal |
5242046 |
US $24.43 |
||
18
|
18
5412637 Seal-cover case,engine |
5412637 |
US $32.52 |
||
19
|
19
5411721 Boot-clutch intake |
5411721 |
US $9.85 |
||
20
|
20
7080511 Clamp, narrow band |
7080511 |
US $1.75 |
||
21
|
21
7080909 Clamp,narrow band(1,77/2,75) |
7080909 |
US $6.69 |
||
22
|
22
3084205 Asm,,screw & washer(10) |
3084205 |
US $1.77 |
||
23
|
23
7081279 Clamp-band,narrow 70-90mm |
7081279 |
US $3.94 |
||
24
|
24
7517386 Screw(10) |
7517386 |
US $5.25 |
||
25
|
25
5812138 Foam-lh |
5812138 |
US $4.94 |
