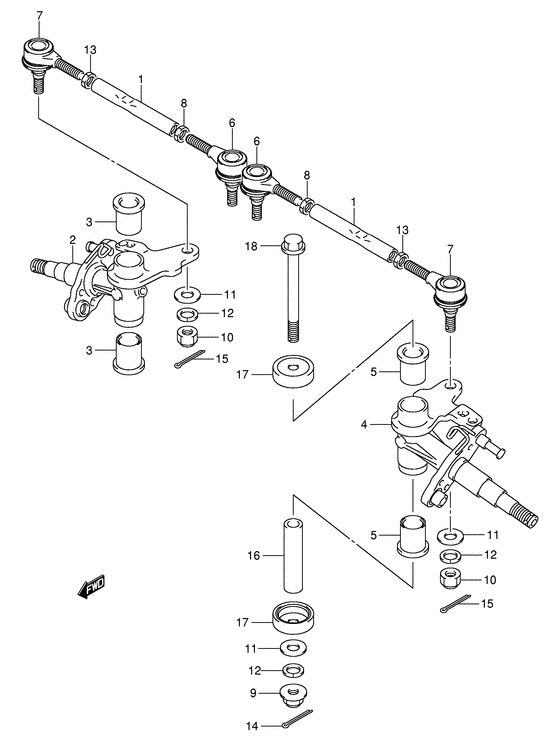

Knuckle arm Diagram Suzuki LT-A50 QuadMaster
- Model code
- LT-A50 K5
- Engine Capacity
- 82
- Year
- 2005
- Sales region
- US/Canada (P3/P28)
- Frame
- LM4AA123*5110001~
- Power
- 7,3 hp
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
51281-43F00-000 TIE ROD,STEERING |
51281-43F00-000 |
from US $13.32 |
||
2
|
2
51230-43F00-000 ARM,KNUCKLE,R |
51230-43F00-000 |
from US $169.28 |
||
3
|
3
51236-40B00-000 BUSH,KINGPIN |
51236-40B00-000 |
from US $10.94 |
||
4
|
4
51240-43F00-000 ARM,KNUCKLE,L |
51240-43F00-000 |
from US $169.28 |
||
5
|
5
51236-40B00-000 BUSH,KINGPIN |
51236-40B00-000 |
from US $10.94 |
||
6
|
6
51260-02C00-000
End comp, rod r
Rod end (rh thread); |
51260-02C00-000 |
— | ||
replacement | |||||
6
|
6
51260-43G00-000 END,ROD,RRod end (rh thread); |
51260-43G00-000 |
from US $46.37 |
||
7
|
7
51270-43F00-000
Rod end (lh thread)
Rod end (lh thread); |
51270-43F00-000 |
— | ||
replacement | |||||
7
|
7
51270-43G00-000 END,ROD,LRod end (lh thread); |
51270-43G00-000 |
from US $46.37 |
||
8
|
8
09140-10043-000 NUTNut, tie rod rh thread Nut (rh thread); |
09140-10043-000 |
from US $0.91 |
||
9
|
9
09159-10027-000 NUT |
09159-10027-000 |
from US $1.98 |
||
10
|
10
08319-21103-000
Nut
|
08319-21103-000 |
— | ||
replacement | |||||
10
|
10
08319-2110A-000 NUT |
08319-2110A-000 |
from US $2.13 |
||
11
|
11
09160-10126-000 WASHER(10.5X24X1.6) |
09160-10126-000 |
from US $1.93 |
||
12
|
12
09162-10008-000 WASHER,LOCKLock washer, rod end |
09162-10008-000 |
from US $1.28 |
||
13
|
13
09140-10027-000 NUTNut, tie rod lh thread Nut, tie rod (lh thread); |
09140-10027-000 |
from US $0.91 |
||
14
|
14
04111-20208-000
20 x 20 cotter
Cotter pin; |
04111-20208-000 |
— | ||
replacement | |||||
14
|
14
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
15
|
15
04111-20208-000
20 x 20 cotter
Cotter pin; |
04111-20208-000 |
— | ||
replacement | |||||
15
|
15
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
16
|
16
51251-40B00-000 SPACER,KING PIN |
51251-40B00-000 |
from US $10.82 |
||
17
|
17
51255-18900-000 DUST SEAL,KNUCKLE ARMSeal, fr suspension arm pivot |
51255-18900-000 |
from US $4.80 |
||
18
|
18
51256-40B00-000
Bolt, knuckle arm
|
51256-40B00-000 |
— | ||
replacement | |||||
18
|
18
09101-10044-000 BOLT(10X105) |
09101-10044-000 |
from US $9.10 |
