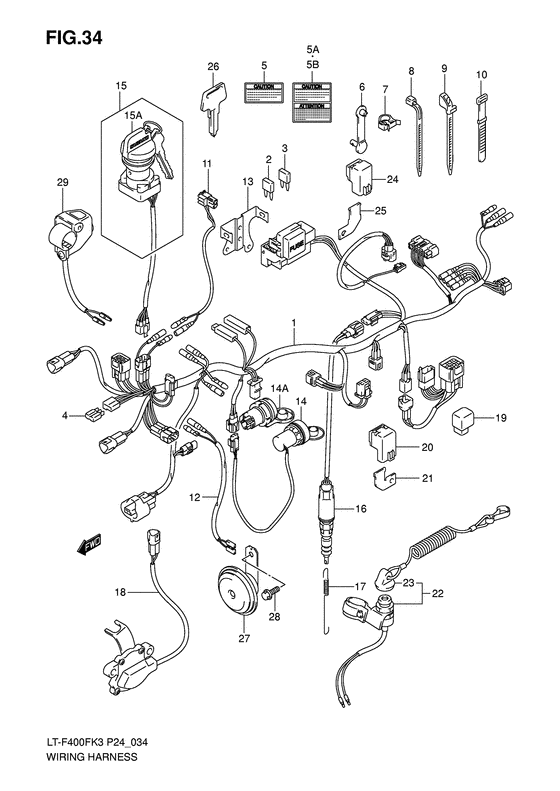

Wiring harness Diagram Suzuki LT-F400 Eiger 4WD
- Model code
- LT-F400FK4
- Engine Capacity
- 376
- Year
- 2004
- Sales region
- Australia (P24)
- Frame
- 5SAAK46A*47100001~
- Power
- 25 hp
- Model
- Eiger 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-38F20-000
HARNESS,WIRING
Model k3, ~f.no.5saak45a3x102000 |
36610-38F20-000 |
— | ||
|
1
|
1
36610-38F60-000
Harness wiring
Model k3, no.5saak45a3x102001~ |
36610-38F60-000 |
— | ||
| replacement | |||||
|
1
|
1
36610-38F61-000
HARNESS,WIRING
Model k3, no.5saak45a3x102001~ |
36610-38F61-000 |
— | ||
|
1
|
1
36610-38F61-000
HARNESS,WIRING
Model k4/k5/k6/k7 |
36610-38F61-000 |
— | ||
|
1
|
1
36610-38F70-000
Harness wiring
Model k3 p17 |
36610-38F70-000 |
— | ||
| replacement | |||||
|
1
|
1
36610-38F71-000
HARNESS,WIRING
Model k3 p17 |
36610-38F71-000 |
— | ||
|
1
|
1
36610-38F71-000
HARNESS,WIRING
Model k4/k5/k6/k7 p17 |
36610-38F71-000 |
— | ||
|
2
|
2
09481-05501-000 FUSE(5A)Fuse (5a); For 36610-38f20 |
09481-05501-000 |
from US $1.93 |
||
|
3
|
3
09481-10501-000 FUSE(10A)Fuse (10a); For 36610-38f20 |
09481-10501-000 |
from US $1.08 |
||
|
4
|
4
36611-38A00-000
Diode
|
36611-38A00-000 |
— | ||
| replacement | |||||
|
4
|
4
36611-38A10-000 DIODE |
36611-38A10-000 |
from US $9.64 |
||
|
5
|
5
38852-09F21-000 LABEL,CAUTION MAX AMP~f.no.5saak45a3x102000 |
38852-09F21-000 |
from US $3.90 |
||
|
5
|
5
38852-09F30-000 LABEL,CAUTION MAX AMPF.no.5saak45a3x102001~ |
38852-09F30-000 |
from US $4.71 |
||
|
5A
|
5A
38852-03G00-000
LABEL,CAUTION MAX AMP
~f.no.5saak45a3x102000, p17 |
38852-03G00-000 |
— | ||
|
5B
|
5B
38852-03G10-000 LABEL,CAUTION MAX AMPF.no.5saak45a3x102001~, p17 |
38852-03G10-000 |
from US $6.59 |
||
|
6
|
6
36651-48E00-000 CLAMP(L:63)Clamp, wiring harness Clamp, wiring harness; |
36651-48E00-000 |
from US $1.92 |
||
|
7
|
7
09403-20403-000 CLAMPClamp (d:20); |
09403-20403-000 |
from US $2.94 |
||
|
7
|
7
09403-25401-000 CLAMPClamp (d:25); |
09403-25401-000 |
US $19.10 |
||
|
8
|
8
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp (l:125); |
09407-14403-000 |
from US $2.08 |
||
|
8
|
8
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $1.98 |
||
|
9
|
9
09407-12407-000 CLAMP |
09407-12407-000 |
US $19.10 |
||
|
10
|
10
09407-12402-000 CLAMP(L:120)Clamp, wiring harness Clamp; |
09407-12402-000 |
from US $1.98 |
||
|
11
|
11
36856-35B00-000 WIRE,BRAKE SW LEADWire, front brake switch lead; |
36856-35B00-000 |
from US $8.13 |
||
|
12
|
12
36852-09F00-000 WIRE,HORN LEAD |
36852-09F00-000 |
US $9.72 |
||
|
13
|
13
36744-38F00-000 BRACKET,FUSE BOX |
36744-38F00-000 |
from US $5.34 |
||
|
14
|
14
38850-09F00-000 TERMINAL,POWER SOURCE12v,60w, ~f.no.5saak45a3x102000 |
38850-09F00-000 |
US $62.56 |
||
|
14A
|
14A
38850-03G00-000 TERMINAL,POWER SOURCETerminal, power source; 12v,120w, f.no.5saak45a3x102001~ |
38850-03G00-000 |
from US $49.68 |
||
|
15
|
15
37110-38F00-000
SWITCH ASSY,IGNITION
|
37110-38F00-000 |
— | ||
| replacement | |||||
|
15
|
15
37110-38F01-000
Switch Assy,ignition
|
37110-38F01-000 |
— | ||
|
15A
|
15A
37142-19B00-000
MASCOT,KEY
Mascot; |
37142-19B00-000 |
— | ||
| replacement | |||||
|
15A
|
15A
37142-19B01-000 Mascot,keyMascot; |
37142-19B01-000 |
US $5.76 |
||
|
16
|
16
37740-38F01-000 SWITCH ASSY,STOP LAMP |
37740-38F01-000 |
from US $59.98 |
||
|
17
|
17
09443-06016-000 SPRINGSpring, stop lamp Spring, stop lamp; |
09443-06016-000 |
from US $2.66 |
||
|
18
|
18
37600-38F00-000 SWITCH ASSY,REVERSE~f.no.5saak46a3x102000 |
37600-38F00-000 |
from US $69.55 |
||
|
18
|
18
37600-38F10-000 SWITCH ASSY,REVERSEF.no.5saak46a3x102001~ |
37600-38F10-000 |
from US $69.55 |
||
|
19
|
19
38730-09F00-000 RELAY,NEUTRAL STARTRelay, neutral start; |
38730-09F00-000 |
US $51.35 |
||
|
20
|
20
38740-26E00-000
RELAY ASSY
Relay, gear in start; |
38740-26E00-000 |
— | ||
| replacement | |||||
|
20
|
20
38740-26E01-000 Relay Assy,fuel PumpRelay, gear in start; |
38740-26E01-000 |
US $21.53 |
||
|
21
|
21
38741-09F00-000
BRACKET,GEAR IN START RELAY
|
38741-09F00-000 |
— | ||
|
22
|
22
37820-19B00-000
SWITCH ASSY,EMERGENCY
P17 |
37820-19B00-000 |
— | ||
|
23
|
23
37825-24500-000 WIRE,EMERGENCY SWITCHWire, emergency switch Wire, emergency switch; P17 |
37825-24500-000 |
US $15.71 |
||
|
24
|
24
38740-26E00-000
RELAY ASSY
Relay assy, backup lamp; P17 |
38740-26E00-000 |
— | ||
| replacement | |||||
|
24
|
24
38740-26E01-000 Relay Assy,fuel PumpRelay assy, backup lamp; P17 |
38740-26E01-000 |
US $21.53 |
||
|
25
|
25
38741-05300-000 BRACKET,SIDE STAND RELAYBracket, backup lamp Bracket, backup lamp; P17 |
38741-05300-000 |
US $3.42 |
||
|
26
|
26
37146-19B00-000 KEY,BLANK(TYPE:C)Key, blank type c Key, blank (type:c); Opt |
37146-19B00-000 |
from US $8.32 |
||
|
26
|
26
37146-19B10-000 KEY,BLANK(TYPE:D)Key, blank type d Key, blank (type:d); Opt |
37146-19B10-000 |
from US $4.82 |
||
|
26
|
26
37146-19B20-000 KEY,BLANK(TYPE:E)Key, blank (type:e); Opt |
37146-19B20-000 |
from US $4.82 |
||
|
26
|
26
37146-19B30-000 KEY,BLANK(TYPE:F)Key, blank (type:f); Opt |
37146-19B30-000 |
from US $8.10 |
||
|
27
|
27
38502-21E02-000 HORN ASSYHoen assy Horn assy; |
38502-21E02-000 |
from US $48.21 |
||
|
28
|
28
01550-08123-000
Bolt
Model k3/k4 |
01550-08123-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0812B-000 BoltPlug, drain Model k3/k4 |
01550-0812B-000 |
from US $0.91 |
||
|
28
|
28
01550-0812A-000 BOLTModel k3/k4 |
01550-0812A-000 |
from US $0.91 |
||
|
29
|
29
37830-18A00-000
Switch assy, horn
|
37830-18A00-000 |
— | ||
| replacement | |||||
|
29
|
29
37830-27H00-000 SWITCH ASSY,HORN |
37830-27H00-000 |
US $42.96 |
||
