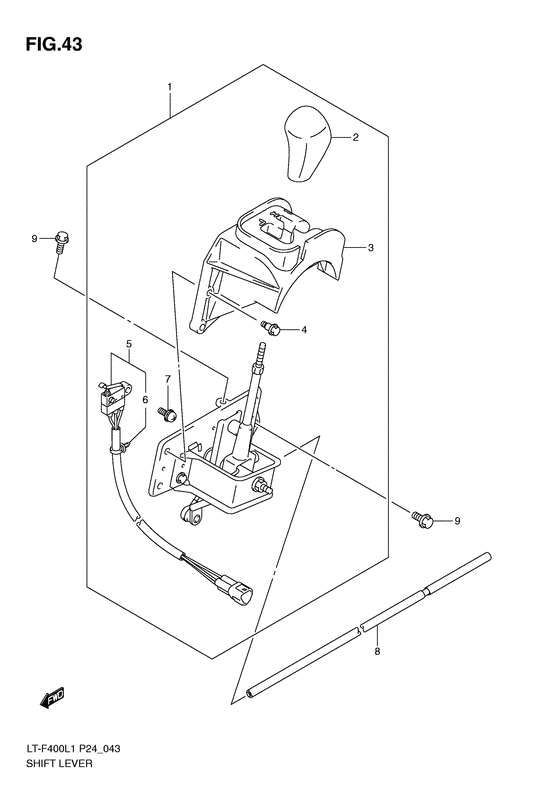

Shift lever Diagram Suzuki LT-F400 KingQuad 400 2WD
- Model code
- LT-F400L1(P24) L1
- Engine Capacity
- 376
- Year
- 2011
- Sales region
- Australia (P24)
- Frame
- 5SAAK4BA*B7100001~
- Power
- 25 hp
- Model
- KingQuad 400 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57800-27H00-000 LEVER SET,TRANSMISSION |
57800-27H00-000 |
from US $418.88 |
||
|
2
|
2
57830-27H00-000 KNOB,T/M LEVER |
57830-27H00-000 |
from US $14.94 |
||
|
3
|
3
57941-27H00-000 COVER,T/M LEVER GATE |
57941-27H00-000 |
from US $20.24 |
||
|
4
|
4
09111-06079-000 BOLT(6X20.6)Bolt (6x20.6); |
09111-06079-000 |
from US $1.98 |
||
|
5
|
5
57960-03G10-000
SWITCH ASSY,REVERSE
|
57960-03G10-000 |
— | ||
| replacement | |||||
|
5
|
5
57960-03G11-000 Switch Assy,reverse |
57960-03G11-000 |
US $38.64 |
||
|
6
|
6
09407-17403-000 CLAMP(L:154)Clamp (l:170) |
09407-17403-000 |
from US $2.88 |
||
|
7
|
7
02112-7310A-000 SCREW |
02112-7310A-000 |
from US $1.93 |
||
|
8
|
8
57911-27H00-000 ROD,T/M LEVER |
57911-27H00-000 |
from US $31.65 |
||
|
9
|
9
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.81 |
||
