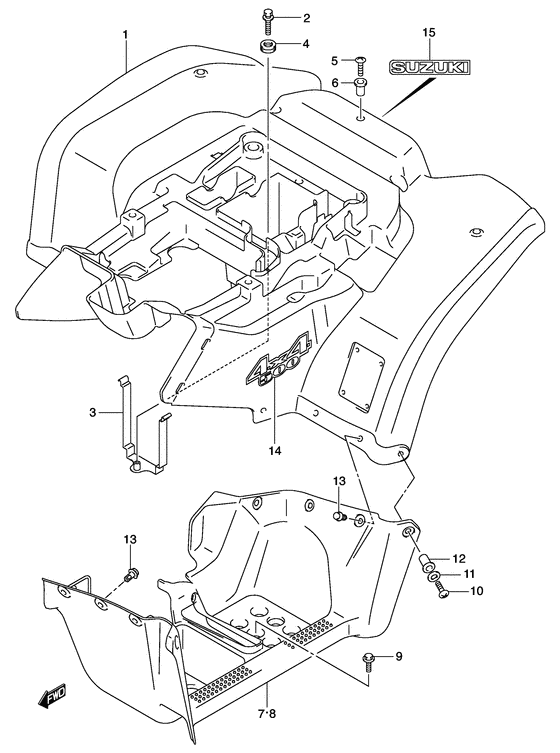

Rear fender Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-03G20-YU1
Fender, rear (yellow)
Fender, rear (yellow); |
63111-03G20-YU1 |
— | ||
| replacement | |||||
|
1
|
1
63111-03G21-YU1
FENDER,RR
Fender, rear (yellow); |
63111-03G21-YU1 |
— | ||
|
1
|
1
63111-03G20-YT8
Fender, rear (green)
Fender, rear (green); |
63111-03G20-YT8 |
— | ||
| replacement | |||||
|
1
|
1
63111-03G21-YT8
FENDER,RR
Fender, rear (green); |
63111-03G21-YT8 |
— | ||
|
1
|
1
63111-03G20-YT9
Fender, rear (red)
Fender, rear (red); |
63111-03G20-YT9 |
— | ||
| replacement | |||||
|
1
|
1
63111-03G21-YT9
FENDER,RR
Fender, rear (red); |
63111-03G21-YT9 |
— | ||
|
2
|
2
09112-06009-000 BOLT(6X30)Bolt, center Bolt, center; |
09112-06009-000 |
from US $2.99 |
||
|
3
|
3
63151-03G01-000
Bracket, rear fender
|
63151-03G01-000 |
— | ||
|
4
|
4
09320-11008-000 CUSHION |
09320-11008-000 |
from US $1.52 |
||
|
5
|
5
02142-05203-000
Screw
|
02142-05203-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
6
|
6
09159-05019-000 NUT |
09159-05019-000 |
from US $2.28 |
||
|
7
|
7
63331-03GF0-291
Mudguard, front rh (black)
Mudguard, front rh (black); |
63331-03GF0-291 |
— | ||
| replacements | |||||
|
7
|
7
02142-0520B-000 SCREWScrew, rear Mudguard, front rh (black); |
02142-0520B-000 |
from US $0.76 |
||
|
7
|
7
09159-05019-000 NUTMudguard, front rh (black); |
09159-05019-000 |
from US $2.28 |
||
|
7
|
7
09160-05046-000 WASHER(5.5X20X1.4)Mudguard, front rh (black); |
09160-05046-000 |
US $10.30 |
||
|
7
|
7
63331-03GF1-291
MUDGUARD,FOOTREST,R
Mudguard, front rh (black); |
63331-03GF1-291 |
— | ||
|
8
|
8
63341-03GF0-291
MUDGUARD,FOOTREST,L
Mudguard, front lh (black); |
63341-03GF0-291 |
— | ||
| replacement | |||||
|
8
|
8
63341-03GF1-291
MUDGUARD,FOOTREST,L
Mudguard, front lh (black); |
63341-03GF1-291 |
— | ||
|
9
|
9
09111-06061-000
Bolt,6x16.5
Bolt, guard; |
09111-06061-000 |
— | ||
| replacement | |||||
|
9
|
9
09111-06094-000 BOLT(6X16.5)Bolt, guard; |
09111-06094-000 |
from US $0.96 |
||
|
10
|
10
02142-05203-000
Screw
|
02142-05203-000 |
— | ||
| replacement | |||||
|
10
|
10
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
11
|
11
09160-05046-000 WASHER(5.5X20X1.4) |
09160-05046-000 |
US $10.30 |
||
|
12
|
12
09159-05019-000 NUT |
09159-05019-000 |
from US $2.28 |
||
|
13
|
13
09409-08335-000 CLIP |
09409-08335-000 |
from US $3.24 |
||
|
14
|
14
68171-03G10-JY5
EMBLEM,RR FENDER
|
68171-03G10-JY5 |
— | ||
|
15
|
15
68171-44B00-HW1 EMBLEMEmblem, rear; For yu1 |
68171-44B00-HW1 |
US $10.34 |
||
|
15
|
15
68171-44B00-HV6
EMBLEM
Emblem, rear; For yt8 |
68171-44B00-HV6 |
— | ||
|
15
|
15
68171-44B00-HV5 EMBLEMEmblem, front lower Emblem, rear; For yt9 |
68171-44B00-HV5 |
from US $6.88 |
||
