Speedometer Diagram Suzuki LT-F500F Vinson 4WD

Model code
LT-F500FK3
Engine Capacity
493
Year
2003
Sales region
US/Canada (E3/E28)
Frame
5SAAM44A*37100001~
Power
45 hp
2WD/4WD/AWD
4WD
Model
Vinson 4WD

Difficulties in parts search?

Parts list
Speedometer

Difficulties in parts search?

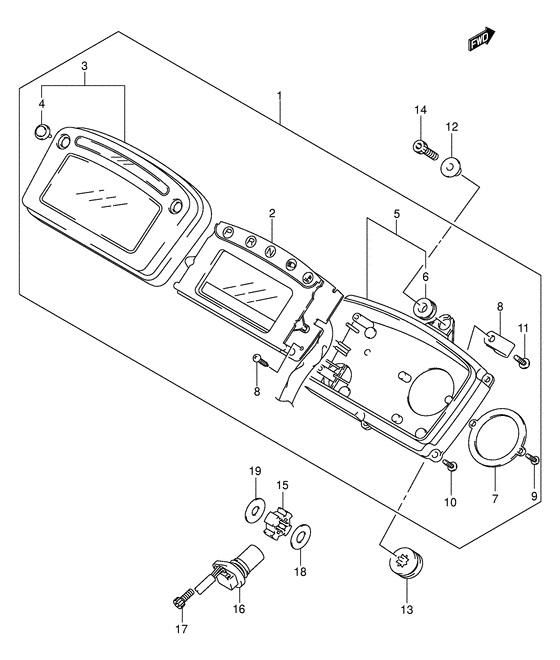

Speedometer
Description OEM Part # Price
1
1
34100-03G40-000
SPEEDOMETER ASSY

34100-03G40-000

1
1
34100-03G50-000
Speedometer assy

E28

34100-03G50-000

2
2
34120-03G40-000
SPEEDOMETER

34120-03G40-000

2
2
34120-03G50-000
SPEEDOMETER

E28

34120-03G50-000

3
3
34150-03G00-000
Case, upper

34150-03G00-000

replacement
3
3

34150-31G00-000

CASE,UPR

34150-31G00-000

from US $76.91

4
4

34124-24F00-000

SWITCH,LEVER

Switch lever

Switch lever;

34124-24F00-000

from US $5.70

5
5
34111-03G00-000
Case, lower

34111-03G00-000

replacement
5
5

34111-03G60-000

CASE,LWR

34111-03G60-000

from US $34.96

6
6

34955-33E00-000

CUSHION,METER

Damper;

34955-33E00-000

from US $1.52

7
7
34128-03G00-000
BRACKET

34128-03G00-000

8
8

34176-03G00-000

CLAMP

34176-03G00-000

from US $3.24

9
9

34149-31F10-000

SCREW,PAN HEAD(3X14)

Screw (3x14)

Screw (3x14);

34149-31F10-000

from US $2.61

10
10

34149-03G00-000

SCREW(3X14)

Screw (3x14);

34149-03G00-000

from US $2.13

11
11
02142-04163-000
Screw

02142-04163-000

replacement
11
11

02142-0416A-000

SCREW

02142-0416A-000

from US $1.75

12
12

34187-47F00-000

SPACER,SPEEDOMETER

Spacer, speedometer

34187-47F00-000

from US $4.32

13
13
34955-13E00-000
CUSHION

Cushion, meter no.1;

34955-13E00-000

replacement
13
13
34955-13E01-000
Cushion,speedometer

Cushion, meter no.1;

34955-13E01-000

14
14
07130-05203-000
Screw

07130-05203-000

replacement
14
14

07130-0520B-000

Bolt

Bolt, speedometer

07130-0520B-000

from US $2.38

15
15

34981-03G00-000

ROTOR,SPEED

34981-03G00-000

from US $16.49

16
16
34990-03G00-000
Sensor, speed

34990-03G00-000

replacement
16
16

34990-03G01-000

SENSOR,SPEED

34990-03G01-000

from US $112.61

17
17

09106-06073-000

BOLT(6X16)

Bolt, lower

Bolt, sensor;

09106-06073-000

from US $1.60

18
18

08211-10281-000

WASHER

Washer, speed rotor;

08211-10281-000

from US $1.93

19
19

08211-12282-000

WASHER

Washer, speed rotor

Washer, speed rotor;

08211-12282-000

from US $2.15
