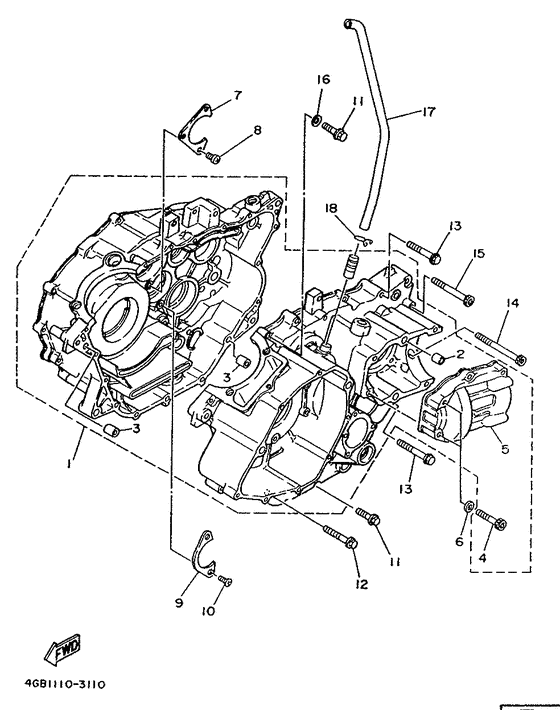

Crankcase Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- 4GB2
- Engine Capacity
- 401
- Year
- 1993
- Sales region
- Europe (General) (999)
- Colour
- Dark Grayish Cyan Solid 4 (DNCS4; 0385)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1YW-15100-07-00 Crankcase Assembly |
1YW-15100-07-00 |
US $1,171.04 |
||
|
02
|
02
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
02
|
02
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.94 |
||
|
02
|
02
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
03
|
03
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
03
|
03
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.43 |
||
|
04
|
04
913-11060-40-00
Bolt, Hexagon Socket Head
|
913-11060-40-00 |
— | ||
| replacement | |||||
|
04
|
04
91314-06040-00 Bolt, Hexagon Socket Head |
91314-06040-00 |
from US $1.43 |
||
|
05
|
05
1YW-15415-29-00
Cover, 1
|
1YW-15415-29-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
904-30060-14-00 Gasket |
904-30060-14-00 |
from US $1.13 |
||
|
07
|
07
3R4-15381-00-00 Plate, Bearing Cover |
3R4-15381-00-00 |
from US $3.13 |
||
|
08
|
08
98511-06012-00 Screw, Pan Head(3Sb) |
98511-06012-00 |
from US $1.50 |
||
| replacement | |||||
|
08
|
08
98517-06012-00 Screw, Pan Head |
98517-06012-00 |
from US $1.38 |
||
|
09
|
09
1UY-15383-00-00 Plate, Bearing Cover |
1UY-15383-00-00 |
from US $5.09 |
||
|
10
|
10
98701-06016-00 Screw, Flat Head |
98701-06016-00 |
from US $1.80 |
||
| replacements | |||||
|
10
|
10
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.50 |
||
|
10
|
10
98704-06016-00 Screw, Flat |
98704-06016-00 |
from US $1.80 |
||
|
11
|
11
95023-06030-00 Bolt, Flange (Small Head) |
95023-06030-00 |
from US $1.50 |
||
| replacement | |||||
|
11
|
11
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.50 |
||
|
12
|
12
95021-06050-00 Bolt, Flange |
95021-06050-00 |
US $1.53 |
||
| replacements | |||||
|
12
|
12
90105-06798-00 Bolt, Flange |
90105-06798-00 |
from US $2.99 |
||
|
12
|
12
950-27060-50-00
Bolt, Flange
|
950-27060-50-00 |
— | ||
|
13
|
13
95021-06060-00 Bolt, Flange |
95021-06060-00 |
from US $1.28 |
||
| replacements | |||||
|
13
|
13
95022-06060-00 Bolt, Flange |
95022-06060-00 |
from US $1.50 |
||
|
13
|
13
950-27060-60-00
Bolt, Flange
|
950-27060-60-00 |
— | ||
|
14
|
14
91311-06090-00 Bolt, Hexagon Socket Head |
91311-06090-00 |
from US $1.94 |
||
| replacement | |||||
|
14
|
14
91314-06090-00 Bolt, Hexagon Socket Head |
91314-06090-00 |
from US $1.94 |
||
|
15
|
15
91311-06070-00 Bolt, Hexagon Socket Head |
91311-06070-00 |
from US $1.80 |
||
| replacement | |||||
|
15
|
15
91314-06070-00 Bolt, Hexagon Socket Head |
91314-06070-00 |
from US $1.80 |
||
|
16
|
16
904-30060-14-00 Gasket |
904-30060-14-00 |
from US $1.13 |
||
|
17
|
17
2HR-11166-00-00 Pipe, Breather 1 |
2HR-11166-00-00 |
from US $14.06 |
||
|
18
|
18
90467-14015-00 Clip |
90467-14015-00 |
from US $1.65 |
||
