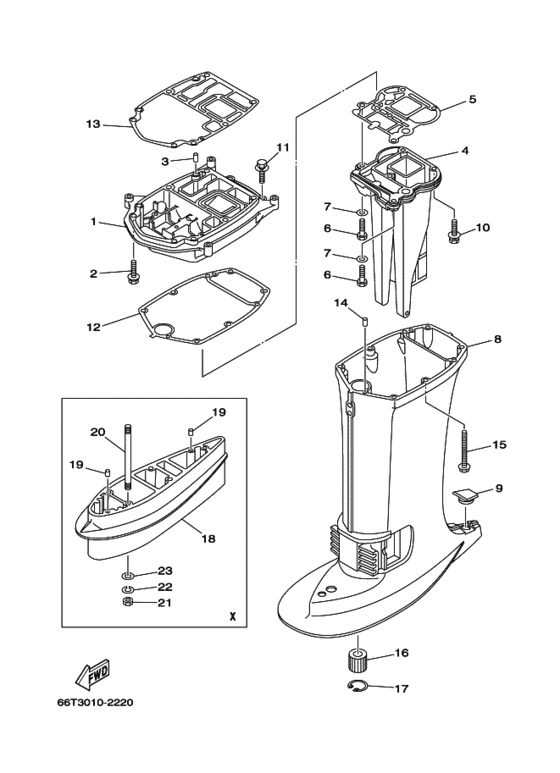

ｱﾂﾊﾟｰｹｰｼﾝｸﾞ Diagram Yamaha 40 M(W/T)HS/L
- Year
- 2003
- Model
- 40X
- Model code
- 66T
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66T-41137-00-94 Guide, Exhaustガイド，エキゾースト; |
66T-41137-00-94 |
US $101.82 |
||
| replacement | |||||
|
1
|
1
66T-41137-00-5B Guide, Exhaustガイド，エキゾースト; |
66T-41137-00-5B |
US $101.82 |
||
|
2
|
2
90119-08M79-00 Bolt, With Washer |
90119-08M79-00 |
US $3.44 |
||
| replacement | |||||
|
2
|
2
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.39 |
||
|
3
|
3
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.54 |
||
|
4
|
4
66T-41131-10-5B Manifold, Ext. 1マニホールド，エキゾースト １; |
66T-41131-10-5B |
US $112.04 |
||
|
5
|
5
66T-41133-A0-00 Gasket, Exhaust Manifold 1ガスケツト，エキゾーストマニホールド １; |
66T-41133-A0-00 |
from US $11.66 |
||
|
6
|
6
97075-08030-00 Boltボルト; |
97075-08030-00 |
US $2.39 |
||
| replacement | |||||
|
6
|
6
97080-08030-00 Boltボルト; |
97080-08030-00 |
from US $2.39 |
||
|
7
|
7
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.38 |
||
|
8
|
8
66T-45111-10-4D Casing, Upperケーシング，アツパー; |
66T-45111-10-4D |
US $629.85 |
||
|
9
|
9
63D-45155-00-00 Capキヤツプ; |
63D-45155-00-00 |
US $9.42 |
||
|
10
|
10
97575-08545-00 Bolt, With Washer |
97575-08545-00 |
US $2.09 |
||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
90119-08M79-00 Bolt, With Washer |
90119-08M79-00 |
US $3.44 |
||
| replacement | |||||
|
11
|
11
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.39 |
||
|
12
|
12
66T-45114-A0-00 Gasket, Upper Casingガスケツト，アツパーケーシング; |
66T-45114-A0-00 |
from US $15.78 |
||
|
13
|
13
66T-45113-A0-00 Gasket, Upper Casingガスケツト，アツパーケーシング; |
66T-45113-A0-00 |
from US $17.82 |
||
|
14
|
14
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.54 |
||
|
15
|
15
90119-08M42-00 Bolt, With Washer |
90119-08M42-00 |
US $7.78 |
||
|
16
|
16
679-45318-00-00 Bushing, Drive Shaftブツシング，ドライブシヤフト; |
679-45318-00-00 |
from US $20.90 |
||
| replacement | |||||
|
16
|
16
6A0-45318-00-00 Bushing, Drive Shaftブツシング，ドライブシヤフト; |
6A0-45318-00-00 |
US $33.06 |
||
|
17
|
17
93420-30042-00 Circlipサークリツプ; |
93420-30042-00 |
from US $4.12 |
||
|
18
|
18
66T-45211-00-4D ExtensionＸ |
66T-45211-00-4D |
US $739.69 |
||
|
19
|
19
936-06120-19-00 Pin, DowelＸ |
936-06120-19-00 |
from US $2.54 |
||
|
20
|
20
90116-10M23-00 Bolt, StudＸ |
90116-10M23-00 |
US $17.65 |
||
|
21
|
21
95380-10600-00 EcrouＸ |
95380-10600-00 |
from US $2.06 |
||
|
22
|
22
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; Ｘ |
92990-10100-00 |
from US $1.38 |
||
|
23
|
23
929-90106-00-00 Washer, Plateワツシヤ，プレート; Ｘ |
929-90106-00-00 |
from US $0.90 |
||
