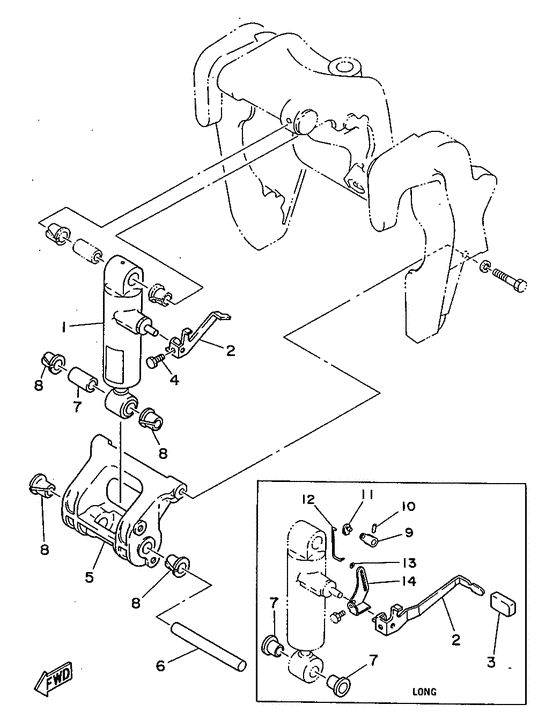

Bracket 2 (55BE/55BEM) Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1997
- Model
- 55B
- Model code
- 697
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
688-43170-04-4D Shock Absorber AssyUr long |
688-43170-04-4D |
US $781.40 |
||
| replacement | |||||
|
01
|
01
688-43107-05-8D Shock Absorber AssyUr long |
688-43107-05-8D |
US $681.19 |
||
|
01
|
01
697-43170-03-4D Shock Absorber AssyUr short |
697-43170-03-4D |
US $843.64 |
||
| replacement | |||||
|
01
|
01
697-43107-04-4D Shock Absorber Sub-AssyUr short |
697-43107-04-4D |
US $802.69 |
||
|
02
|
02
688-43631-10-00 Lever, TiltUr long |
688-43631-10-00 |
US $12.87 |
||
|
02
|
02
688-43631-00-00 Lever, TiltUr short |
688-43631-00-00 |
US $12.87 |
||
|
03
|
03
682-43318-01-00 CoverLong |
682-43318-01-00 |
from US $4.19 |
||
|
04
|
04
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
04
|
04
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.13 |
||
|
05
|
05
688-43128-01-4D Spacer, Clamp BracketUr long |
688-43128-01-4D |
US $227.88 |
||
| replacement | |||||
|
05
|
05
688-43128-01-8D
Spacer, Clamp Bracket
Ur long |
688-43128-01-8D |
— | ||
|
05
|
05
697-43128-01-4D Spacer, Clamp BracketUr short |
697-43128-01-4D |
US $210.36 |
||
|
06
|
06
688-43124-02-00 Pin, Lower Shock Mount |
688-43124-02-00 |
from US $46.26 |
||
|
07
|
07
90386-18M21-00 BushUr short |
90386-18M21-00 |
from US $6.43 |
||
|
07
|
07
90386-18M63-00 BushUr long |
90386-18M63-00 |
from US $3.44 |
||
|
08
|
08
90386-18M35-00 Bush |
90386-18M35-00 |
from US $10.28 |
||
|
09
|
09
688-43186-00-00 LeverLong |
688-43186-00-00 |
US $4.19 |
||
|
10
|
10
91690-30020-00 Pin, SpringLong |
91690-30020-00 |
from US $1.80 |
||
|
11
|
11
6J8-41262-00-00 Joint, Choke LeverLong |
6J8-41262-00-00 |
US $1.65 |
||
|
12
|
12
688-43616-00-00 Rod, Tilt LockLong |
688-43616-00-00 |
US $6.43 |
||
|
13
|
13
90202-03M51-00 Washer, PlateLong |
90202-03M51-00 |
from US $2.24 |
||
|
14
|
14
688-43651-00-00 Lever, Reverse Lock 1Long |
688-43651-00-00 |
US $54.05 |
||
