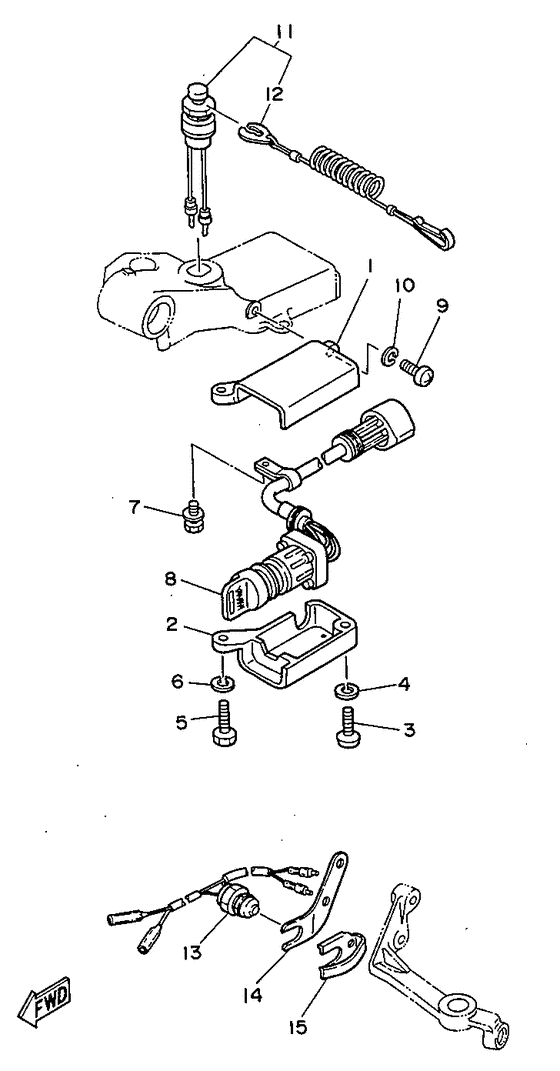

Electrical 2 Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1997
- Model
- 55B
- Model code
- 697
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
697-8252E-01-4D Cover, Main Switch |
697-8252E-01-4D |
US $56.24 |
||
| replacement | |||||
|
01
|
01
697-8252E-02-8D Main Switch Cover 1 |
697-8252E-02-8D |
US $49.06 |
||
|
02
|
02
697-8252F-01-4D Cover, Main Switch |
697-8252F-01-4D |
US $19.15 |
||
| replacements | |||||
|
02
|
02
697-8252F-02-8D Cover, Main Switch 2 |
697-8252F-02-8D |
from US $16.46 |
||
|
02
|
02
697-8252F-02-4D Cover, Main Switch 2 |
697-8252F-02-4D |
US $16.46 |
||
|
03
|
03
98580-06025-00 Screw, Pan Head |
98580-06025-00 |
US $0.90 |
||
| replacement | |||||
|
03
|
03
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $0.90 |
||
|
04
|
04
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
05
|
05
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
05
|
05
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.54 |
||
|
06
|
06
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
07
|
07
97595-06420-00 Bolt, With Washer |
97595-06420-00 |
from US $0.90 |
||
| replacements | |||||
|
07
|
07
970-80060-20-00 Bolt |
970-80060-20-00 |
US $1.50 |
||
|
07
|
07
97E95-06420-00 |
97E95-06420-00 |
US $0.77 |
||
|
08
|
08
6H3-82510-02-00 Main Switch Assy |
6H3-82510-02-00 |
US $175.30 |
||
| replacement | |||||
|
08
|
08
6H3-82510-03-00 Main Switch Assy |
6H3-82510-03-00 |
from US $115.75 |
||
|
09
|
09
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
09
|
09
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.50 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
11
|
11
688-82575-01-00 Engine Stop Switch Assy |
688-82575-01-00 |
US $53.61 |
||
| replacement | |||||
|
11
|
11
688-82575-02-00 Engine Stop Switch Assy |
688-82575-02-00 |
from US $53.61 |
||
|
12
|
12
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $20.20 |
||
|
13
|
13
697-82540-02-00
Neutral Switch Assembly
|
697-82540-02-00 |
— | ||
| replacement | |||||
|
13
|
13
697-82540-09-00
Neutral Switch Assy
|
697-82540-09-00 |
— | ||
|
14
|
14
663-82554-01-00 Stay, Neutral Switch |
663-82554-01-00 |
US $9.72 |
||
|
15
|
15
663-82555-01-00 Damper, Main Switch 1 |
663-82555-01-00 |
US $11.82 |
||
