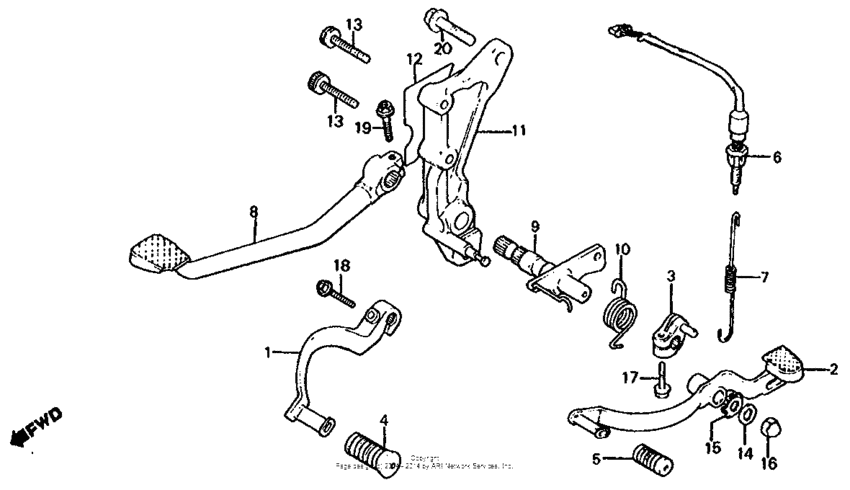

Gearshift pedal + brake pedal Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24701-MG1-000
Pedal, gearshift
|
24701-MG1-000 |
— | ||
|
2
|
2
24710-461-000
Pedal, select
|
24710-461-000 |
— | ||
|
3
|
3
24711-461-000
Arm, select
|
24711-461-000 |
— | ||
|
4
|
4
24781-419-000 Rubber |
24781-419-000 |
from US $2.59 |
||
|
5
|
5
24781-461-000
Rub,gear change
|
24781-461-000 |
— | ||
|
6
|
6
35350-KA2-405 Switch, rr. stop |
35350-KA2-405 |
from US $14.89 |
||
|
7
|
7
35357-MA2-610
Spring, stop switch
|
35357-MA2-610 |
— | ||
|
8
|
8
46500-MG1-000
Pedal, rr. brake
|
46500-MG1-000 |
— | ||
|
9
|
9
46510-461-000
Spindle,rr.brake
|
46510-461-000 |
— | ||
|
10
|
10
46514-461-000
Spring, brake pedal
|
46514-461-000 |
— | ||
|
11
|
11
46515-461-000
Hold,rr.brk.pedal
|
46515-461-000 |
— | ||
|
12
|
12
87504-461-670
Label
|
87504-461-670 |
— | ||
|
13
|
13
90105-MA6-750 Bolt, socket (8x28) |
90105-MA6-750 |
from US $3.92 |
||
|
14
|
14
90417-041-000 Washer, gearshift drum side |
90417-041-000 |
from US $1.87 |
||
|
15
|
15
90503-461-000
Washer,6mm
|
90503-461-000 |
— | ||
|
16
|
16
94021-062-200-S Nut,hex.,cap,6mm |
94021-062-200-S |
from US $0.81 |
||
|
17
|
17
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
18
|
18
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.65 |
||
|
19
|
19
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
||
|
20
|
20
95701-1002500 Bolt, flange, 10x25 |
95701-1002500 |
from US $0.81 |
