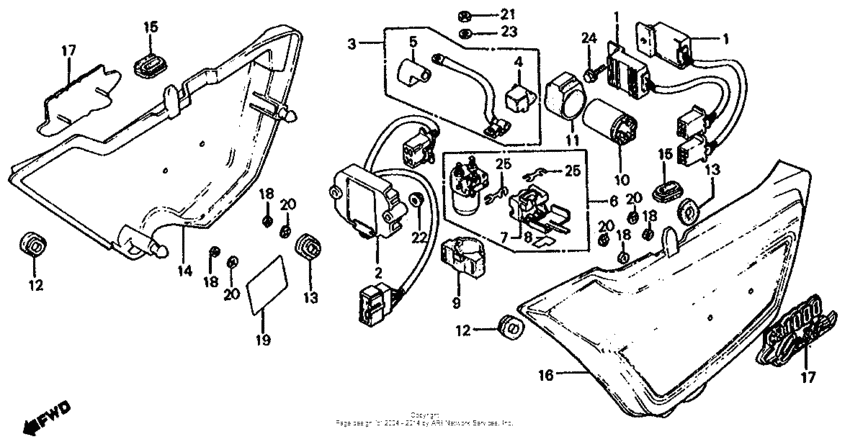

Side cover + spark unit + rectifier Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30400-MA4-601
Unit assy.,spark
|
30400-MA4-601 |
— | ||
|
2
|
2
31600-MA7-008
Rectifier,reg
|
31600-MA7-008 |
— | ||
|
3
|
3
32401-461-010
Cable,start.bat.
|
32401-461-010 |
— | ||
|
4
|
4
32414-425-000
Cover b,terminal
|
32414-425-000 |
— | ||
|
4
|
4
32414-425-910
Cover b,terminal
|
32414-425-910 |
— | ||
|
5
|
5
32415-461-000
Cover
|
32415-461-000 |
— | ||
|
6
|
6
35850-MB0-007 Sw assy,start.mag |
35850-MB0-007 |
from US $111.52 |
||
|
7
|
7
35852-425-017
Cover,fuse
|
35852-425-017 |
— | ||
|
8
|
8
35853-425-300
Label,fuse cover
|
35853-425-300 |
— | ||
|
9
|
9
35856-425-000 Rubber |
35856-425-000 |
US $5.92 |
||
|
10
|
10
38301-KK9-952 Relay, Turn Signal (FR-3303) |
38301-KK9-952 |
from US $49.91 |
||
|
11
|
11
38306-KB4-010 Suspension |
38306-KB4-010 |
US $5.48 |
||
|
12
|
12
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.33 |
||
|
13
|
13
83551-376-000 Grommet, side cover |
83551-376-000 |
from US $0.27 |
||
|
14
|
14
836A0-MG1-000ZA
Cover,r.side*nh-1
|
836A0-MG1-000ZA |
— | ||
|
14
|
14
836A0-MG1-000ZB
Cover,*yr-120c-u*
|
836A0-MG1-000ZB |
— | ||
|
15
|
15
83601-461-770
Grom.side cover
|
83601-461-770 |
— | ||
|
16
|
16
837A0-MG1-000ZA
Cover,l.side*nh-1
|
837A0-MG1-000ZA |
— | ||
|
16
|
16
837A0-MG1-000ZB
Cover,*yr-120c-u*
|
837A0-MG1-000ZB |
— | ||
|
17
|
17
87127-MG1-000
Emblem,side cover
|
87127-MG1-000 |
— | ||
|
18
|
18
87411-538-910
Rubber
|
87411-538-910 |
— | ||
|
19
|
19
87506-461-770
Mark.bat.caution
|
87506-461-770 |
— | ||
|
20
|
20
90313-567-000 NutSPEED, 3MM |
90313-567-000 |
from US $1.55 |
||
|
21
|
21
94002-060-800-S NutHEX., 6MM |
94002-060-800-S |
from US $0.44 |
||
|
22
|
22
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
23
|
23
94111-06800 WasherSPRING, 6MM |
94111-06800 |
from US $0.36 |
||
|
24
|
24
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
25
|
25
9820053000 Fuse f (30a) |
9820053000 |
from US $0.74 |
