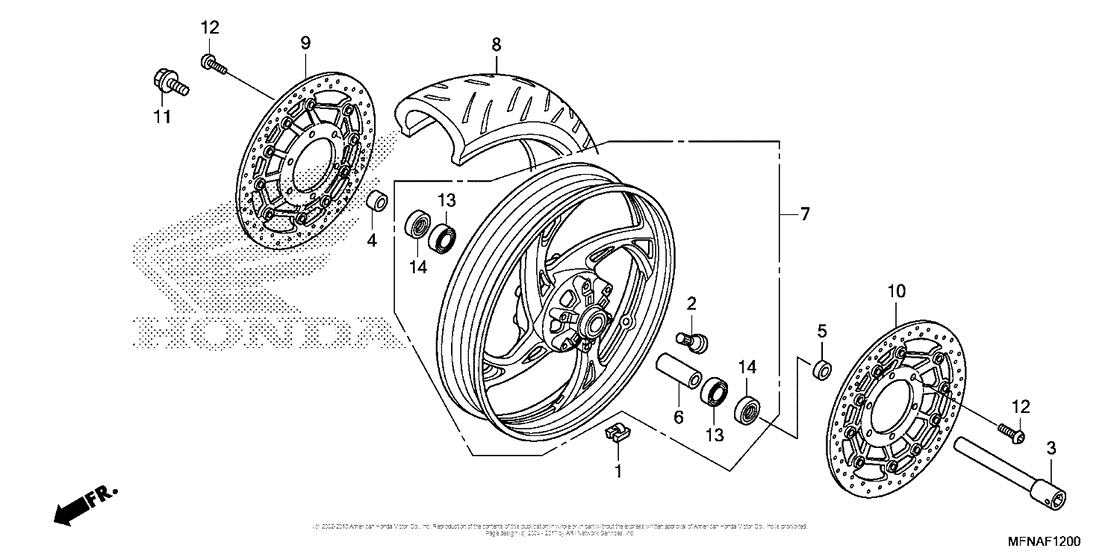

Front Wheel Diagram Honda CB1000 CB1000R
- Year
- 2015
- Model code
- CB1000R 4AC
- Sales region
- USA
- Frame
- ZDCSC601 - FF220001
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42704-MER-D00 Weight (10g) |
42704-MER-D00 |
from US $7.96 |
||
|
1
|
1
42705-MER-D00 Weight (20g) |
42705-MER-D00 |
from US $9.03 |
||
|
1
|
1
42706-MER-D00 Weight (30g) |
42706-MER-D00 |
from US $9.03 |
||
|
2
|
2
42753-ML7-003 Valve, rim |
42753-ML7-003 |
from US $7.84 |
||
|
2
|
2
42753-KWF-901 Valve, rim |
42753-KWF-901 |
from US $0.48 |
||
| replacement | |||||
|
2
|
2
42753-K38-901 Valve, Rim |
42753-K38-901 |
from US $0.48 |
||
|
3
|
3
44301-MFG-D00 Axle, fr. wheel |
44301-MFG-D00 |
from US $40.56 |
||
|
4
|
4
44311-MBZ-G00 Collar, r. fr. |
44311-MBZ-G00 |
from US $6.49 |
||
|
5
|
5
44312-MBZ-G00 Collar, l. fr. |
44312-MBZ-G00 |
from US $5.33 |
||
|
6
|
6
44620-MFG-D00 Collar, fr |
44620-MFG-D00 |
US $19.43 |
||
|
7
|
7
44650-MFN-305 Wheel sub-assy., fr. |
44650-MFN-305 |
US $387.31 |
||
|
8
|
8
44711-MFN-D02 Tire, Fr. (120/70Zr17) (M/c 58W) (Bs) |
44711-MFN-D02 |
US $307.97 |
||
|
9
|
9
45120-MFN-D01 Disk, r. fr. brake |
45120-MFN-D01 |
from US $410.72 |
||
|
10
|
10
45220-MFN-D01 Disk, l. fr. brake |
45220-MFN-D01 |
from US $425.22 |
||
|
11
|
11
90105-MBT-610 Bolt, fr. axle |
90105-MBT-610 |
from US $4.37 |
||
|
12
|
12
90106-MBB-000 Bolt (6x17) |
90106-MBB-000 |
from US $1.67 |
||
|
13
|
13
91052-MBW-E11 Bearing (20x45x12) |
91052-MBW-E11 |
from US $9.59 |
||
|
14
|
14
91252-MC4-013 Oil seal (28x47.2x7) |
91252-MC4-013 |
from US $6.53 |
||
