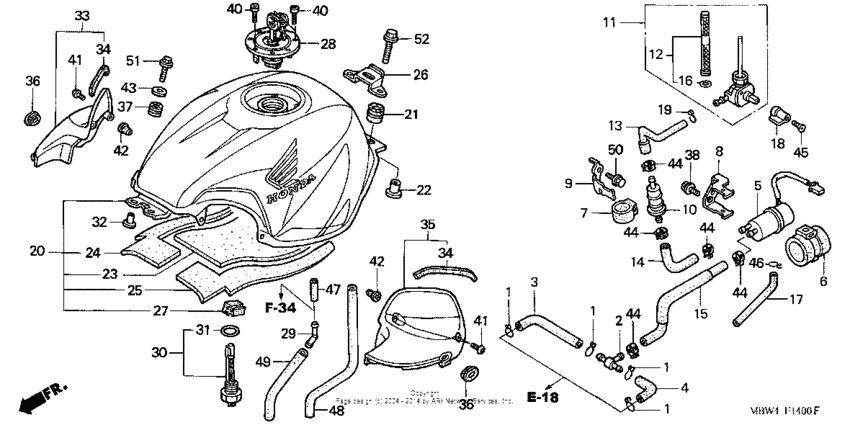

Fuel tank ('99-'00) Diagram Honda CBR600 CBR600F4
- Year
- 2000
- Model code
- CBR600F4 A
- Sales region
- USA
- Frame
- JH2PC350*YM100001 - JH2PC350*YM106777
- Engine Capacity
- 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15772-292-010 Clip, breather tube |
15772-292-010 |
from US $2.15 |
||
|
2
|
2
16180-MM5-601 T-joint |
16180-MM5-601 |
from US $20.93 |
||
|
3
|
3
16198-MBW-000
Tube, r. fuel
|
16198-MBW-000 |
— | ||
|
4
|
4
16199-MBW-000
Tube, l. fuel
|
16199-MBW-000 |
— | ||
|
5
|
5
16710-MBW-003 Pump assy., fuel |
16710-MBW-003 |
from US $142.24 |
||
|
6
|
6
16711-MBW-000
Rubber
|
16711-MBW-000 |
— | ||
|
7
|
7
16711-MF2-000 Holder, strainer |
16711-MF2-000 |
from US $12.43 |
||
|
8
|
8
16712-MBW-000
Band, fuel pump
|
16712-MBW-000 |
— | ||
|
9
|
9
16713-MBW-000
Stay, fuel strainer
|
16713-MBW-000 |
— | ||
|
10
|
10
16900-MG8-003 Strainer, fuel |
16900-MG8-003 |
from US $15.19 |
||
|
11
|
11
16950-MBW-023
Cock assy,fuel
|
16950-MBW-023 |
— | ||
|
12
|
12
16952-MBW-003
Screen set
|
16952-MBW-003 |
— | ||
|
13
|
13
16955-MBW-000 Tube a, fuel |
16955-MBW-000 |
from US $5.18 |
||
|
14
|
14
16956-MBW-000 Tube b, fuel |
16956-MBW-000 |
US $2.91 |
||
|
15
|
15
16957-MBW-000
Tube c, fuel
|
16957-MBW-000 |
— | ||
|
16
|
16
16958-KM9-005 O-ring (14.2x1.3) |
16958-KM9-005 |
from US $4 |
||
|
17
|
17
16958-MBW-000
Tube
|
16958-MBW-000 |
— | ||
|
18
|
18
16963-MY5-610 Lever, petcock |
16963-MY5-610 |
from US $6.66 |
||
|
19
|
19
17371-174-670 ClipBREATHER TUBE |
17371-174-670 |
from US $2.29 |
||
|
20
|
20
17506-MBW-670ZD Tank, fuel (type5) |
17506-MBW-670ZD |
US $838.80 |
||
|
20
|
20
17506-MBW-A00ZA Tank, fuel (type1) |
17506-MBW-A00ZA |
US $838.80 |
||
|
20
|
20
17506-MBW-A00ZB Tank, fuel (type2) |
17506-MBW-A00ZB |
US $838.80 |
||
|
21
|
21
17508-MBW-000 Rubber |
17508-MBW-000 |
from US $5.33 |
||
|
22
|
22
17509-MBW-000
Collar, tank set
|
17509-MBW-000 |
— | ||
|
23
|
23
17513-MBW-300 Mat, fuel tank |
17513-MBW-300 |
US $24.09 |
||
|
24
|
24
17514-MBW-300 Mat, r |
17514-MBW-300 |
from US $12.14 |
||
|
25
|
25
17515-MBW-300 Mat, l |
17515-MBW-300 |
from US $12.14 |
||
|
26
|
26
17530-MBW-000 Stay, fr. seat |
17530-MBW-000 |
US $12.67 |
||
|
27
|
27
17611-ML7-000 Rubber, fuel tank |
17611-ML7-000 |
from US $5.03 |
||
|
28
|
28
17620-MAS-E03 Cap comp,fuelfill |
17620-MAS-E03 |
from US $150.67 |
||
|
29
|
29
19103-ML7-000 Joint, tube |
19103-ML7-000 |
from US $3.85 |
||
|
30
|
30
37810-MBW-612
Sensor, fuel reserve
|
37810-MBW-612 |
— | ||
|
31
|
31
37811-MB1-008 Gasket |
37811-MB1-008 |
from US $2.56 |
||
|
32
|
32
61104-422-000 Collar, setting |
61104-422-000 |
from US $4.74 |
||
|
33
|
33
64580-MBW-000ZA
Cover, r. *nh1*
|
64580-MBW-000ZA |
— | ||
|
34
|
34
64581-MBW-300 Cushion |
64581-MBW-300 |
from US $3.32 |
||
|
35
|
35
64590-MBW-000ZA
Cover, l. *nh1*
|
64590-MBW-000ZA |
— | ||
|
36
|
36
83551-MA6-000 Grommet, side cover |
83551-MA6-000 |
from US $2.21 |
||
|
37
|
37
84703-425-000 Rubber |
84703-425-000 |
from US $3.26 |
||
|
38
|
38
90004-GHB-610 Bolt, flange (6x12) |
90004-GHB-610 |
from US $1.78 |
||
|
40
|
40
90074-MT4-000 Bolt, socket (4x21) |
90074-MT4-000 |
from US $1.42 |
||
|
41
|
41
90103-MBG-000 Screw, pan (5x20) |
90103-MBG-000 |
from US $0.83 |
||
|
42
|
42
90111-KW3-003 Nut (5mm) |
90111-KW3-003 |
from US $1.62 |
||
|
43
|
43
90525-428-900 Washer, plain, 6mm |
90525-428-900 |
from US $2.40 |
||
|
44
|
44
90682-SA0-671 ClampCANISTER HOSE |
90682-SA0-671 |
from US $2.96 |
||
|
45
|
45
93700-050120G Screw, oval (5x12) |
93700-050120G |
from US $0.37 |
||
|
46
|
46
95002-50000 ClipTUBE(C9) |
95002-50000 |
from US $0.20 |
||
|
47
|
47
95005-450-0120M Bulk hose (4.5x1000) |
95005-450-0120M |
from US $6.96 |
||
|
48
|
48
95005-800-0150M Bulk hose (8x1000) |
95005-800-0150M |
from US $7.40 |
||
|
49
|
49
95005-800-0120M Bulk hose (8x1000) |
95005-800-0120M |
from US $12.73 |
||
|
50
|
50
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.65 |
||
|
51
|
51
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.36 |
||
|
52
|
52
96300-0804500 Bolt, flange (8x45) |
96300-0804500 |
from US $0.89 |
