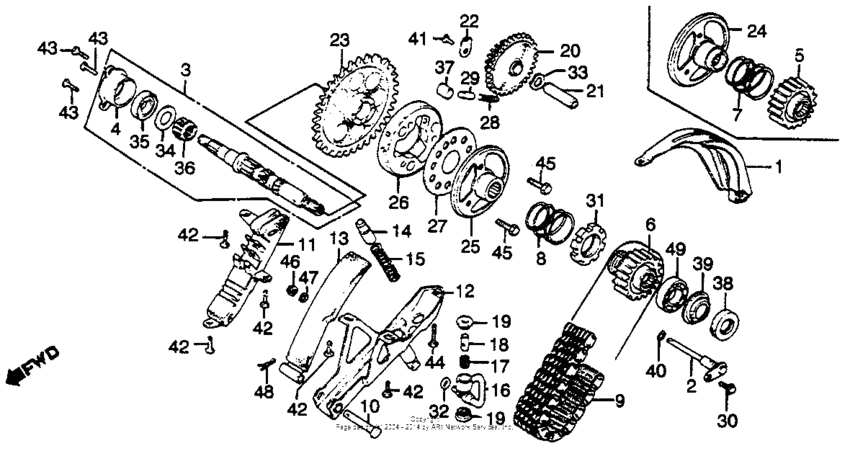

Primary shaft Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11145-422-000
Plate, oil drip
|
11145-422-000 |
— | ||
|
2
|
2
15511-422-000
Nozzle,oil supply
|
15511-422-000 |
— | ||
|
3
|
3
23100-422-000
Shaft,primary
|
23100-422-000 |
— | ||
|
4
|
4
23102-422-000
Hold,prim.shft bg
|
23102-422-000 |
— | ||
|
5
|
5
23111-422-000
Sprkt,prim.driven
Use up to Engine SN 2020728 |
23111-422-000 |
— | ||
|
6
|
6
23111-422-020
Sprocket,primary.
Use from Engine SN 2020729 |
23111-422-020 |
— | ||
|
7
|
7
23122-422-000
Spg.,primary side
Use up to Engine SN 2020728 |
23122-422-000 |
— | ||
|
8
|
8
23122-422-010
Spg.,primary side
Use from Engine SN 2020729 |
23122-422-010 |
— | ||
|
9
|
9
23131-422-004
Chain,primary
|
23131-422-004 |
— | ||
|
10
|
10
23138-431-000
Pin, 8x44
|
23138-431-000 |
— | ||
|
11
|
11
23141-422-000
Guid,prim.chin up
|
23141-422-000 |
— | ||
|
12
|
12
23160-422-010
B.,prim.tensioner
|
23160-422-010 |
— | ||
|
13
|
13
23166-422-000
Guid,prim.chin lo
|
23166-422-000 |
— | ||
|
14
|
14
23167-422-010
Bar assy.,push
|
23167-422-010 |
— | ||
|
15
|
15
23168-422-000
Spg,prim tension
|
23168-422-000 |
— | ||
|
16
|
16
23175-422-000
Pipe comp.,tensi.
|
23175-422-000 |
— | ||
|
17
|
17
23170-422-305
Filter set,oil
|
23170-422-305 |
— | ||
|
18
|
18
23177-422-000
Pin,guide
|
23177-422-000 |
— | ||
|
19
|
19
23170-422-305
Filter set,oil
|
23170-422-305 |
— | ||
|
20
|
20
28101-422-000
Gear,start.red
|
28101-422-000 |
— | ||
|
21
|
21
28106-422-000
Shaft,reduction g
|
28106-422-000 |
— | ||
|
22
|
22
28107-422-000
Plate,idle stopp.
|
28107-422-000 |
— | ||
|
23
|
23
28111-MA2-000
Gear,start.clutch
|
28111-MA2-000 |
— | ||
|
24
|
24
28115-422-000
Frange,start.clch
Use up to Engine SN 2020728 |
28115-422-000 |
— | ||
|
25
|
25
28115-422-010
Flange,start.clch
Use from Engine SN 2020729 |
28115-422-010 |
— | ||
|
26
|
26
28120-422-000
Outer,start.clch.
|
28120-422-000 |
— | ||
|
27
|
27
28124-422-000
Plate,start clch.
|
28124-422-000 |
— | ||
|
28
|
28
28125-422-000
Sp,start.clch.rol
|
28125-422-000 |
— | ||
|
29
|
29
28126-516-020 Cap,staringclutch |
28126-516-020 |
from US $10.36 |
||
|
30
|
30
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
31
|
31
90056-422-010
Nut,primary lock
Use from Engine SN 2020729 |
90056-422-010 |
— | ||
|
32
|
32
90416-500-000 Pipe washer |
90416-500-000 |
from US $2.38 |
||
|
33
|
33
90435-422-000 Washer, wave (10mm) |
90435-422-000 |
US $3.18 |
||
|
34
|
34
90557-422-000
Washer spl.25mm
|
90557-422-000 |
— | ||
|
35
|
35
91002-422-008 Bearing (5205a) |
91002-422-008 |
from US $27.34 |
||
|
36
|
36
91024-422-000
Needle brg
|
91024-422-000 |
— | ||
|
37
|
37
91101-422-000
Roller,15x16
|
91101-422-000 |
— | ||
|
38
|
38
91201-422-005
Oil seal,25x38x7
|
91201-422-005 |
— | ||
|
39
|
39
91209-422-005
Oil seal,25x52
|
91209-422-005 |
— | ||
|
40
|
40
91312-107-000 O-ring (7x1.7) |
91312-107-000 |
from US $1.42 |
||
|
41
|
41
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
41
|
41
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.47 |
||
|
41
|
41
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.47 |
||
|
42
|
42
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.47 |
||
|
43
|
43
92101-06018-0A Bolt, hex., 6x18 |
92101-06018-0A |
from US $0.44 |
||
|
44
|
44
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.19 |
||
|
45
|
45
92101-08018-0A Bolt,hex.,8x18 |
92101-08018-0A |
from US $0.55 |
||
|
46
|
46
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
47
|
47
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.36 |
||
|
48
|
48
94251-08000 PinLOCK, 8MM |
94251-08000 |
from US $0.59 |
||
|
49
|
49
96100-620-500-0 Bearing, radial ball, 6205 |
96100-620-500-0 |
from US $8.14 |
||
|
49
|
49
96100-6205010 Bearing, radial ball, 6205 |
96100-6205010 |
from US $8.55 |
||
