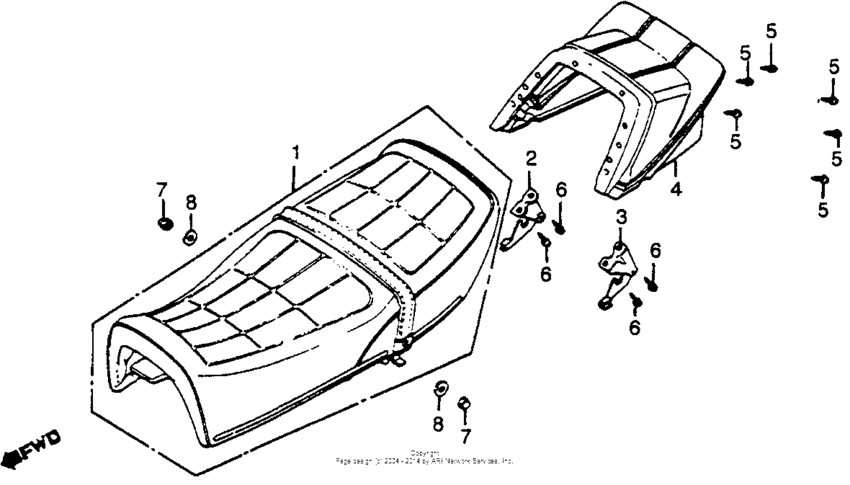

Seat 79 Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77200-469-505
Seat assy
|
77200-469-505 |
— | ||
|
2
|
2
77110-422-000
Hook comp.,r.seat
|
77110-422-000 |
— | ||
|
3
|
3
77120-422-000
Hook comp.,l.seat
|
77120-422-000 |
— | ||
|
4
|
4
77210-422-305ZA
Cowl sub*nh101mu*
|
77210-422-305ZA |
— | ||
|
4
|
4
77210-422-305ZB
Cowl sub,*r101cu*
|
77210-422-305ZB |
— | ||
|
4
|
4
77210-422-000ZC
Cowl sub,rr*nh-1*
|
77210-422-000ZC |
— | ||
|
5
|
5
93903-35210 Screw, tapping, 5x12 |
93903-35210 |
from US $0.37 |
||
|
6
|
6
93903-35410 Screw,tap.,5x20 |
93903-35410 |
from US $0.37 |
||
|
7
|
7
94021-080-200-S NutCAP, 8MM |
94021-080-200-S |
from US $0.74 |
||
|
8
|
8
9410308200 Washer, plain, 8mm |
9410308200 |
from US $0.52 |
