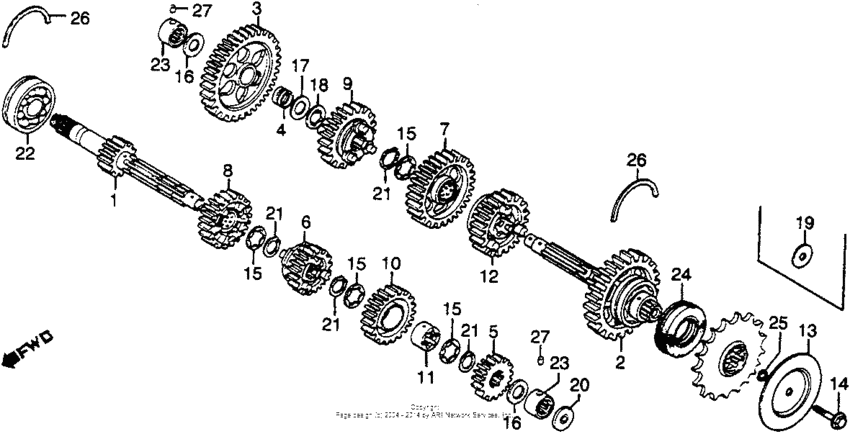

Transmission Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-422-000
Mainshaft t/m 16t
|
23211-422-000 |
— | ||
|
2
|
2
23220-422-010
Countershaft comp
|
23220-422-010 |
— | ||
|
3
|
3
23421-422-000
Gear,ct/shaft low
|
23421-422-000 |
— | ||
|
4
|
4
23425-422-000
Collar,24x17
|
23425-422-000 |
— | ||
|
5
|
5
23431-422-000
Gear,m/shaft 2nd
|
23431-422-000 |
— | ||
|
6
|
6
23451-422-010
Gear,m/shaft(23t)
|
23451-422-010 |
— | ||
|
7
|
7
23460-422-000
Gear,ct/shaft 3rd
|
23460-422-000 |
— | ||
|
8
|
8
23470-422-010
Gear,m/shaft(25t)
|
23470-422-010 |
— | ||
|
9
|
9
23481-422-000
Gear,ct/shaft 4th
|
23481-422-000 |
— | ||
|
10
|
10
23491-422-010
Gear,m/shaft(27t)
|
23491-422-010 |
— | ||
|
11
|
11
23495-422-000
Coll,spline,28x17
|
23495-422-000 |
— | ||
|
12
|
12
23501-422-000
Gear,ct/shaft 5th
|
23501-422-000 |
— | ||
|
14
|
14
90037-422-003 Bolt, special (10mm) |
90037-422-003 |
from US $5.18 |
||
|
15
|
15
90451-422-000 Washer (28mm) |
90451-422-000 |
US $7 |
||
|
16
|
16
90453-426-000
Washer (22.5mm)
|
90453-426-000 |
— | ||
|
17
|
17
90455-422-000
Washer,thrust,24
|
90455-422-000 |
— | ||
|
18
|
18
90456-422-000
Washer,lock,24mm
|
90456-422-000 |
— | ||
|
19
|
19
90459-422-000
Washer,10.2mm
|
90459-422-000 |
— | ||
|
20
|
20
90558-422-000
Plate,orifice
|
90558-422-000 |
— | ||
|
21
|
21
90601-422-000 Circlip (28mm) |
90601-422-000 |
from US $2.52 |
||
|
22
|
22
91006-422-004
B/brg rad n/com
|
91006-422-004 |
— | ||
|
23
|
23
91022-422-004
Needle brg
Use from Engine SN 2000232 |
91022-422-004 |
— | ||
|
24
|
24
91205-425-003 Oil seal,40x62x13 |
91205-425-003 |
from US $26.63 |
||
|
25
|
25
91305-422-000 O-ring (9.8x2.4) |
91305-422-000 |
from US $3.09 |
||
|
26
|
26
90602-428-000
Ring,set,62mm.
|
90602-428-000 |
— | ||
|
27
|
27
96220-60100 Roller6X10 |
96220-60100 |
US $0.22 |
