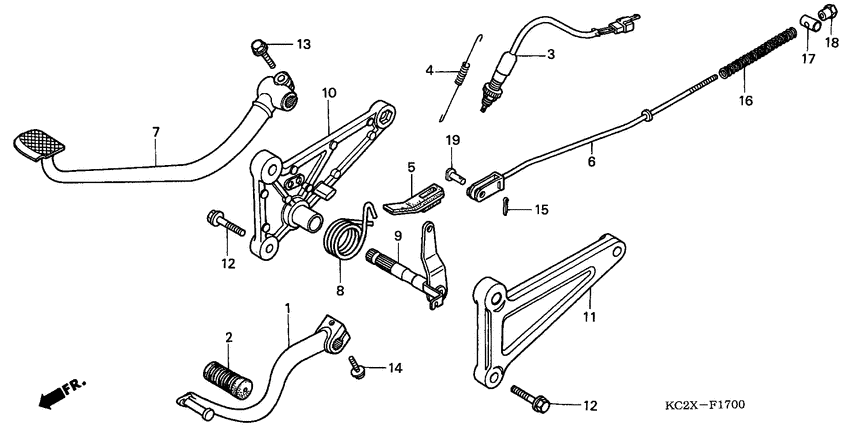

Pedal Diagram Honda CM125
- Year
- 1999
- Model code
- CM125CX
- Sales region
- Europe
- Frame
- JH2JC05A*XK000001 - JH2JC05A*XK099999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24701-KC2-770
Pedal,gear change
|
24701-KC2-770 |
— | ||
|
2
|
2
24781-KR3-770 Rubber, change pedal |
24781-KR3-770 |
from US $1.39 |
||
|
3
|
3
35350-KE6-830 Sw.assy.rr stop |
35350-KE6-830 |
US $14.80 |
||
|
4
|
4
35357-ML0-000 Spring, stop switch |
35357-ML0-000 |
US $5.41 |
||
|
5
|
5
43411-KB4-000
Cover,brake arm
|
43411-KB4-000 |
— | ||
|
6
|
6
43451-KC2-680
Rod, rr. brake
|
43451-KC2-680 |
— | ||
|
7
|
7
46500-KB4-000 Pedal,rr,brake |
46500-KB4-000 |
US $128.83 |
||
|
8
|
8
46514-KB4-000
Spg,brake pedal
|
46514-KB4-000 |
— | ||
|
9
|
9
46515-KB4-000
Shaft,brake pivot
|
46515-KB4-000 |
— | ||
|
10
|
10
50600-KB4-000 Holder,r,step |
50600-KB4-000 |
US $140.10 |
||
|
11
|
11
50700-KB4-000 Holder,l,step |
50700-KB4-000 |
US $135.87 |
||
|
12
|
12
90101-KC2-F00
Bolt
|
90101-KC2-F00 |
— | ||
|
13
|
13
90107-KT8-000 Bolt, flange (8x25) |
90107-KT8-000 |
from US $2.59 |
||
| replacement | |||||
|
13
|
13
90107-MZ5-000 Bolt, flange (8x25) |
90107-MZ5-000 |
from US $2.74 |
||
|
14
|
14
90118-KY1-000 Bolt, flange (6x20) |
90118-KY1-000 |
from US $2.15 |
||
|
15
|
15
94201-20120 PinSPLIT, 2.0X12 |
94201-20120 |
from US $0.37 |
||
|
16
|
16
9501473300 Spring a, brake rod |
9501473300 |
from US $0.59 |
||
| replacement | |||||
|
16
|
16
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
17
|
17
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
18
|
18
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
19
|
19
9501553000 Pin, joint |
9501553000 |
from US $1.48 |
||
