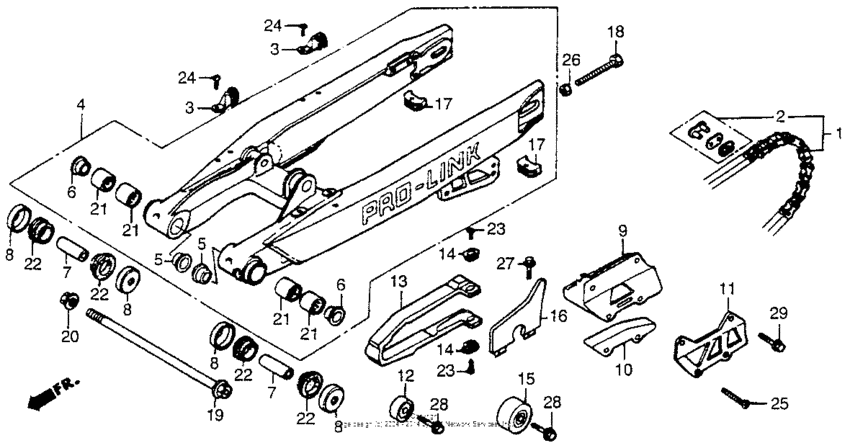

Swingarm 87 Diagram Honda CR250
- Year
- 1987
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*HC900016 - JH2ME030*HC905384
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
405W3-KA4-505 Chain, drive |
405W3-KA4-505 |
US $98.87 |
||
|
1
|
1
405W3-KA5-505
Chain, drive
(Optional). |
405W3-KA5-505 |
— | ||
|
2
|
2
40531-KA4-731 Master link |
40531-KA4-731 |
US $6.79 |
||
|
2
|
2
40531-KA4-732
Master link
|
40531-KA4-732 |
— | ||
|
3
|
3
43468-KS6-700 Guide, rr. |
43468-KS6-700 |
from US $9.12 |
||
|
4
|
4
52000-KS6-700
Fork assy.,rr.
|
52000-KS6-700 |
— | ||
|
5
|
5
52108-KS6-701
Bush, pivot thrust
|
52108-KS6-701 |
— | ||
|
6
|
6
52109-KA4-701 Bush, pivot thrust |
52109-KA4-701 |
from US $10.80 |
||
|
7
|
7
52141-KA3-830
Collar, rr. swingarm
|
52141-KA3-830 |
— | ||
|
8
|
8
52144-KA3-731 Cap, dust seal |
52144-KA3-731 |
from US $9.18 |
||
|
9
|
9
52146-KS6-700
Guide, chain
|
52146-KS6-700 |
— | ||
|
10
|
10
52147-KS6-701 Slider, chain guide |
52147-KS6-701 |
from US $17.41 |
||
|
11
|
11
52156-KS6-700
Plate, chain guide
|
52156-KS6-700 |
— | ||
|
12
|
12
52158-KA3-831 Roller |
52158-KA3-831 |
from US $46.23 |
||
|
13
|
13
52170-KS6-700
Slider, chain
|
52170-KS6-700 |
— | ||
|
14
|
14
52171-KA3-830 Washer, chain slider |
52171-KA3-830 |
from US $2.48 |
||
|
15
|
15
52175-KA3-831
Roller, chain
|
52175-KA3-831 |
— | ||
|
16
|
16
52180-KS6-700
Splash guard, chain
|
52180-KS6-700 |
— | ||
|
17
|
17
52190-KS6-700
Cap, rr.
|
52190-KS6-700 |
— | ||
|
18
|
18
90106-KS6-700 Bolt, hex. (8x49) |
90106-KS6-700 |
from US $4.65 |
||
|
19
|
19
90117-KA3-831
Bolt, rr. swingarm
|
90117-KA3-831 |
— | ||
|
20
|
20
90301-430-000
Nut, rr.
|
90301-430-000 |
— | ||
|
21
|
21
91071-KS6-004 Bearing, rr. |
91071-KS6-004 |
from US $9.61 |
||
|
22
|
22
91253-KA3-731 Dust seal |
91253-KA3-731 |
US $8.73 |
||
|
22
|
22
91253-KA4-701 Dust seal |
91253-KA4-701 |
from US $10.11 |
||
|
23
|
23
93500-050060H Screw, pan, 5x6 |
93500-050060H |
from US $0.37 |
||
|
24
|
24
93500-050-080-A ScrewPAN, 5X8 |
93500-050-080-A |
from US $0.38 |
||
|
25
|
25
93600-060400A Screw, flat (6x40) |
93600-060400A |
from US $0.52 |
||
|
26
|
26
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
27
|
27
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.62 |
||
|
28
|
28
96300-0803500 Bolt, flange (8x35) |
96300-0803500 |
from US $0.90 |
||
|
29
|
29
96300-0602000 Bolt, flange (6x20) |
96300-0602000 |
from US $0.59 |
