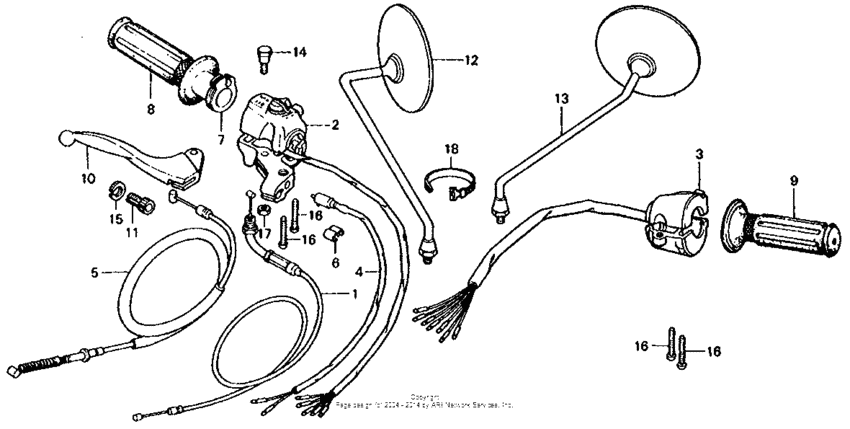

Handle lever + switch + cable k4-79 Diagram Honda CT70
- Year
- 1977
- Model code
- CT70 A
- Sales region
- USA
- Frame
- CT702600008 - CT702611967
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-125-770 Cable,throttle |
17910-125-770 |
US $30.87 |
||
|
2
|
2
35130-098-860
Switch assy.,kill
|
35130-098-860 |
— | ||
|
3
|
3
35200-102-772
Switch,winker
|
35200-102-772 |
— | ||
|
4
|
4
35340-GAN-620 Switch assy.,fr.s |
35340-GAN-620 |
from US $15.86 |
||
|
5
|
5
45450-128-P00
Cable fr brake
|
45450-128-P00 |
— | ||
|
7
|
7
53141-116-670 Pipe,throttle |
53141-116-670 |
US $13.38 |
||
|
7
|
7
53141-116-671 Pipe, throttle grip |
53141-116-671 |
US $14.21 |
||
|
8
|
8
53165-116-670 Grip,r-handle |
53165-116-670 |
from US $11.95 |
||
|
9
|
9
53166-116-670 Grip,l-handle |
53166-116-670 |
from US $11.97 |
||
|
10
|
10
53175-KY0-980 Lever, r. handlebar |
53175-KY0-980 |
from US $26.91 |
||
|
11
|
11
53192-203-000 Bolt |
53192-203-000 |
from US $0.52 |
||
|
12
|
12
88110-329-730
Mirror,r-back
Use from Frame SN 2610318 |
88110-329-730 |
— | ||
|
12
|
12
88110-098-405
Mirror back
Use up to Frame SN 2610317 |
88110-098-405 |
— | ||
|
13
|
13
88220-329-730 Mirror, l.Use from Frame SN 2610318 |
88220-329-730 |
US $32.25 |
||
|
13
|
13
88110-098-405
Mirror back
Use up to Frame SN 2610317 |
88110-098-405 |
— | ||
|
14
|
14
90114-310-000 Bolt |
90114-310-000 |
from US $5.18 |
||
|
15
|
15
90321-315-670 Nut, fixing |
90321-315-670 |
from US $5.83 |
||
|
16
|
16
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
|
17
|
17
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
18
|
18
9501462100 Band b1, wire |
9501462100 |
from US $1.18 |
