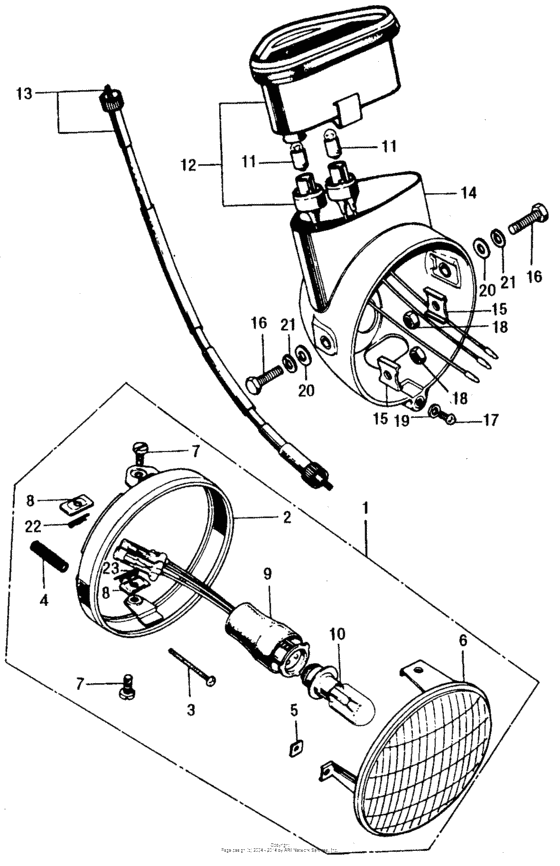

Headlight + speedometer Diagram Honda CT70
- Model code
- CT70H A
- Sales region
- USA
- Frame
- CT70H100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-089-671
Light,head
|
33100-089-671 |
— | ||
|
2
|
2
33101-028-672
Rim, head light
|
33101-028-672 |
— | ||
|
3
|
3
33102-041-003 Screw,head light |
33102-041-003 |
from US $1.77 |
||
|
4
|
4
33107-030-003 Spring |
33107-030-003 |
from US $2.01 |
||
|
5
|
5
33117-041-003 Nut, beam adj. |
33117-041-003 |
from US $1.51 |
||
|
6
|
6
33120-089-671
Unit,head light
|
33120-089-671 |
— | ||
|
7
|
7
33125-292-670 Screw,unit holder |
33125-292-670 |
from US $4.51 |
||
|
8
|
8
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $2.43 |
||
|
9
|
9
33130-028-671
Socket,head light
|
33130-028-671 |
— | ||
|
10
|
10
34901-001-025 Bulb, headlight |
34901-001-025 |
from US $6.51 |
||
|
11
|
11
34908-230-000 Bulb,speedometer |
34908-230-000 |
from US $2.87 |
||
|
12
|
12
37200-098-771
Speedometer assy
|
37200-098-771 |
— | ||
|
13
|
13
44830-126-651 Cable, speedometer |
44830-126-651 |
US $17 |
||
|
14
|
14
61301-056-671AZ
Case *pb2c*
|
61301-056-671AZ |
— | ||
|
14
|
14
61301-056-671DD
Case *yr1c*
|
61301-056-671DD |
— | ||
|
14
|
14
61301-056-672DF
Case *g2c*
|
61301-056-672DF |
— | ||
|
15
|
15
61303-229-000 Washer,light case |
61303-229-000 |
from US $2.16 |
||
|
16
|
16
92101-08025-0A Bolt, hex., 8x25 |
92101-08025-0A |
from US $0.59 |
||
|
17
|
17
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
18
|
18
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
19
|
19
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.36 |
||
|
20
|
20
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.27 |
||
|
21
|
21
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
22
|
22
9425105000 Pin, lock, 5mm |
9425105000 |
from US $0.47 |
