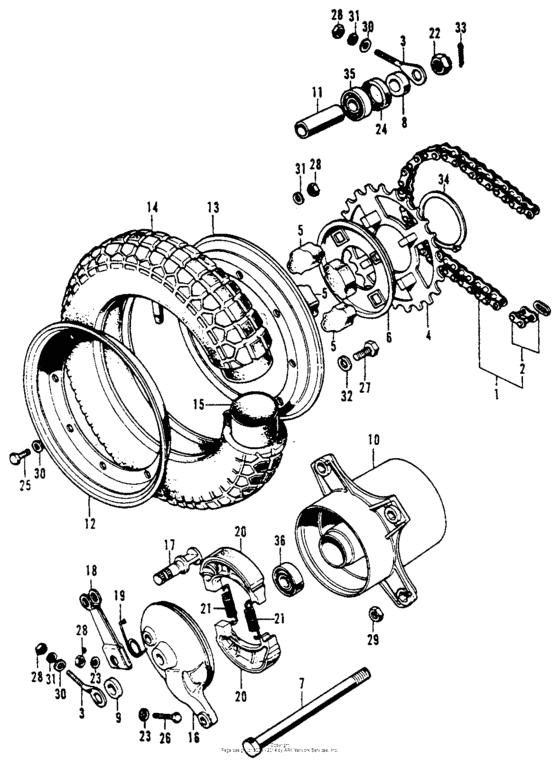

Rear wheel Diagram Honda CT70
- Model code
- CT70H A
- Sales region
- USA
- Frame
- CT70H100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
405W3-179-505 Chain,drive |
405W3-179-505 |
from US $23.27 |
||
|
2
|
2
40531-098-003 Master link |
40531-098-003 |
from US $3.40 |
||
|
3
|
3
9501410010 Adjuster s, r. chain |
9501410010 |
from US $1.87 |
||
|
4
|
4
41201-126-930
Sprocket,driven
|
41201-126-930 |
— | ||
|
5
|
5
41241-051-000 Damper, rr. wheel |
41241-051-000 |
from US $4.28 |
||
|
6
|
6
41245-051-000 Cover, rr |
41245-051-000 |
from US $4.07 |
||
|
7
|
7
44301-074-000
Axle,front wheel
Use up to Frame SN 143000 |
44301-074-000 |
— | ||
|
7
|
7
42301-098-000
Axle,rear wheel
Use from Frame SN 143001 |
42301-098-000 |
— | ||
|
8
|
8
42304-098-000 Collar,rear wheel |
42304-098-000 |
from US $4.29 |
||
|
9
|
9
42313-098-000 Collar,panel side |
42313-098-000 |
from US $4 |
||
|
10
|
10
42601-098-010ZB
Hub comp.*nh-35m*
Use up to Frame SN 156720 |
42601-098-010ZB |
— | ||
|
11
|
11
42620-098-000 Collar,rear,axle |
42620-098-000 |
from US $6.33 |
||
|
12
|
12
42701-098-853ZA
Rim,wheel*nh-35m*
|
42701-098-853ZA |
— | ||
|
13
|
13
42702-098-853ZA
Rim,wheel*nh-35m*
|
42702-098-853ZA |
— | ||
|
14
|
14
42711-098-671
Tire (4.00-10) (BS)
|
42711-098-671 |
— | ||
|
14
|
14
42711-098-673 TIRE (4.00-10) (Nitto) |
42711-098-673 |
US $98.91 |
||
|
15
|
15
42712-GC8-005 Tube, tire (3.50-10) |
42712-GC8-005 |
US $13.01 |
||
|
15
|
15
42712-098-691 Tube,wheel |
42712-098-691 |
US $26.11 |
||
|
16
|
16
43100-098-950
Panel,rear brake
|
43100-098-950 |
— | ||
|
17
|
17
43141-098-000
Cam,rear,brake
|
43141-098-000 |
— | ||
|
18
|
18
43410-098-000 Arm,rr.brake |
43410-098-000 |
US $19.30 |
||
|
19
|
19
43413-098-670
Spring,return
|
43413-098-670 |
— | ||
|
20
|
20
45120-001-010
Shoe, brake
|
45120-001-010 |
— | ||
|
21
|
21
45133-028-000 Spring, brake shoe |
45133-028-000 |
from US $1.77 |
||
|
22
|
22
90305-439-930 Nut, fr. axleUse from Frame SN 143001 |
90305-439-930 |
from US $4.24 |
||
|
22
|
22
90353-045-000 Nut,self lockUse up to Frame SN 143000 |
90353-045-000 |
from US $4.44 |
||
|
23
|
23
90525-001-000 WasherRR. BRAKE ARM |
90525-001-000 |
from US $1.70 |
||
|
24
|
24
90753-051-003 Oil seal (26x37x6) |
90753-051-003 |
from US $5.48 |
||
|
25
|
25
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
25
|
25
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.47 |
||
|
25
|
25
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.47 |
||
|
26
|
26
92000-06036 Bolt,hex 6x36 |
92000-06036 |
from US $0.52 |
||
| replacement | |||||
|
26
|
26
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
26
|
26
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
27
|
27
92101-08025-0A Bolt, hex., 8x25 |
92101-08025-0A |
from US $0.59 |
||
|
28
|
28
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
29
|
29
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
30
|
30
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.36 |
||
|
31
|
31
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.36 |
||
|
32
|
32
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
33
|
33
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
33
|
33
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.49 |
||
|
33
|
33
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.49 |
||
|
34
|
34
94510-50000 Circlip,50mm |
94510-50000 |
US $1.48 |
||
|
35
|
35
96140-630-101-0
Bearing (6301u)
|
96140-630-101-0 |
— | ||
|
36
|
36
96140-630-101-0
Bearing (6301u)
|
96140-630-101-0 |
— | ||
