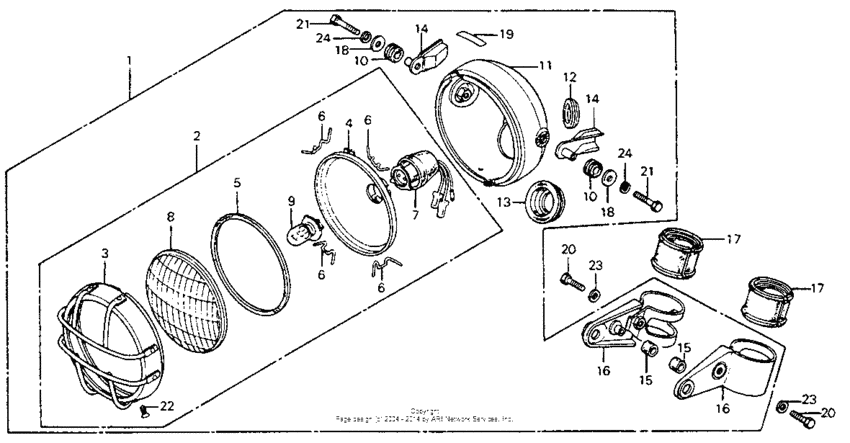

Headlight + headlight case 76-77 Diagram Honda MR175
- Year
- 1977
- Model code
- MR175 A
- Sales region
- USA
- Frame
- MR1752100001 - MR1752102110
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06600-373-000 Hdlt kit *nh42mc*(Optional). |
06600-373-000 |
from US $673.52 |
||
|
2
|
2
33100-373-770
Headlight assy
|
33100-373-770 |
— | ||
|
3
|
3
33101-373-770
Rim, headlight
|
33101-373-770 |
— | ||
|
4
|
4
33104-028-003
Reflector, headlight
|
33104-028-003 |
— | ||
|
5
|
5
33105-028-003 Packing, headlight lens |
33105-028-003 |
from US $3.26 |
||
|
6
|
6
33108-028-013 Spring, unit holder (stanley) |
33108-028-013 |
from US $1.94 |
||
|
7
|
7
33110-121-003
Socket,head light
|
33110-121-003 |
— | ||
|
8
|
8
33121-028-013 Lens,head light |
33121-028-013 |
US $14.14 |
||
|
9
|
9
34901-030-003 Bulb head light |
34901-030-003 |
from US $6.79 |
||
|
9
|
9
34901-087-640 Blub,headlight |
34901-087-640 |
from US $4.74 |
||
|
10
|
10
61103-357-000 Rubber, fr. fender mounting |
61103-357-000 |
from US $0.14 |
||
|
11
|
11
61301-373-770ZB
Case *nh1*
|
61301-373-770ZB |
— | ||
|
12
|
12
61303-118-670
Grommet,headlight
|
61303-118-670 |
— | ||
|
13
|
13
61305-373-770
Grom, headlight case
|
61305-373-770 |
— | ||
|
14
|
14
61308-373-770
Stay
|
61308-373-770 |
— | ||
|
15
|
15
61309-373-770
Rubber
|
61309-373-770 |
— | ||
|
16
|
16
61311-373-770ZA
Stay *nh35m*
|
61311-373-770ZA |
— | ||
|
17
|
17
61313-373-671
Rubber,lt.stay
|
61313-373-671 |
— | ||
|
18
|
18
77302-124-000 WasherSEAT MOUNTING |
77302-124-000 |
from US $2 |
||
|
19
|
19
87560-373-780ZA
Label, caution *nh0*
|
87560-373-780ZA |
— | ||
|
20
|
20
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.19 |
||
|
21
|
21
92101-06028-0A Bolt, hex. (6x28) |
92101-06028-0A |
from US $0.51 |
||
|
22
|
22
93700-050-100-B Screw cross 5x10 |
93700-050-100-B |
US $0.55 |
||
|
23
|
23
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.36 |
||
|
24
|
24
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.36 |
