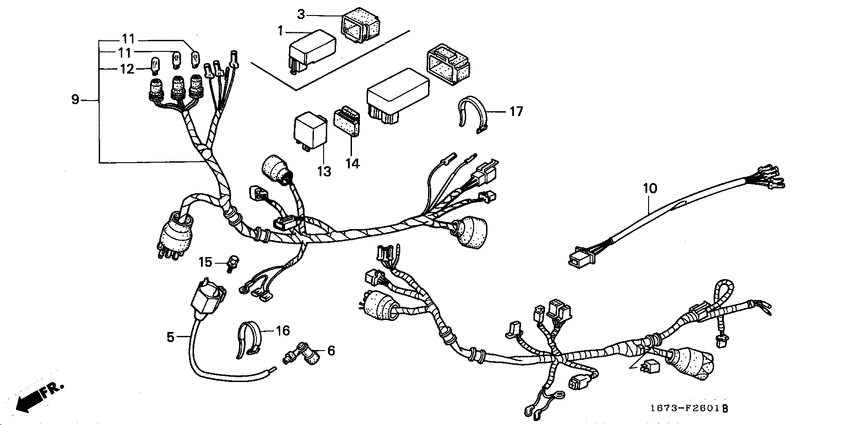

Wire harness/ ignition coil (2) Diagram Honda MT50
- Year
- 1990
- Model code
- MT50SL
- Sales region
- Netherlands
- Frame
- AD015501926 - AD015509222
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30400-166-006
C.d.i. unit
|
30400-166-006 |
— | ||
|
1
|
1
30400-166-015 C.d.i.unit |
30400-166-015 |
US $214.02 |
||
|
1
|
1
30400-166-018
C.d.i unit
|
30400-166-018 |
— | ||
|
3
|
3
30401-961-000 Rubber, cdi unit |
30401-961-000 |
from US $5.33 |
||
|
5
|
5
30510-GJ8-000 Coil,comp ign |
30510-GJ8-000 |
US $58.15 |
||
|
6
|
6
30700-155-153
Cap,suppressor
- 5505999 |
30700-155-153 |
— | ||
| replacement | |||||
|
6
|
6
30700-155-163
Cap assy,noise
- 5505999 |
30700-155-163 |
— | ||
|
6
|
6
30700-155-163
Cap assy,noise
5506000 - |
30700-155-163 |
— | ||
|
9
|
9
32100-167-860
Harness,wire
|
32100-167-860 |
— | ||
|
10
|
10
32101-167-010
Harn.a,sub wire
|
32101-167-010 |
— | ||
|
11
|
11
34902-GA7-008 Bulb,wedge base |
34902-GA7-008 |
from US $2.52 |
||
|
12
|
12
34908-GA7-008 Bulb,wedge base |
34908-GA7-008 |
from US $2.22 |
||
|
13
|
13
38301-167-861
Relay comp,winker
|
38301-167-861 |
— | ||
|
14
|
14
38306-GE7-000 Suspension |
38306-GE7-000 |
from US $4.66 |
||
|
15
|
15
90189-MG3-000 Bolt,washer 5x20 |
90189-MG3-000 |
from US $2.59 |
||
|
15
|
15
92100-05020-0A BoltHEX., 5X20 |
92100-05020-0A |
US $0.37 |
||
|
16
|
16
9501461300 Band a3, cable |
9501461300 |
from US $1.24 |
||
|
17
|
17
9501462100 Band b1, wire |
9501462100 |
from US $1.18 |
||
