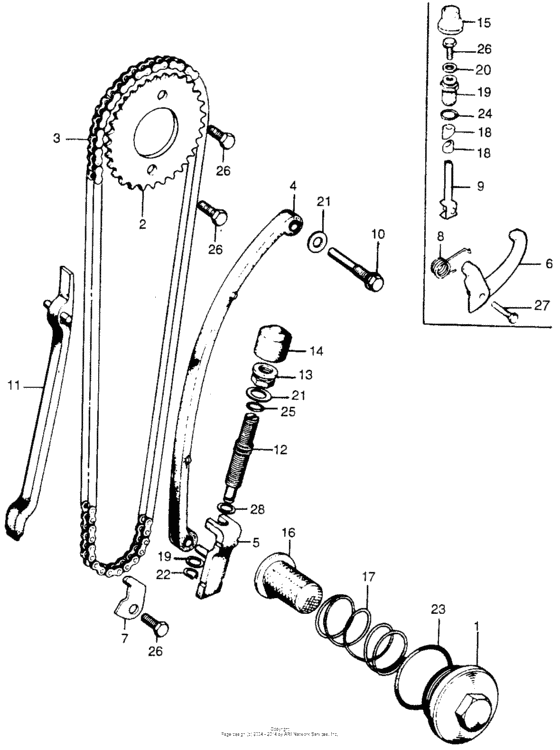

Cam chain tensioner + oil filter screen Diagram Honda XL100
- Model code
- XL100K1 A
- Sales region
- USA
- Frame
- XL1001100004 -
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12361-383-000 Cap, tappet adjusting hole |
12361-383-000 |
from US $5.77 |
||
|
2
|
2
14321-437-000
Sprocket,cam
|
14321-437-000 |
— | ||
|
3
|
3
14401-958-003 Chain, cam (100l) |
14401-958-003 |
from US $34.42 |
||
|
4
|
4
14500-324-000
Tensioner,chain
|
14500-324-000 |
— | ||
|
5
|
5
14510-355-000
Hinge,tensioner
|
14510-355-000 |
— | ||
|
7
|
7
14514-324-000
Plate,chain set
|
14514-324-000 |
— | ||
|
10
|
10
14535-107-010
Bolt,pivot
|
14535-107-010 |
— | ||
|
11
|
11
14550-107-010
Guide,chain,cam
|
14550-107-010 |
— | ||
|
13
|
13
14563-107-000
Nut,adjusting
|
14563-107-000 |
— | ||
|
14
|
14
14564-107-000
Cap,adjust
|
14564-107-000 |
— | ||
|
16
|
16
15421-107-000 Screen, oil filter |
15421-107-000 |
from US $6.66 |
||
|
17
|
17
15426-107-000 Spring, oil filter screen |
15426-107-000 |
from US $3.28 |
||
|
21
|
21
90481-035-000 Washer, 8mm |
90481-035-000 |
from US $1.62 |
||
|
22
|
22
90605-355-000 E-ring6MM |
90605-355-000 |
US $2.22 |
||
|
23
|
23
91303-107-000 O-ring, 35x3 |
91303-107-000 |
from US $2.45 |
||
| replacement | |||||
|
23
|
23
91303-KK3-830 O-ring (35x3) |
91303-KK3-830 |
from US $3.03 |
||
|
25
|
25
91352-SA5-952 O-ring7.8X1.9 (NOK) |
91352-SA5-952 |
from US $1.86 |
||
|
26
|
26
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
28
|
28
90417-360-000 Washer, drum stopper |
90417-360-000 |
from US $2.07 |
||
