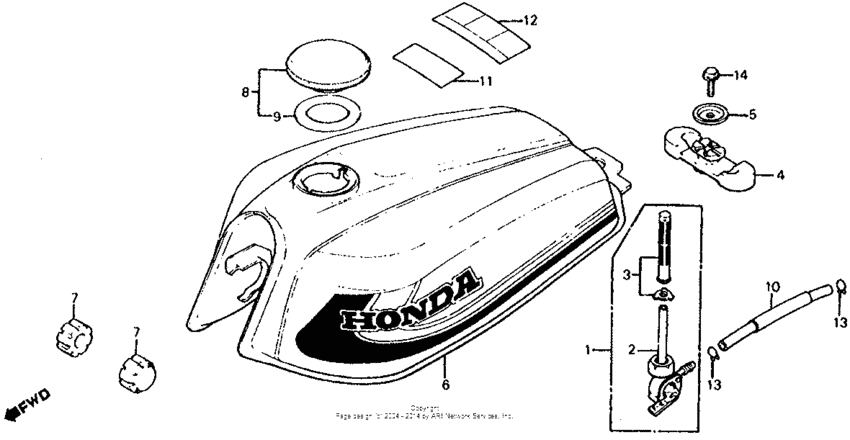

Fuel tank 79-80 Diagram Honda XL100
- Year
- 1979
- Model code
- XL100S A
- Sales region
- USA
- Frame
- HD015002640 - HD015012036
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-KCP-J01 Cock assy,fuel |
16950-KCP-J01 |
from US $44.27 |
||
|
2
|
2
16951-377-703 Body comp.,cock |
16951-377-703 |
US $31.82 |
||
|
3
|
3
16953-155-305
Screen set
|
16953-155-305 |
— | ||
|
4
|
4
17509-437-000 Rubber,tank rr. |
17509-437-000 |
US $13.26 |
||
|
5
|
5
17515-437-000 Washer,tank rr. |
17515-437-000 |
US $6.51 |
||
|
6
|
6
17520-437-000ZA
Tank,fuel *nh-24*
|
17520-437-000ZA |
— | ||
|
6
|
6
17520-437-000ZB
Tank,fuel *r-23*
|
17520-437-000ZB |
— | ||
|
6
|
6
17520-437-000ZC
Tank,fuel*pb-105*
|
17520-437-000ZC |
— | ||
|
7
|
7
17611-437-000 Rubber, fr. tank |
17611-437-000 |
from US $3.75 |
||
|
8
|
8
17620-402-010
Cap comp.,fuel fi
Use up to Frame SN 5007308 |
17620-402-010 |
— | ||
| replacement | |||||
|
8
|
8
17620-402-020 CAP, FUEL FILLERUse up to Frame SN 5007308 |
17620-402-020 |
US $15.50 |
||
|
9
|
9
17631-329-003
Packing, fuel filler cap (39x58x3)
|
17631-329-003 |
— | ||
| replacement | |||||
|
9
|
9
17631-329-013 PACKING, FUEL FILLER |
17631-329-013 |
US $2.15 |
||
|
10
|
10
17681-KE4-405
Tube, fuel
|
17681-KE4-405 |
— | ||
|
11
|
11
87510-147-670ZB
Label *nh0*
|
87510-147-670ZB |
— | ||
|
11
|
11
87510-147-670ZA Label *nh1* |
87510-147-670ZA |
from US $3.16 |
||
|
12
|
12
87560-375-680ZF Mark (type-w) Remember (Clear-white) |
87560-375-680ZF |
from US $3.47 |
||
|
12
|
12
87560-375-680ZE Mark (type-b) Remember (Black) |
87560-375-680ZE |
US $3.77 |
||
|
13
|
13
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.34 |
||
|
14
|
14
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.56 |
||
