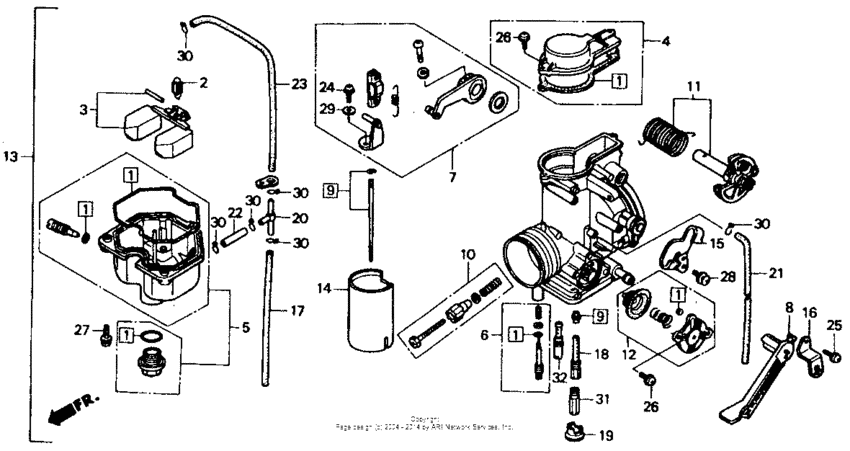

Carburetor 88-92 Diagram Honda XR600
- Year
- 1988
- Model code
- XR600R A
- Sales region
- USA
- Frame
- JH2PE040*JK300009 - JH2PE040*JK301886
- Engine Capacity
- 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-MAG-L01 Gasket set |
16010-MAG-L01 |
from US $21.45 |
||
|
2
|
2
16011-KA3-741 Valve set, float |
16011-KA3-741 |
from US $35.22 |
||
|
3
|
3
16013-KCY-670 Float set |
16013-KCY-670 |
from US $35.09 |
||
|
4
|
4
16014-MN1-671
Top set
|
16014-MN1-671 |
— | ||
|
5
|
5
16015-MAG-L01 Chamber set, float |
16015-MAG-L01 |
US $93.94 |
||
|
5
|
5
16015-MN1-671 Chamber set, float |
16015-MN1-671 |
from US $93.94 |
||
| replacement | |||||
|
5
|
5
16015-MAG-L01 Chamber set, float |
16015-MAG-L01 |
US $93.94 |
||
|
6
|
6
16016-402-004 Screw set a |
16016-402-004 |
from US $15.64 |
||
|
7
|
7
16018-MN1-671
Arm set, link
|
16018-MN1-671 |
— | ||
| replacement | |||||
|
7
|
7
16018-MAG-L01
Arm set, link
|
16018-MAG-L01 |
— | ||
|
8
|
8
16019-KCE-671
Lever, choke
|
16019-KCE-671 |
— | ||
|
9
|
9
16027-MN1-671
Needle set, jet
|
16027-MN1-671 |
— | ||
|
10
|
10
16028-MN1-671
Screw set b
|
16028-MN1-671 |
— | ||
|
11
|
11
16032-MAG-L01 Link set, throttle |
16032-MAG-L01 |
US $73.98 |
||
|
12
|
12
16048-KB7-901 Valve set, air cut |
16048-KB7-901 |
from US $84.25 |
||
|
13
|
13
16100-MN1-771
Carburetor assy.
|
16100-MN1-771 |
— | ||
|
14
|
14
16112-MN1-671
Valve, throttle
|
16112-MN1-671 |
— | ||
|
15
|
15
16119-MN1-671
Stay, wire
|
16119-MN1-671 |
— | ||
|
16
|
16
16119-429-771 Plate |
16119-429-771 |
from US $7.55 |
||
|
17
|
17
16199-KG4-405 Tube |
16199-KG4-405 |
from US $6.51 |
||
|
18
|
18
16165-KEG-961 Holder, needle jet |
16165-KEG-961 |
from US $18.36 |
||
|
18
|
18
16165-402-004 Holder,needle jet |
16165-402-004 |
from US $18.09 |
||
| replacement | |||||
|
18
|
18
16165-KEG-961 Holder, needle jet |
16165-KEG-961 |
from US $18.36 |
||
|
19
|
19
16168-382-014 Holder, jet |
16168-382-014 |
from US $6.81 |
||
|
20
|
20
16180-195-731 Joint |
16180-195-731 |
from US $6.81 |
||
|
21
|
21
16198-KN5-405 Tube, air vent |
16198-KN5-405 |
from US $4.44 |
||
|
22
|
22
16199-428-405 Tube |
16199-428-405 |
from US $3.23 |
||
|
23
|
23
16199-KR6-004 Tube |
16199-KR6-004 |
from US $6.36 |
||
|
24
|
24
93500-030080H Screw, pan, 3x8 |
93500-030080H |
from US $0.37 |
||
|
25
|
25
93892-040-100-8 Screw-washer4X10 |
93892-040-100-8 |
from US $0.49 |
||
|
26
|
26
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
||
|
27
|
27
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.49 |
||
|
28
|
28
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
29
|
29
94111-03800 WasherSPRING, 3MM |
94111-03800 |
from US $0.37 |
||
|
30
|
30
9500202650 Clip, tube (b6.5) |
9500202650 |
from US $0.47 |
||
|
31
|
31
99101-3571520 Jet, main (#152)(Optional). |
99101-3571520 |
US $7 |
||
|
31
|
31
99113-GHB1650 Jet, main (#165) |
99113-GHB1650 |
from US $6.66 |
||
|
31
|
31
99113-GHB1500 Jet, main (#150)(Optional). |
99113-GHB1500 |
from US $7.33 |
||
|
31
|
31
99113-GHB1550 Jet, main (#155)(Optional). |
99113-GHB1550 |
from US $6.66 |
||
|
31
|
31
99113-GHB1580 Jet, main (#158)(Optional). |
99113-GHB1580 |
from US $6.66 |
||
|
31
|
31
99113-GHB1600 Jet, main (#160)(Optional). |
99113-GHB1600 |
from US $6.66 |
||
|
31
|
31
99113-GHB1620 Jet, main (#162)(Optional). |
99113-GHB1620 |
from US $6.66 |
||
|
31
|
31
99113-GHB1680 Jet, main (#168)(Optional). |
99113-GHB1680 |
from US $7.33 |
||
|
31
|
31
99101-3571700 Jet, main (#170)(Optional). |
99101-3571700 |
from US $6.66 |
||
|
31
|
31
99101-3571720 Jet, main (#172)(Optional). |
99101-3571720 |
from US $7 |
||
|
31
|
31
99101-3571750 Jet, main (#175)(Optional). |
99101-3571750 |
from US $7 |
||
|
31
|
31
99113-GHB1700 Jet, main (#170)(Optional). |
99113-GHB1700 |
from US $6.66 |
||
|
31
|
31
99113-GHB1720 Jet, main (#172)(Optional). |
99113-GHB1720 |
from US $6.66 |
||
| replacement | |||||
|
31
|
31
99101-3571720 Jet, main (#172)(Optional). |
99101-3571720 |
from US $7 |
||
|
32
|
32
99103-4370600 Jet, slow (#60) |
99103-4370600 |
US $9.38 |
||
|
32
|
32
99103-4370620
Jet, slow (#62)
(Optional). |
99103-4370620 |
— | ||
|
32
|
32
99103-KCY0580 Jet, slow (#58)(Optional). |
99103-KCY0580 |
from US $6.51 |
||
|
32
|
32
99103-4370650 Jet, slow (#65)(Optional). |
99103-4370650 |
from US $6.51 |
||
|
32
|
32
99103-4370680
Jet, slow (#68)
(Optional). |
99103-4370680 |
— | ||
