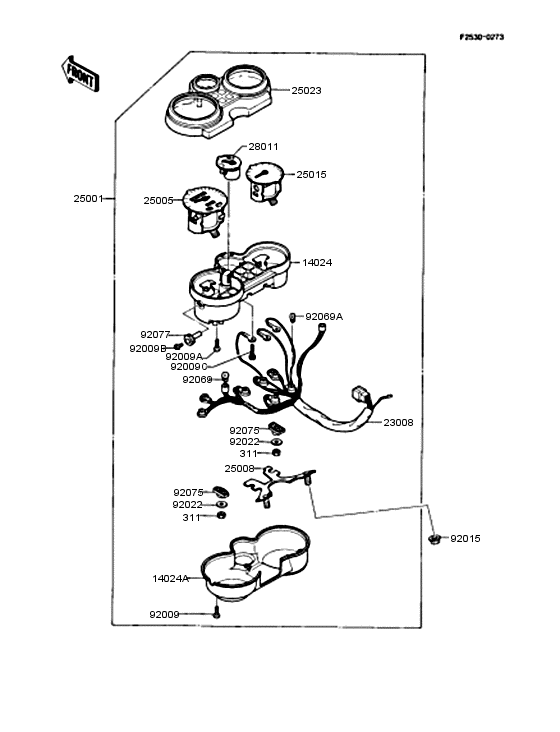

Meters Diagram Kawasaki AR125
- Year
- 1990
- Colour
- Ebony (H8)
- Model code
- AR125-A8
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- AR125A 017001 -
- Engine
- AR125AE 017001 -
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
311
311B0500
NUT-HEX,5MM
ロツカク ナツト |
311B0500 |
— | ||
| replacement | |||||
|
311
|
311
311AA0500 NUT-HEX,5MMロツカク ナツト |
311AA0500 |
from US $0.63 |
||
|
14024
|
14024
14024-1288
Cover,meter case
カバ-，メ-タ ケ-ス |
14024-1288 |
— | ||
|
14024A
|
14024A
14025-1919 COVER,METER CASE,LWRカバ-，メ-タ ケ-ス，LWR |
14025-1919 |
from US $44.16 |
||
|
23008
|
23008
23008-1312
Socket-assy,meter
ソケツトアツシ，メ-タ |
23008-1312 |
— | ||
|
25001
|
25001
25001-1645
メ-タアツシ，kph
メ-タアツシ，KPH |
25001-1645 |
— | ||
|
25005
|
25005
25005-1325
スピ-ドメ-タ，kph
スピ-ドメ-タ，KPH |
25005-1325 |
— | ||
|
25008
|
25008
25008-1112 BRACKET METERブラケツト(メ-タ) |
25008-1112 |
US $45.55 |
||
|
25015
|
25015
25015-1258
Tachometer,x1000r/min
タコメ-タ，X1000R/MIN |
25015-1258 |
— | ||
|
25023
|
25023
25023-1144
Cover-meter case,upp
カバ-(メ-タケ-ス)，UPP |
25023-1144 |
— | ||
|
28011
|
28011
28011-1085
Meter,temp
メ-タ，テンプ |
28011-1085 |
— | ||
|
92009
|
92009
92009-1158 SCREW,4X16,BLACKスクリユ-，4X16，ブラツク |
92009-1158 |
from US $2.24 |
||
|
92009A
|
92009A
92009-1163 SCREW,TAPPING,4X16スクリユ-，タツピング，4X16 |
92009-1163 |
from US $2.42 |
||
|
92009B
|
92009B
92009-1172 SCREW,2X6,BLACKスクリユ-，2X6，ブラツク |
92009-1172 |
from US $1.63 |
||
|
92009C
|
92009C
92009-1293 SCREW,3X22スクリユ-，3X22 |
92009-1293 |
from US $2.58 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
ナツト，フランジ，6MM |
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMナツト，フランジ，6MM |
92015-1367 |
from US $2.52 |
||
|
92022
|
92022
92022-263 WASHER,PLAIN,6MMワツシヤ，5.2X16X1.2 |
92022-263 |
from US $1.10 |
||
|
92069A
|
92069A
92069-1059 BULB,12V 1.7Wバルブ，12V 1.7W |
92069-1059 |
from US $3.02 |
||
|
92069
|
92069
92069-1007 BULB,12V3.4Wバルブ，12V 3.4W |
92069-1007 |
from US $3.02 |
||
|
92075
|
92075
92075-1581 DAMPER,METER BRACKETダンパ，メ-タ ブラケツト |
92075-1581 |
from US $3.18 |
||
|
92077
|
92077
92077-1056 KNOB,METERノブ，メ-タ |
92077-1056 |
from US $6.50 |
||
