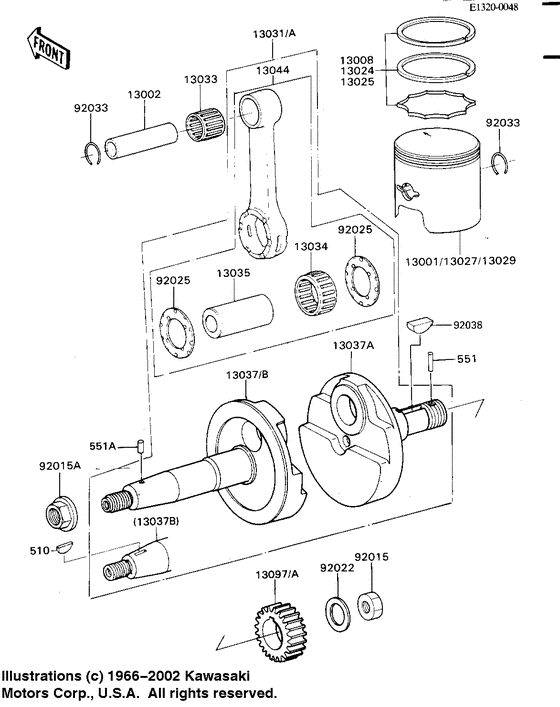

Crankshaft/piston Diagram Kawasaki KD80
- Year
- 1990
- Model code
- KD80-N1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KD80-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13001
|
13001
13001-1281
PISTON-ENGINE,STD
Piston-engine,std; |
13001-1281 |
— | ||
|
13002
|
13002
13002-1076 PIN-PISTON |
13002-1076 |
from US $11.49 |
||
|
13008
|
13008
13008-1123 RING-SET-PISTON,STDRing-set-piston,std; |
13008-1123 |
from US $35.84 |
||
|
13024
|
13024
13024-1084
RING-SET-PISTON LL,O/S 1.0
Ring-set-piston ll,o/s 1.00; |
13024-1084 |
— | ||
|
13025
|
13025
13025-1098
RING-SET-PISTON L,O/S 0.50
Ring-set-piston l,o/s 0.50; |
13025-1098 |
— | ||
|
13027
|
13027
13027-1155
PISTON-ENGINE LL,O/S 1.00
Piston-engine ll,o/s 1.00; |
13027-1155 |
— | ||
|
13029
|
13029
13029-1178
PISTON-ENGINE L,O/S 0.50
Piston-engine l,o/s 0.50; |
13029-1178 |
— | ||
|
13031A
|
13031A
13031-1295
CRANKSHAFT-COMP
|
13031-1295 |
— | ||
|
13033
|
13033
13033-1009 BEARING-SMALL END |
13033-1009 |
from US $15.96 |
||
|
13034
|
13034
13034-1029 BEARING-BIG END,PK18XBearing-big end,pk18x24x11.8x3; |
13034-1029 |
from US $22.23 |
||
|
13035
|
13035
13035-1055
PIN-CRANK
|
13035-1055 |
— | ||
| replacement | |||||
|
13035
|
13035
13035-1073
PIN-CRANK
|
13035-1073 |
— | ||
|
13037A
|
13037A
13037-1325
CRANKSHAFT,RH
Crankshaft,rh; |
13037-1325 |
— | ||
|
13037B
|
13037B
13037-1376
CRANKSHAFT,LH
Crankshaft,lh; |
13037-1376 |
— | ||
|
13044
|
13044
13044-5020
SET-CONNECTING ROD
|
13044-5020 |
— | ||
|
13097A
|
13097A
13097-1228
GEAR-PRIMARY SPUR
Gear-primary spur,21t; |
13097-1228 |
— | ||
|
92015
|
92015
92015-072 NUT,LOCK,16MMNut,lock,16mm; |
92015-072 |
from US $3.63 |
||
|
92015A
|
92015A
92015-077
NUT,10MM
Nut,flanged,10mm; |
92015-077 |
— | ||
| replacement | |||||
|
92015A
|
92015A
92015-1415 NUT,10MMNut,flanged,10mm; |
92015-1415 |
from US $2.58 |
||
|
92022
|
92022
92022-1356 WASHER,16.3X29X1.75Washer,16.3x29x1.75; |
92022-1356 |
from US $3.63 |
||
|
92025
|
92025
92025-1199
SHIM,CRANK SHAFT
Shim,crank shaft; |
92025-1199 |
— | ||
|
92033
|
92033
92036-007 CIRCLIP, PISTON PINRing-snap,piston pin; |
92036-007 |
from US $2.10 |
||
|
92038
|
92038
92038-003 WOODRUFF KEY PRY PINIKey,woodruff; |
92038-003 |
from US $2.87 |
||
|
510
|
510
510A3200 WOODRUFF KEY |
510A3200 |
from US $1.87 |
||
|
551
|
551
551A0212
PIN-DOWEL,2X12
Pin-dowel,2x12; |
551A0212 |
— | ||
