	Description	OEM Part #	Price
130	130 130G0835 BOLT-FLANGED,8X35 Bolt,flanged,8x35;	130G0835	—
	replacements
130	130 130CA0835 BOLT-FLANGED Bolt,flanged,8x35;	130CA0835	from US $1.20
130	130 130BA0835 BOLT-FLANGED,8X35 Bolt,flanged,8x35;	130BA0835	from US $0.91
130A	130A 130G0850 BOLT-FLANGED,8X50 Bolt,flanged,8x50;	130G0850	US $1.54
	replacement
130A	130A 130BA0850 BOLT-FLANGED,8X50 Bolt,flanged,8x50;	130BA0850	from US $1.36
184	184 184G0855 BOLT-UPSET-WP-SMALL	184G0855	US $3.24
220	220 220B0316 SCREW-PAN-CROS	220B0316	US $0.44
220A	220A 220B0408 SCREW-PAN-CROS Screw pan head 4x8;	220B0408	—
	replacement
220A	220A 220AA0408 SCREW-PAN-CROS Screw pan head 4x8;	220AA0408	from US $0.70
311	311 311G0800 NUT 8MM Nut 8mm;	311G0800	US $2.35
	replacement
311	311 311BA0800 NUT,8MM Nut 8mm;	311BA0800	from US $0.91
410	410 410B0800 WASHER-PLAIN-SMALL,8M Washer plain 8mm;	410B0800	—
	replacement
410	410 410AA0800 WASHER-PLAIN-SMALL,8M Washer plain 8mm;	410AA0800	from US $0.56
11009	11009 11009-1127 GASKET,FORK CYLINDER Gasket,fork cylinder;	11009-1127	from US $3.57
11009A	11009A 44045002 GASKET FORK DRAIN PLG Gasket fork drain plg;	44045002	from US $3.08
11012	11012 11012-1391 CAP,VALVE AIR Cap,valve air;	11012-1391	from US $3.47
44001A	44001A 44001-1513 FORK-FRONT	44001-1513	US $1,927.28
44005A	44005A 44005-1209 PIPE-LEFT FORK OUTER	44005-1209	US $358.79
44006	44006 44006-1123 PIPE-RIGHT FORK OUTER	44006-1123	US $358.03
44013	44013 44013-1102 PIPE-FORK INNER	44013-1102	US $430.38
44022	44022 44022-1088 CYLINDER-FORK	44022-1088	US $123.85
44026	44026 44026-1204 SPRING-FRONT FORK	44026-1204	US $45.15
44026A	44026A 44026-1205 SPRING-FRONT FORK (option)	44026-1205	US $40.32
44026B	44026B 44026-1206 SPRING-FRONT FORK (option)	44026-1206	US $45.26
44028	44028 44028-1003 GUIDE,FORK SPRING Guide,fork spring;	44028-1003	from US $6.96
44029A	44029A 44029-1106 SEAT-FORK SPRING	44029-1106	US $39.52
44037	44037 44037-1103 Holder-fork under	44037-1103	US $442.17
44039	44039 44039-1043 HOLDER-FORK UPPER	44039-1043	US $223.88
44043	44043 44043-052 WASHER	44043-052	US $7.61
44065	44065 92028-1126 BUSHING,FORK PIPE Bushing,fork pipe;	92028-1126	from US $19.96
46012	46012 46012-1014 HOLDER-HANDLE	46012-1014	US $11.41
49006	49006 49006-1174 BOOT,FORK Boot,fork;	49006-1174	—
56040	56040 56040-1120 LABEL,FRONT FORK Label,front fork;	56040-1120	from US $3.92
92001	92001 44041-065 BOLT,FORK TOP Bolt,fork top;	44041-065	US $25.87
92001A	92001A 92001-1309 BOLT,FORK CYLINDER Bolt,fork cylinder;	92001-1309	from US $5.06
92001B	92001B 92001-1398 BOLT FLANGED 8X55	92001-1398	US $3.45
92015	92015 92015-1124 NUT,LOCK,8MM Nut,lock,8mm;	92015-1124	from US $2.87
92022	92022 92022-1262 WASHER,FORK OUT PIPE Washer,fork out pipe;	92022-1262	from US $3.93
92027A	92027A 92027-1762 COLLAR,L=127 Collar,l=127;	92027-1762	US $5.27
92028	92028 44065-1091 BUSHING-FRONT FORK,OU Bushing-front fork,ou;	44065-1091	from US $14.67
92033	92033 92033-1047 SNAP RING,FORK OUTER Snap ring,fork outer;	92033-1047	from US $3.47
92049A	92049A 92049-1180 SEAL-OIL,FRONT FORK Seal-oil,front fork;	92049-1180	from US $13.30
92055	92055 92055-1050 0 RING,FORK TOP CAP "0" ring,fork top cap;	92055-1050	from US $2.94
92072	92072 92072-1040 CLAMP,CABLE Clamp,cable;	92072-1040	—
92072A	92072A 92072-1046 BAND,BOOT Band,boot;	92072-1046	from US $5.89
92072B	92072B 92072-1094 BAND,BOOT,RH Band,boot,rh;	92072-1094	US $4.92
92093A	92093A 92093-1166 SEAL,FRONT FORK Seal,front fork;	92093-1166	from US $9.98

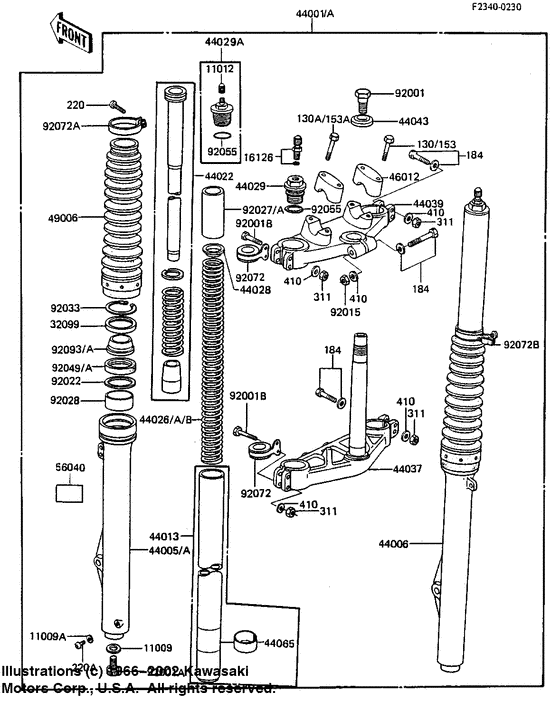

Front fork Diagram Kawasaki KDX250 KDX250 USA 10381221-683256

Front fork Diagram Kawasaki KDX250 KDX250 USA 10381221-683256
