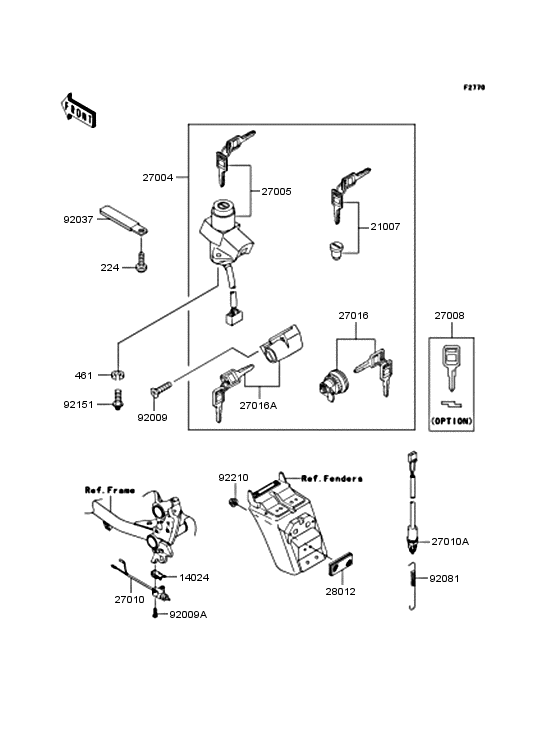

Ignition switch Diagram Kawasaki KLE500
- Year
- 2005
- Colour
- Metallic Titanium (740)
- Model code
- KLE500-B1P
- Sales region
- United Kingdom
- Engine Capacity
- 500
- Engine
- EX500AE 018001 -
- Model
- KLE500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
224
|
224
224B0508 SCREW-PAN-WP-CROSSCREW-PAN-WP-CROS |
224B0508 |
US $0.44 |
||
| replacement | |||||
|
224
|
224
224AA0508 SCREW-PAN-WP-CROSSCREW-PAN-WP-CROS |
224AA0508 |
from US $0.39 |
||
|
461
|
461
461L0600 WASHER-SPRING,6MMWASHER-SPRING |
461L0600 |
US $4.20 |
||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MMWASHER-SPRING |
461DA0600 |
from US $0.42 |
||
|
14024
|
14024
14024-1532 COVER,SIDE STAND SWITCHCOVER，SIDE STAND SWITCH |
14024-1532 |
from US $5.14 |
||
|
21007
|
21007
21007-5037 ROTOR,LOCK,TANK CAPROTOR，LOCK，TANK CAP |
21007-5037 |
from US $55.94 |
||
|
27004
|
27004
27004-5481 Switch-assySWITCH-ASSY |
27004-5481 |
US $300.89 |
||
|
27005
|
27005
27005-5102 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION |
27005-5102 |
US $163.30 |
||
|
27008
|
27008
27008-1173 KEY-LOCK,BLANKKEY-LOCK，BLANK; OPTION |
27008-1173 |
US $19.20 |
||
| replacement | |||||
|
27008
|
27008
27008-0621 KEY-LOCK,BLANKKEY-LOCK，BLANK; OPTION |
27008-0621 |
from US $12.10 |
||
|
27010
|
27010
27010-1223 SWITCH,SIDE STANDSWITCH，SIDE STAND |
27010-1223 |
from US $41.89 |
||
|
27010A
|
27010A
27010-1452 SWITCH,BRAKE LAMPSWITCH，BRAKE LAMP |
27010-1452 |
from US $17.84 |
||
|
27016
|
27016
27016-5210 LOCK-ASSY,TOOL BOXLOCK-ASSY，TOOL BOX |
27016-5210 |
from US $48.69 |
||
|
27016A
|
27016A
27016-5211 LOCK-ASSY,HELMETLOCK-ASSY，HELMET |
27016-5211 |
from US $48.69 |
||
|
28012
|
28012
28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX |
28012-1077 |
from US $14.21 |
||
|
92009
|
92009
92009-1401 SCREWSCREW，5X12 |
92009-1401 |
from US $2.72 |
||
|
92009A
|
92009A
92009-1459 SCREWSCREW，5X20 |
92009-1459 |
from US $2.58 |
||
|
92037
|
92037
92037-1069
CLAMP
CLAMP，L=60 |
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMPCLAMP，L=60 |
92171-0652 |
from US $1.12 |
||
|
92081
|
92081
92081-1082 SPRING,BRAKE SWITCHSPRING，BRAKE LAMP SWITCH |
92081-1082 |
from US $5.29 |
||
|
92151
|
92151
92151-1911 BOLT,TORX,6X16BOLT，TORX，6X16 |
92151-1911 |
US $3.01 |
||
| replacement | |||||
|
92151
|
92151
92153-0967 BOLT,TORX,6X16BOLT，TORX，6X16 |
92153-0967 |
from US $1.06 |
||
|
92210
|
92210
92210-0007 NUT,FLANGED,5MMNUT，FLANGED，5MM |
92210-0007 |
from US $1.20 |
||
