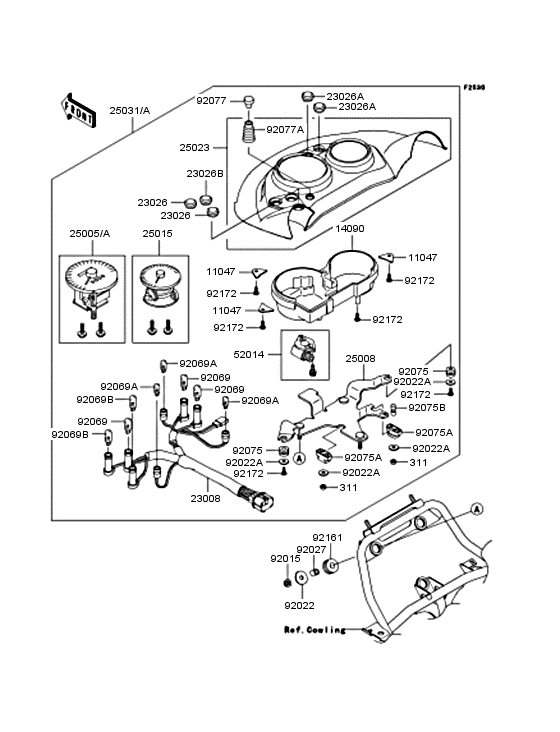

Meter (s) Diagram Kawasaki KLE500
- Year
- 2005
- Colour
- Metallic Titanium (740)
- Model code
- KLE500-B1P
- Sales region
- United Kingdom
- Engine Capacity
- 500
- Engine
- EX500AE 018001 -
- Model
- KLE500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
311
311B0500
NUT-HEX,5MM
NUT-HEX |
311B0500 |
— | ||
| replacement | |||||
|
311
|
311
311AA0500 NUT-HEX,5MMNUT-HEX |
311AA0500 |
from US $0.63 |
||
|
11047
|
11047
11047-1373 Bracket,meterBRACKET，METER |
11047-1373 |
US $5.29 |
||
|
14090
|
14090
14090-1102 Cover,meter housingCOVER，METER HOUSING |
14090-1102 |
US $48.38 |
||
|
23008
|
23008
23008-0037 ソケツトアツシ，メータSOCKET-ASSY，METER |
23008-0037 |
US $95.98 |
||
|
23026
|
23026
23026-1105 LENS,OILLENS，PILOT，RED |
23026-1105 |
from US $6.65 |
||
|
23026A
|
23026A
23026-1107 LENS,NEUTRALLENS，PILOT，GREEN |
23026-1107 |
from US $6.65 |
||
|
23026B
|
23026B
23026-1108 LENS,HIGH BEAMLENS，PILOT，BLUE |
23026-1108 |
from US $6.65 |
||
|
25005
|
25005
25005-0012
スピ-ドメ-タ，kph
SPEEDOMETER，KPH |
25005-0012 |
— | ||
|
25005A
|
25005A
25005-0015 スピ-ドメ-タ，mphSPEEDOMETER，MPH |
25005-0015 |
US $299.38 |
||
|
25008
|
25008
25008-0004 ブラケツト(メ-タ)BRACKET-METER |
25008-0004 |
US $45.91 |
||
|
25015
|
25015
25015-0007 タコメ-タ，x1000r/minTACHOMETER，X1000R/MIN |
25015-0007 |
US $317.52 |
||
|
25023
|
25023
25023-0010 カバ-(メ-タケ-ス)，uppCOVER-METER CASE，UPP |
25023-0010 |
US $128.10 |
||
|
25031
|
25031
25031-0066 メ-タアツシ，kphMETER-ASSY，KPH |
25031-0066 |
US $1,104.96 |
||
|
25031A
|
25031A
25031-0085 メ-タアツシ，mphMETER-ASSY，MPH |
25031-0085 |
US $1,104.96 |
||
|
52014
|
52014
52014-1081
ELBOW
ELBOW，METER |
52014-1081 |
— | ||
| replacement | |||||
|
52014
|
52014
52014-0002 ELBOWELBOW，METER |
52014-0002 |
from US $44.76 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMNUT，FLANGED，6MM |
92015-1367 |
from US $2.52 |
||
|
92022
|
92022
92022-1160 WASHER,PLAIN,7MMWASHER，7X24X1.6 |
92022-1160 |
from US $2.24 |
||
| replacement | |||||
|
92022
|
92022
92022-228 WASHER,PLAIN,7MMWASHER，7X24X1.6 |
92022-228 |
from US $2.27 |
||
|
92022A
|
92022A
92022-263 WASHER,PLAIN,6MMWASHER，5.2X16X1.2 |
92022-263 |
from US $1.10 |
||
|
92027
|
92027
92027-162 COLLAR,REAR FENDERCOLLAR，6.8X10X12 |
92027-162 |
from US $3.47 |
||
|
92069
|
92069
92069-1007 BULB,12V3.4WBULB，12V 3.4W，T10 |
92069-1007 |
from US $3.02 |
||
|
92069A
|
92069A
92069-1020 BULB,12V3W T-7BULB，12V 3W，T7 |
92069-1020 |
from US $4.09 |
||
|
92069B
|
92069B
92069-1059 BULB,12V 1.7WBULB，12V 1.7W，T10 |
92069-1059 |
from US $3.02 |
||
|
92075
|
92075
92075-1435 DAMPER,METER BRACKETDAMPER |
92075-1435 |
from US $3.47 |
||
|
92075A
|
92075A
92075-1495 DAMPER,METER BRACKETDAMPER，METER BRACKET |
92075-1495 |
from US $6.96 |
||
|
92075B
|
92075B
92075-1627 DAMPER,METER BRACKETDAMPER，METER BRACKET |
92075-1627 |
from US $3.15 |
||
|
92077
|
92077
92077-1083 KNOB,TRIP RESETKNOB，TRIP RESET |
92077-1083 |
from US $5.14 |
||
|
92077A
|
92077A
92077-1087 KNOB,TRIP RESETKNOB，TRIP RESET |
92077-1087 |
from US $5.14 |
||
|
92161
|
92161
92161-0163 DAMPER,SIGNAL LAMP,FRDAMPER |
92161-0163 |
from US $2.52 |
||
|
92172
|
92172
92172-0193 スクリユ-，タツピング，4x12SCREW，TAPPING，4X12 |
92172-0193 |
US $1.20 |
||
