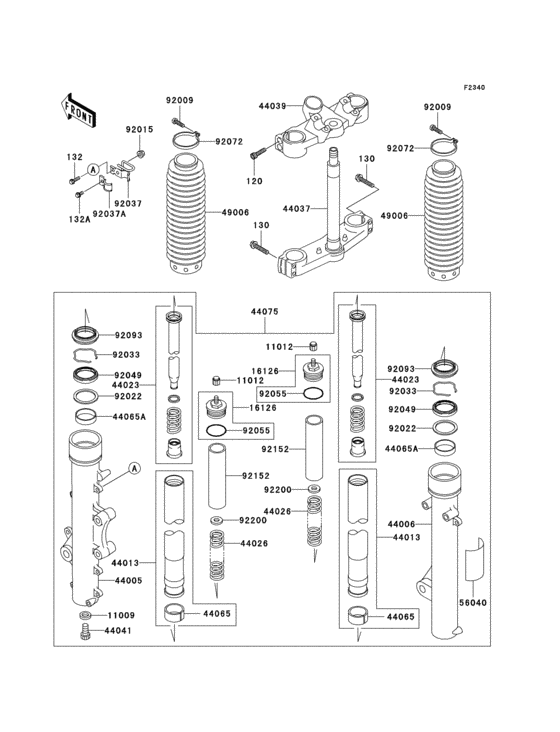

Front fork Diagram Kawasaki KLE500
- Year
- 2005
- Model code
- KLE500-B1P
- Sales region
- Europe (General)
- Engine Capacity
- 500
- Model
- KLE500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0830 BOLT-SOCKET,8X30,BLAC |
120CB0830 |
from US $1.20 |
||
|
130
|
130
130BB0840 BOLT-FLANGED,8X40 |
130BB0840 |
from US $1.20 |
||
|
132
|
132
92002-1607 BOLT |
92002-1607 |
from US $2.58 |
||
|
132A
|
132A
92002-1569
BOLT-FLANGED-SMALL,6X
|
92002-1569 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.91 |
||
|
11009
|
11009
44045057 GASKET,FORK CYLINDER |
44045057 |
from US $3.23 |
||
|
11012
|
11012
11012-1391 CAP,VALVE AIR |
11012-1391 |
from US $3.47 |
||
|
16126
|
16126
16126-1147 VALVE |
16126-1147 |
from US $44.91 |
||
|
44005
|
44005
44005-0030 チユ-ブ(レフトフオ-クアウタ) |
44005-0030 |
US $370.13 |
||
|
44006
|
44006
44006-0029 チユ-ブ(ライトフオ-クアウタ) |
44006-0029 |
US $370.13 |
||
|
44013
|
44013
44013-0035 パイプ(フオ-クインナ) |
44013-0035 |
US $342.92 |
||
|
44023
|
44023
44023-0028 シリンダセツト(フオ-ク) |
44023-0028 |
US $157.30 |
||
|
44026
|
44026
44026-0061 スプリング(フロントフオ-ク) |
44026-0061 |
US $73.67 |
||
|
44037
|
44037
44037-0024 ホルダ(フオ-クアンダ) |
44037-0024 |
US $497.14 |
||
|
44039
|
44039
44039-1215 Holder-fork upper |
44039-1215 |
US $196.56 |
||
|
44041
|
44041
44041040 BOLT-FORK CYLINDER |
44041040 |
from US $3.92 |
||
|
44065
|
44065
44065-0014 BUSHING-FRONT FORK,IN |
44065-0014 |
from US $16.94 |
||
|
44065A
|
44065A
44065-1115 BUSHING-FRONT FORK |
44065-1115 |
from US $16.94 |
||
|
44075
|
44075
44075-0061
Damper-set-fork
|
44075-0061 |
— | ||
| replacements | |||||
|
44075
|
44075
44071-0169 ダンパアツシ，フオーク，lh |
44071-0169 |
US $769.30 |
||
|
44075
|
44075
44071-0170 ダンパアツシ，フオーク，rh |
44071-0170 |
US $769.30 |
||
|
49006
|
49006
49006-1266-BD BOOT,FORK,BLACK |
49006-1266-BD |
from US $56.62 |
||
|
56040
|
56040
56040-1120 LABEL,FRONT FORK |
56040-1120 |
from US $3.92 |
||
|
92009
|
92009
92009-1348 SCREW |
92009-1348 |
from US $2.87 |
||
|
92015
|
92015
92015-1603 NUT |
92015-1603 |
from US $2.58 |
||
|
92022
|
92022
92022-1298 WASHER,FORK OUTER TUB |
92022-1298 |
from US $4.84 |
||
|
92033
|
92033
92033-1036 CIRCLIP |
92033-1036 |
from US $4.37 |
||
|
92037
|
92037
92037-1897 CLAMP,HOSE |
92037-1897 |
from US $8.47 |
||
|
92037A
|
92037A
92037-1898 CLAMP,HOSE |
92037-1898 |
from US $4.84 |
||
|
92049
|
92049
92049-1356 SEAL-OIL |
92049-1356 |
from US $10.89 |
||
|
92055
|
92055
670B3032 0 RING,32MM |
670B3032 |
from US $1.72 |
||
|
92072
|
92072
92072-1077 BAND,BOOT |
92072-1077 |
from US $5.89 |
||
|
92093
|
92093
92093-0036 SEAL,DUST |
92093-0036 |
from US $9.98 |
||
|
92152
|
92152
92152-1085 Collar,fork,l=150 |
92152-1085 |
US $10.89 |
||
|
92200
|
92200
92200-1467 WASHER |
92200-1467 |
from US $5.45 |
||
