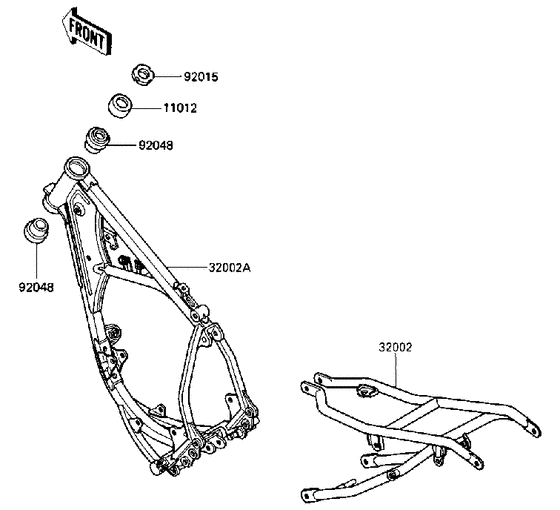

Frame Diagram Kawasaki KX80 KX80 Big Wheel
- Year
- 1987
- Model code
- KX80-J2
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80 Big Wheel
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
46098015
CAP,STEERING STEM
Cap,steering stem; |
46098015 |
— | ||
|
32002
|
32002
32002-1827 FRAME-COMP,RRFrame-comp,rr; |
32002-1827 |
US $297.22 |
||
|
32002A
|
32002A
32002-1905 FRAME-COMP,FRFrame-comp,fr; |
32002-1905 |
US $411.99 |
||
|
92015
|
92015
92015-1546 NUT |
92015-1546 |
from US $11.79 |
||
|
92048
|
92048
92047-017 BEARING,STEERING STEMBearing,steering stem; |
92047-017 |
from US $23.94 |
