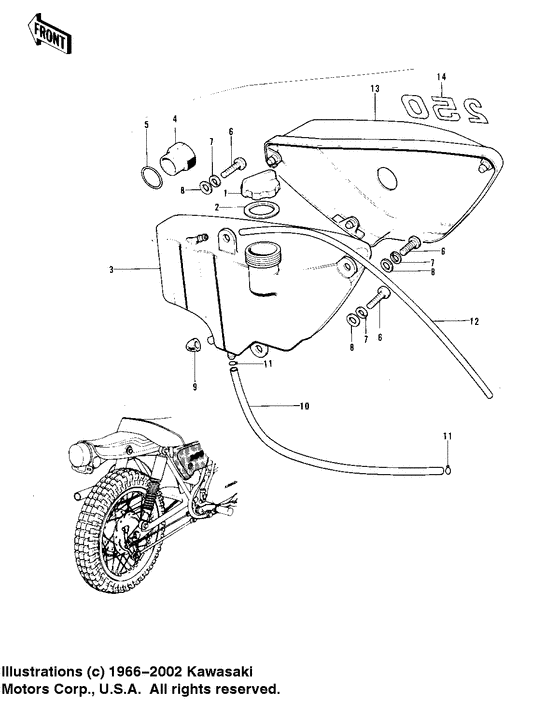

Side cover/oil tank Diagram Kawasaki Model "F" F11
- Year
- 1975
- Model code
- F11-B
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52003019 CAP-OIL TANK |
52003019 |
US $5.89 |
||
|
2
|
2
92065-085 GASKET-OIL TANK CAP |
92065-085 |
from US $2.87 |
||
|
3
|
3
52001-030
TANK-OIL
|
52001-030 |
— | ||
|
4
|
4
52015-002
GUAGE-OIL LEVEL
Guage-oil level; |
52015-002 |
— | ||
|
5
|
5
92055-051 O RING,20MM"o" ring,20mm; |
92055-051 |
from US $3.02 |
||
|
6
|
6
220B0618
SCREW-PAN HEAD,6X18
Screw pan head 6x18; |
220B0618 |
— | ||
| replacement | |||||
|
6
|
6
220AA0618 SCREW-PAN HEAD,6X18Screw pan head 6x18; |
220AA0618 |
from US $0.91 |
||
|
7
|
7
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
7
|
7
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.42 |
||
|
8
|
8
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
8
|
8
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.56 |
||
|
9
|
9
92075-150 DAMPER RUBBER-OIL TNKDamper rubber-oil tn; |
92075-150 |
US $2.68 |
||
|
10
|
10
92059-064
PIPE,OIL TANK
L=580 m/m |
92059-064 |
— | ||
| replacement | |||||
|
10
|
10
92059-057
PIPE,OIL TANK
L=580 m/m |
92059-057 |
— | ||
|
11
|
11
92037-010 CLAMP FUEL PIPEClamp fuel pipe; |
92037-010 |
from US $2.38 |
||
|
12
|
12
700Q05400
TUBE-PVC,5X1000
Tube-vinyl,5x400; |
700Q05400 |
— | ||
| replacement | |||||
|
12
|
12
700Q051000
TUBE-PVC,5X1000
Tube-vinyl,5x400; |
700Q051000 |
— | ||
|
13
|
13
36007-028-21
COVER,RH SIDE,BLACK
Cover,rh side,black; Flat black, '72 candytone red |
36007-028-21 |
— | ||
|
14
|
14
56018-131 EMBLEM-SIDE COVERF11, f11a, f11b |
56018-131 |
US $8.02 |
||
| replacement | |||||
|
14
|
14
56018-186 EMBLEM,R.H SIDE COVERF11, f11a, f11b |
56018-186 |
US $16.77 |
||
