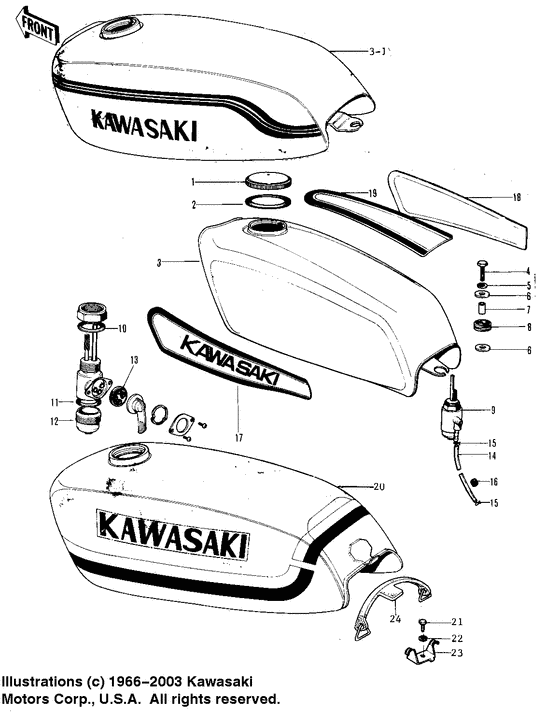

Fuel tank ('71-'72 f8/f8-a) Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51049-008
CAP FUEL TANK
|
51049-008 |
— | ||
|
2
|
2
51059-007
GASKET-FUEL TANK CAP
|
51059-007 |
— | ||
|
3
|
3
51001-055-55 TANK-FUEL,ORANGETank-fuel,orange; Use 51002-010-72 |
51001-055-55 |
US $397.22 |
||
|
4
|
4
92001-1577
BOLT,FLANGED,8X35
Bolt,flanged,8x35; |
92001-1577 |
— | ||
|
5
|
5
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
5
|
5
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.42 |
||
|
6
|
6
92022-1564 WASHER,8X26X2.3Washer,8x26x2.3; |
92022-1564 |
from US $2.42 |
||
|
7
|
7
92027-034 SPACER FUEL TANK REARSpacer fuel tank rear; |
92027-034 |
from US $3.02 |
||
|
8
|
8
92075-030
DAMPER RUBB TANK REAR
|
92075-030 |
— | ||
|
9
|
9
51023-044
COCK ASSY,FUEL
Cock assy,fuel; |
51023-044 |
— | ||
|
10
|
10
51032-001
GASKET FUEL COCK JONT
|
51032-001 |
— | ||
|
11
|
11
51037-007
GASKET FUEL COCK CUP
|
51037-007 |
— | ||
|
12
|
12
51036-003
CUP FUEL COCK
|
51036-003 |
— | ||
|
13
|
13
92065-019
GASKET FUEL COCK LEV
|
92065-019 |
— | ||
|
14
|
14
92059-072 PIPE-OILL=345 m/m |
92059-072 |
from US $18.48 |
||
|
15
|
15
92037-010 CLAMP FUEL PIPEClamp fuel pipe; |
92037-010 |
from US $2.38 |
||
|
16
|
16
92071-038 GROMMET PIPEGrommet pipe; |
92071-038 |
from US $2.80 |
||
|
17
|
17
56013-031-61 EMBLEM-L.H,PURPLEEmblem-l.h,purple; |
56013-031-61 |
US $29.31 |
||
|
18
|
18
56014-025-61 EMBLEM-R.H,PURPLEEmblem-r.h,purple; |
56014-025-61 |
US $22.52 |
||
|
19
|
19
56027-038-61 EMBLEM-CENTER,PURPLEEmblem-center,purple; |
56027-038-61 |
US $14.26 |
||
|
21
|
21
115G0818
BOLT-SMALL-UPSET,8X18
Bolt-small-upset,8x18; |
115G0818 |
— | ||
| replacement | |||||
|
21
|
21
115BA0818 BOLT-SMALL-UPSET,8X18Bolt-small-upset,8x18; |
115BA0818 |
from US $0.91 |
||
|
22
|
22
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
22
|
22
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.42 |
||
|
23
|
23
32052-046 BRACKET,FUEL TANKBracket,fuel tank; |
32052-046 |
US $1.96 |
||
|
24
|
24
92072-049
BAND,FUEL TANK
Band,fuel tank; |
92072-049 |
— | ||
| replacement | |||||
|
24
|
24
92072-075
BAND,FUEL TANK
Band,fuel tank; |
92072-075 |
— | ||
|
20
|
20
51002-010-72 TANK,FUEL,ORANGETank,fuel,orange; |
51002-010-72 |
US $397.34 |
||
|
21
|
21
51002-010-72 TANK,FUEL,ORANGETank,fuel,orange; |
51002-010-72 |
US $397.34 |
||
|
22
|
22
51002-010-72 TANK,FUEL,ORANGETank,fuel,orange; |
51002-010-72 |
US $397.34 |
||
|
23
|
23
51002-010-72 TANK,FUEL,ORANGETank,fuel,orange; |
51002-010-72 |
US $397.34 |
||
|
24
|
24
51002-010-72 TANK,FUEL,ORANGETank,fuel,orange; |
51002-010-72 |
US $397.34 |
||
