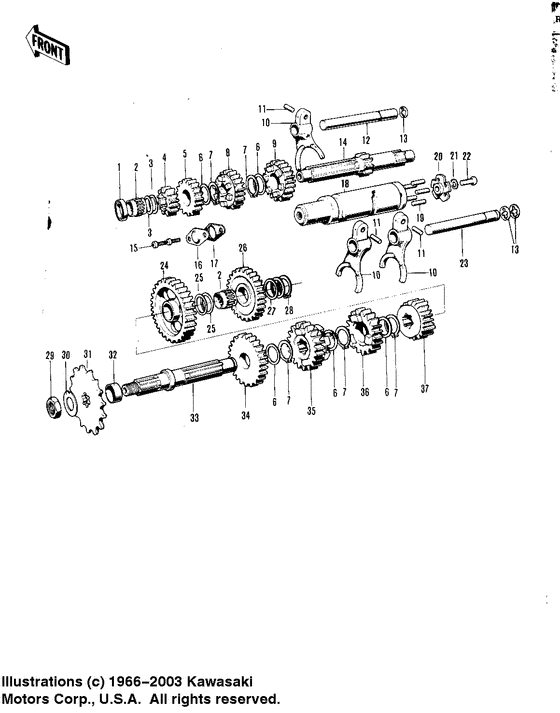

Transmission/change drum ('71 f81m) Diagram Kawasaki Model "F" F81 Green Streak
- Year
- 1971
- Model code
- F81M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F81
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92050-034
OIL SEAL-CLTH PSH ROD
|
92050-034 |
— | ||
|
2
|
2
92046-025 BEARING-NEEDLE7e-hm2015 |
92046-025 |
US $17.50 |
||
|
3
|
3
92022-112 WASHER THRUSTWasher thrust; 24t |
92022-112 |
from US $4.98 |
||
|
4
|
4
13130-026 2ND GEAR-DRIVE15t |
13130-026 |
US $23.96 |
||
|
5
|
5
13134-010 4TH GEAR-DRIVE23t |
13134-010 |
US $51.17 |
||
|
6
|
6
92022-076
WASHER 25MM
|
92022-076 |
— | ||
| replacement | |||||
|
6
|
6
92022-161 WASHER PLAIN |
92022-161 |
from US $5.60 |
||
|
7
|
7
92033-026 CIRCLIPCirclip; |
92033-026 |
from US $4.90 |
||
|
8
|
8
13132-023 3RD GEAR-DRIVE19t |
13132-023 |
US $56.77 |
||
|
9
|
9
13136-033
TOP GEAR-DRIVE
20t |
13136-033 |
— | ||
|
10
|
10
13140-052 FORK-SELECTOR |
13140-052 |
US $75.15 |
||
|
11
|
11
610A0812 PIN-DOWEL,8X12Pin-dowel,8x12; |
610A0812 |
from US $0.91 |
||
|
12
|
12
13209-003 ROD-SHIFTL=113 m/m |
13209-003 |
US $2.80 |
||
|
13
|
13
482J0100 CIRCLIP 10MMCirclip 10mm; |
482J0100 |
from US $0.91 |
||
|
14
|
14
13127-025 SHAFT-DRIVE11t |
13127-025 |
US $121.07 |
||
|
15
|
15
220B0616
SCREW-PAN-CROS,6X16
Screw pan head 6x16; |
220B0616 |
— | ||
| replacement | |||||
|
15
|
15
220AA0616 SCREW-PAN-CROS,6X16Screw pan head 6x16; |
220AA0616 |
from US $0.91 |
||
|
16
|
16
92084-004 PLUG-OIL PUMP-HOLE |
92084-004 |
US $2.43 |
||
|
17
|
17
13146002 GASKET NEUTRAL SWITCHGasket neutral switch; |
13146002 |
from US $2.87 |
||
|
19
|
19
92042-020 PIN-CHANGE DRUMPin-change drum; |
92042-020 |
from US $2.72 |
||
|
20
|
20
13142-010 PLATE-CHANGE DRUM PIN |
13142-010 |
US $14.82 |
||
|
21
|
21
464H0600
WASHER LOCK 6MM
|
464H0600 |
— | ||
|
22
|
22
221B0620
SCREW-CNTSNK HD,6X20
Screw cntsnk hd 6x20; |
221B0620 |
— | ||
| replacement | |||||
|
22
|
22
221AA0620 SCREW-CNTSNK HD,6X20Screw cntsnk hd 6x20; |
221AA0620 |
from US $0.84 |
||
|
23
|
23
13209-010 ROD-SHIFT |
13209-010 |
US $8.42 |
||
|
24
|
24
13129-042 LOW GEAR-OUTPUT SHAFT27t |
13129-042 |
US $130.01 |
||
|
25
|
25
92022-113
WASHER THRUST
|
92022-113 |
— | ||
|
26
|
26
13073-005 IDLE GEAR-KICKSTARTER27t |
13073-005 |
US $65.07 |
||
|
27
|
27
92022-112 WASHER THRUSTWasher thrust; 1.0, 0.5t |
92022-112 |
from US $4.98 |
||
|
28
|
28
480J1900 CIRCLIP,19MMCirclip,19mm; |
480J1900 |
from US $0.82 |
||
|
29
|
29
92015-019 NUT 18MMNut 18mm; |
92015-019 |
from US $3.50 |
||
|
30
|
30
92024-067
WASHER,LOCK,18MM
Washer,lock,18mm; |
92024-067 |
— | ||
|
31
|
31
13144-017
ENGINE SPROCKET 14T
Std, option, option |
13144-017 |
— | ||
|
32
|
32
92027-163
COLLAR-ENG SPROKET
|
92027-163 |
— | ||
|
33
|
33
13128-027 SHAFT-OUTPUT |
13128-027 |
US $157.59 |
||
|
35
|
35
13135-014 4TH GEAR-OUTPUT25t |
13135-014 |
US $68.76 |
||
|
36
|
36
13133-023 3RD GEAR-OUTPUT24t |
13133-023 |
US $39.17 |
||
|
37
|
37
13137-018 TOP GEAR-OUTPUT19t |
13137-018 |
US $40.95 |
||
