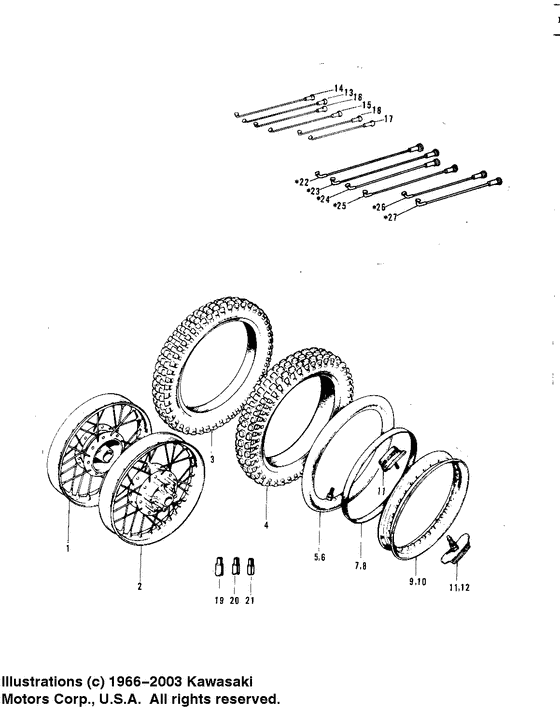

Wheels/tires ('71 f81m) Diagram Kawasaki Model "F" F81 Green Streak
- Year
- 1971
- Model code
- F81M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F81
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41074-020 WHEEL ASSY-FRONT* |
41074-020 |
US $245.25 |
||
|
2
|
2
42048-015
WHEEL ASSY-REAR
* |
42048-015 |
— | ||
|
3
|
3
41019-008
New Genuine Part
|
41019-008 |
— | ||
|
4
|
4
41019-002
New Genuine Part
|
41019-002 |
— | ||
| replacement | |||||
|
4
|
4
41017-015
*** n.l.a.***
|
41017-015 |
— | ||
|
5
|
5
41022-1021 TUBE-TIRE,80/100-21(DTube,2.75/3.70-21; |
41022-1021 |
US $45.41 |
||
| replacement | |||||
|
5
|
5
41022-1118 TUBE-TIRE,80/100-21(DTube,2.75/3.70-21; |
41022-1118 |
US $45.41 |
||
|
6
|
6
41022-024
New Genuine Part
|
41022-024 |
— | ||
| replacement | |||||
|
6
|
6
41022-1119
TUBE-TIRE,100/100-18
|
41022-1119 |
— | ||
|
7
|
7
41023-1001 BAND-RIM,90/100-21(D)Band,rim,3.00-21; |
41023-1001 |
US $12.86 |
||
| replacement | |||||
|
7
|
7
41023-0009 BAND-RIM,90/100-21(D)Band,rim,3.00-21; |
41023-0009 |
from US $8.32 |
||
|
8
|
8
41023-1006
BAND-RIM,100/100-18(D
Band,rim,4.00/5.10-18; |
41023-1006 |
— | ||
| replacement | |||||
|
8
|
8
41023-1070 BAND-RIM,100/100-18(DBand,rim,4.00/5.10-18; |
41023-1070 |
from US $10.56 |
||
|
9
|
9
41025-050 RIM,1.6AX21Rim,1.6ax21; |
41025-050 |
US $79.84 |
||
|
10
|
10
41025-045 RIM,1.85BX18WRim,1.85bx18w; |
41025-045 |
US $83.83 |
||
|
11
|
11
41024006 PROTECTOR-BEAD 1.60AProtector-bead 1.60a; |
41024006 |
US $68.25 |
||
|
12
|
12
41024-007 PROTECTOR-BEAD 1.85B |
41024-007 |
US $42.37 |
||
|
13
|
13
41027-035
SPOKE-ASY,INNER
Spoke-asy,inner; |
41027-035 |
— | ||
|
14
|
14
41028-034
SPOKE-ASY,OUTER
Spoke-asy,outer; |
41028-034 |
— | ||
|
15
|
15
41027-036
SPOKE-ASY,INNER
Spoke-asy,inner; |
41027-036 |
— | ||
|
16
|
16
41028-035
SPOKE-ASY,OUTER
Spoke-asy,outer; |
41028-035 |
— | ||
|
17
|
17
41027-037
SPOKE-ASY,INNER
Spoke-asy,inner; |
41027-037 |
— | ||
|
18
|
18
41028-027
SPOKE ASSY-OUTER
|
41028-027 |
— | ||
|
19
|
19
41075-1009
BALANCER-WHEEL,30G
Weight,balance,30g; |
41075-1009 |
— | ||
| replacement | |||||
|
19
|
19
41075-0013 BALANCER-WHEEL,30GWeight,balance,30g; |
41075-0013 |
from US $5.89 |
||
|
20
|
20
41075-1008
WEIGHT,BALANCE,20G
Weight,balance,20g; |
41075-1008 |
— | ||
| replacement | |||||
|
20
|
20
41075-0012 BALANCER-WHEEL,20GWeight,balance,20g; |
41075-0012 |
from US $5.89 |
||
|
21
|
21
41075-1007
BALANCER-WHEEL,10G
Weight,balance,10g; |
41075-1007 |
— | ||
| replacement | |||||
|
21
|
21
41075-0011 BALANCER-WHEEL,10GWeight,balance,10g; |
41075-0011 |
from US $5.89 |
||
|
22
|
22
41027-039 SPOKE-ASY,FR INNERSpoke-asy,fr inner; |
41027-039 |
US $2.05 |
||
|
23
|
23
41028-038 SPOKE-ASY,FR OUTERSpoke-asy,fr outer; |
41028-038 |
US $1.96 |
||
|
24
|
24
41027-040 SPOKE-ASY,RR INNER LHSpoke-asy,rr inner lh; |
41027-040 |
US $1.96 |
||
|
25
|
25
41028-039 SPOKE-ASY,RR OUTER LHSpoke-asy,rr outer lh; |
41028-039 |
US $2.05 |
||
|
26
|
26
41027-041 SPOKE-ASY,RR INNER RHSpoke-asy,rr inner rh; |
41027-041 |
US $4.92 |
||
|
27
|
27
41028-040 SPOKE-ASY,FR OUTER LHSpoke-asy,fr outer lh; |
41028-040 |
US $2.05 |
||
