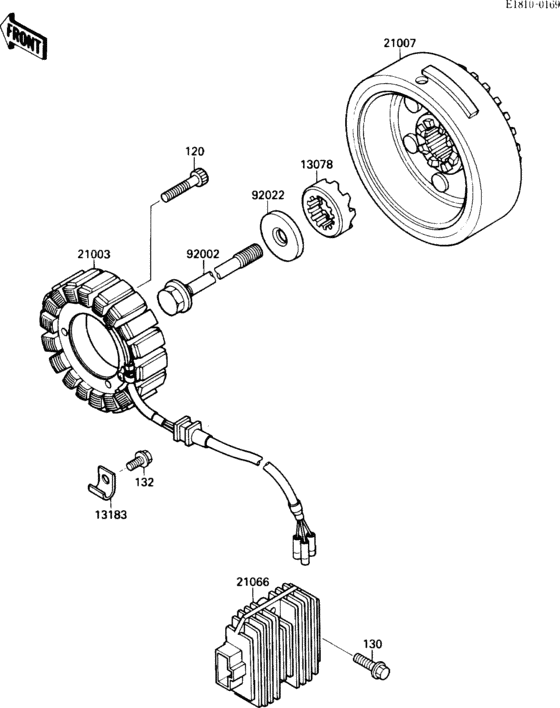

Generator Diagram Kawasaki VN1500 Vulcan 88
- Year
- 1988
- Model code
- VN1500-A2
- Sales region
- USA
- Engine Capacity
- 1500
- Frame
- JKBVNAA1 JA001001 - JA003000
- Model
- Vulcan 1500/ VN-15
Difficulties in parts search?
Parts list
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
120
|
120
120CA0635 BOLT-SOCKET,6X35 |
120CA0635 |
from US $0.91 |
||
130
|
130
130CA0620 BOLT-FLANGED,6X20 |
130CA0620 |
from US $0.98 |
||
132
|
132
132E0610 BOLT-FLANGED-SMALL |
132E0610 |
from US $1.06 |
||
13078
|
13078
13078-1056 RATCHET |
13078-1056 |
from US $36.44 |
||
13183
|
13183
13183-1072 PLATE |
13183-1072 |
US $2.85 |
||
21003
|
21003
21003-1385 STATOR |
21003-1385 |
from US $540.69 |
||
21007
|
21007
21007-1154 ROTOR |
21007-1154 |
US $474.83 |
||
21066
|
21066
21066-1101 REGULATOR-VOLTAGE |
21066-1101 |
from US $154 |
||
92002
|
92002
92002-1901 BOLT,GENERATOR,12X112 |
92002-1901 |
US $25.38 |
||
92022
|
92022
92022-1904 WASHER,GENERATOR |
92022-1904 |
from US $7.87 |
