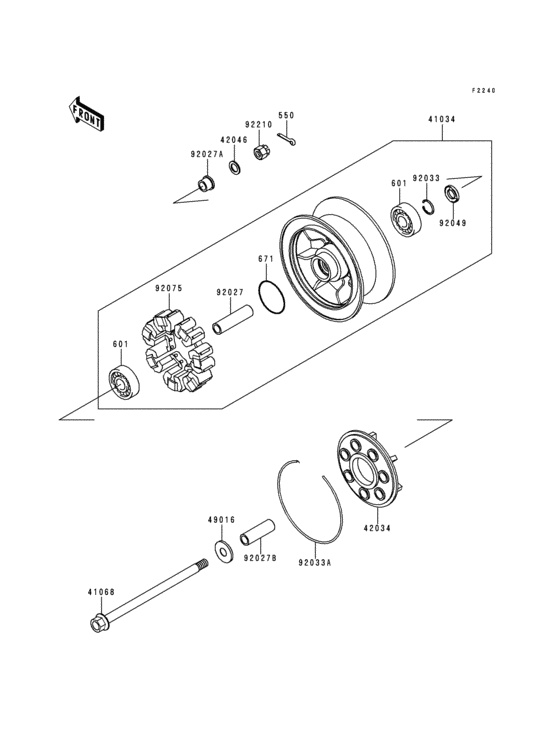

Rear hub Diagram Kawasaki VN1500 VN1500 Classic
- Year
- 1999
- Colour
- Metallic Nocturne Blue / Galaxy Silver (H6)
- Model code
- VN1500-E2
- Sales region
- Spain
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
550
|
550
550D4035
PIN-COTTER,4.0X35
|
550D4035 |
— | ||
replacement | |||||
550
|
550
550AA4035 PIN-COTTER,4.0X35 |
550AA4035 |
from US $0.73 |
||
601
|
601
601B6304UU BEARING-BALL,#6304UUC |
601B6304UU |
from US $14.97 |
||
671
|
671
671B2580 0 RING,80MM |
671B2580 |
from US $3.47 |
||
41034
|
41034
41034-1260 DRUM-ASSY,REAR BRAKE |
41034-1260 |
US $874.88 |
||
replacement | |||||
41034
|
41034
41034-0567 DRUM-ASSY,REAR,BRAKE |
41034-0567 |
from US $654.70 |
||
41068
|
41068
41068-1410 AXLE,RR |
41068-1410 |
US $102.46 |
||
replacement | |||||
41068
|
41068
41068-0045 AXLE,RR |
41068-0045 |
from US $70.31 |
||
42034
|
42034
42034-1011 COUPLING,RR HUB |
42034-1011 |
US $265.58 |
||
replacements | |||||
42034
|
42034
42034-0002 COUPLING,RR HUB |
42034-0002 |
from US $176.90 |
||
42034
|
42034
42034-0754 Coupling,rr Hub |
42034-0754 |
US $265.58 |
||
42046
|
42046
42046003 WASHER PLAIN 22MM |
42046003 |
from US $2.72 |
||
49016
|
49016
49016-1019 COVER |
49016-1019 |
from US $6.80 |
||
92027
|
92027
92027-1901 COLLAR,20.2X28X105.5 |
92027-1901 |
from US $20.57 |
||
92027A
|
92027A
92027-1902 COLLAR,RR AXLE,L=21.5 |
92027-1902 |
from US $13.61 |
||
92027B
|
92027B
92027-1969 COLLAR,20.2X28X86 |
92027-1969 |
from US $13.30 |
||
92033
|
92033
92033-1043 RING,SNAP,52 M/M |
92033-1043 |
from US $4.90 |
||
92033A
|
92033A
92033-1230 RING-SNAP,220MM |
92033-1230 |
US $14.84 |
||
replacement | |||||
92033A
|
92033A
92033-0012 RING-SNAP,220MM |
92033-0012 |
from US $9.23 |
||
92049
|
92049
92049-1061 SEAL-OIL |
92049-1061 |
from US $11.19 |
||
92075
|
92075
92075-1121 DAMPER,REAR HUB,SHOCK |
92075-1121 |
US $152.88 |
||
92210
|
92210
92210-1134 NUT |
92210-1134 |
from US $3.63 |
