	Description	OEM Part #	Price
1	1 60014801000 Head light right tr. usa 03 03	60014801000	US $266.32
4	4 60014801050 Head light wiring harn. usa 03	60014801050	US $36.11
7	7 49011435100 Bulb 12V 5W (W2,1X9,5D) Phil 03	49011435100	US $3.81
8	8 57111038000 Bulb h4 12v 60/55w (p43t) 03	57111038000	US $44.46
9	9 60014007000 Spacer bushing head light 03 03	60014007000	US $2.31
10	10 31008008000 Rubber grommit black 03	31008008000	US $1.19
11	11 0021050003 Washer din9021-a 5,3 03	0021050003	US $0.46
12	12 0016050253 Screw For Plastic 03 03	0016050253	US $0.44
20	20 60114025000 Flasher cpl.front l/s rear r/s 03	60114025000	US $31.06
21	21 60114026000 Flasher cpl.front r/s rear l/s 03	60114026000	US $31.06
22	22 60114028000 Flasher lens l/s r/s transp.06 06	60114028000	US $4.13
23	23 60114027000 Bulb 12v orange (ry10w) 06	60114027000	US $5.90
24	24 0125100003 Washer Din0125-A10,5 06	0125100003	US $1.19
25	25 0797100003 Lock washer din6797-j10,5 zi 06	0797100003	US $0.65
26	26 58414030000 Hh collar nut m10x1,25 ws=13 WS=13	58414030000	US $1.56
30	30 60014040000 Rear light cpl. 03 03	60014040000	US $113.12
31	31 60011077000 Wiring harness rear light 05 05	60011077000	US $29.95
32	32 60014048000 Bulb 12v 21w 05	60014048000	US $4.56
33	33 0985060003 Self Lock. Nut Din0985-M 6 05	0985060003	US $0.31
34	34 0021060003 Washer Din9021-A 6,4 05	0021060003	US $0.73
35	35 58214069051 Rubber Grommet 16X10,8X3 02 02	58214069051	US $4.52
36	36 60014040050 Bump rubber 20x20x6 mm 03 03	60014040050	US $1.84
40	40 58414047000 License-plate illumination '98 '98	58414047000	US $13.69
41	41 0021050003 Washer din9021-a 5,3 '98	0021050003	US $0.46
42	42 0985050003 Self Locking Nut Din0985-M 5 '98	0985050003	US $0.66

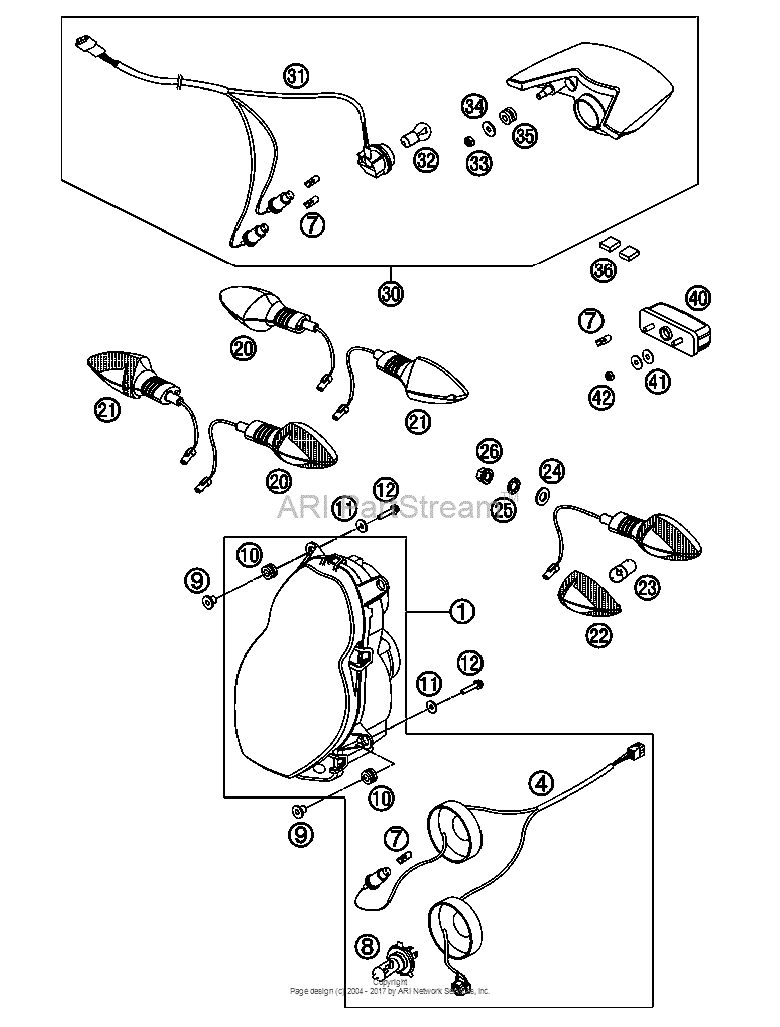

Lighting System Diagram KTM 990 990 Adventure US/EU 18109846-940853

Lighting System Diagram KTM 990 990 Adventure US/EU 18109846-940853
