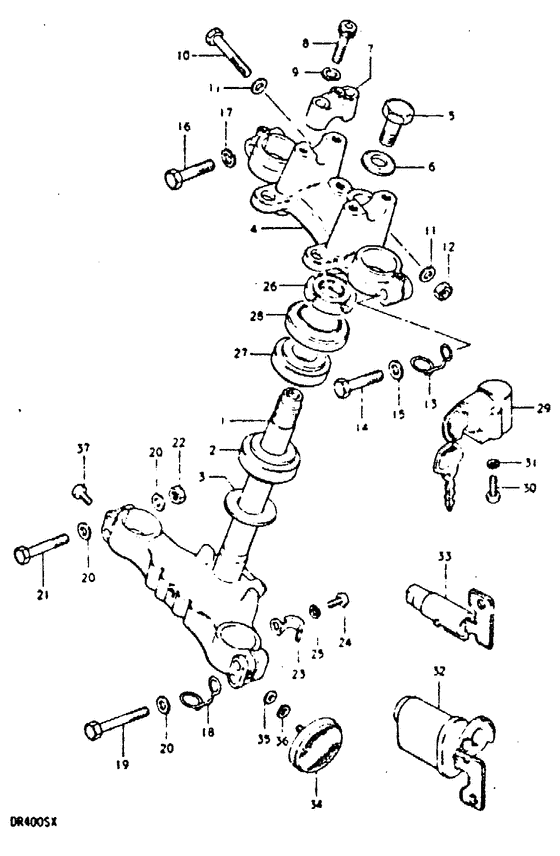

Steering stem Diagram Suzuki DR400
- Year
- 1999
- Model code
- DR400SX(T/X) X
- Engine Capacity
- 400
- Model
- DR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-37210-08C
Steering stem
Champage gold |
51410-37210-08C |
— | ||
|
2
|
2
09265-30005-000
Bearing
|
09265-30005-000 |
— | ||
| replacements | |||||
|
2
|
2
09265-30009-000
BEARING(30X55X17)
|
09265-30009-000 |
— | ||
|
2
|
2
09265-30034-000 Bearing |
09265-30034-000 |
from US $31.92 |
||
|
3
|
3
08211-30402-000
Winner
|
08211-30402-000 |
— | ||
| replacement | |||||
|
3
|
3
09181-30184-000 SHIM(30X40X1.5)Washer |
09181-30184-000 |
from US $1.82 |
||
|
4
|
4
51311-30900-08C
Stemhead, steering
Champage gold |
51311-30900-08C |
— | ||
|
5
|
5
51351-30540-000
Bolt
|
51351-30540-000 |
— | ||
|
6
|
6
51356-41310-000 WASHER |
51356-41310-000 |
US $5.46 |
||
|
7
|
7
56211-29900-000 CLAMP,HANDLE HOLDER UPR |
56211-29900-000 |
from US $8.76 |
||
|
8
|
8
09106-08004-000
Bolt
|
09106-08004-000 |
— | ||
| replacement | |||||
|
8
|
8
07130-0835B-000 Bolt |
07130-0835B-000 |
from US $3.62 |
||
|
9
|
9
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
10
|
10
01107-08558-000
Bolt
|
01107-08558-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-08557-000 BOLT |
01500-08557-000 |
from US $4.38 |
||
|
11
|
11
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
12
|
12
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
12
|
12
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
13
|
13
51455-29330-000 CLIPClip |
51455-29330-000 |
from US $3.31 |
||
|
14
|
14
01107-10408-000
Bolt
|
01107-10408-000 |
— | ||
| replacement | |||||
|
14
|
14
01500-10407-000 Bolt |
01500-10407-000 |
from US $5.06 |
||
|
15
|
15
08322-11108-000
Washer
|
08322-11108-000 |
— | ||
| replacement | |||||
|
15
|
15
08322-01107-000 WASHERWasher, throttle drum |
08322-01107-000 |
from US $0.80 |
||
|
16
|
16
01107-10408-000
Bolt
|
01107-10408-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-10407-000 Bolt |
01500-10407-000 |
from US $5.06 |
||
|
17
|
17
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
17
|
17
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.80 |
||
|
18
|
18
51455-32400-000
Clip
|
51455-32400-000 |
— | ||
| replacement | |||||
|
18
|
18
51455-29330-000 CLIPClip |
51455-29330-000 |
from US $3.31 |
||
|
19
|
19
01107-08608-000
Bolt
|
01107-08608-000 |
— | ||
| replacement | |||||
|
19
|
19
01500-0860B-000 Bolt |
01500-0860B-000 |
from US $3.24 |
||
|
20
|
20
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
20
|
20
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
21
|
21
01107-08558-000
Bolt
|
01107-08558-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-08557-000 BOLT |
01500-08557-000 |
from US $4.38 |
||
|
22
|
22
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
22
|
22
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
23
|
23
51453-05110-000 CLIP,BRAKE CABLE |
51453-05110-000 |
from US $2.29 |
||
|
24
|
24
02112-06108-000
Screw
|
02112-06108-000 |
— | ||
| replacement | |||||
|
24
|
24
02112-06107-000 SCREW |
02112-06107-000 |
from US $0.80 |
||
|
25
|
25
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
25
|
25
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
26
|
26
51631-28000-000 NUT,STEERING STEM(25X44X10)Nut, stem Nut, steering stem; |
51631-28000-000 |
from US $8.80 |
||
|
27
|
27
09265-25008-000
Bearing (25x47x15)
|
09265-25008-000 |
— | ||
| replacement | |||||
|
27
|
27
09265-25019-000 BEARING(25X47X15)Bearing (25x47x15) |
09265-25019-000 |
from US $25.84 |
||
|
28
|
28
51643-49001-000
Dust seal
|
51643-49001-000 |
— | ||
| replacement | |||||
|
28
|
28
51643-49002-000 SEAL,STEERING UPR DUSTDust seal |
51643-49002-000 |
from US $6.84 |
||
|
29
|
29
51910-25310-000
Lock assy, steering
|
51910-25310-000 |
— | ||
| replacement | |||||
|
29
|
29
51910-25311-000 LOCK ASSY,STEERINGLock assy, steering |
51910-25311-000 |
from US $24.32 |
||
|
30
|
30
02112-05128-000
Screw
|
02112-05128-000 |
— | ||
| replacement | |||||
|
30
|
30
02112-05127-000 SCREWScrew, vacuum sw valve |
02112-05127-000 |
from US $0.80 |
||
|
31
|
31
08321-21058-000
Lock washer
|
08321-21058-000 |
— | ||
| replacement | |||||
|
31
|
31
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
