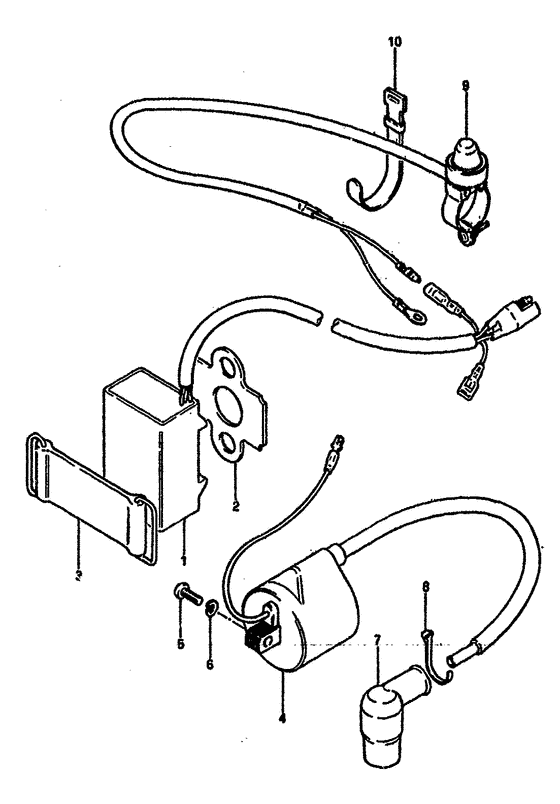

Electrical Diagram Suzuki RM125
- Year
- 1984
- Model code
- RM125E(E/F) E
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32900-14500-000
Cdi unit assy
|
32900-14500-000 |
— | ||
|
2
|
2
32941-14300-000
PROTECTOR,CDI UNIT
|
32941-14300-000 |
— | ||
|
3
|
3
32942-14110-000 Band |
32942-14110-000 |
US $8.61 |
||
| replacement | |||||
|
3
|
3
32942-14111-000 BAND(L:65) |
32942-14111-000 |
from US $10.12 |
||
|
4
|
4
33410-14500-000
Coil assy,ignition
|
33410-14500-000 |
— | ||
| replacement | |||||
|
4
|
4
33410-14132-000
Coil assy,ignition
|
33410-14132-000 |
— | ||
|
5
|
5
02112-06208-000
Screw
|
02112-06208-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-06207-000 SCREW |
02112-06207-000 |
from US $0.80 |
||
|
6
|
6
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
7
|
7
33510-41111-000 Cap, spark plug |
33510-41111-000 |
US $29.82 |
||
| replacement | |||||
|
7
|
7
33510-20A02-000 Cap,spark plug |
33510-20A02-000 |
from US $19.20 |
||
|
8
|
8
09407-09402-000 CLAMP |
09407-09402-000 |
from US $1.93 |
||
|
9
|
9
37820-40401-000
Switch assy,engine stop
|
37820-40401-000 |
— | ||
| replacement | |||||
|
9
|
9
37820-14X50-000 SWITCH ASSY,ENGINE STOPSwitch assy, engine stop |
37820-14X50-000 |
from US $20 |
||
|
10
|
10
09407-12402-000 CLAMP(L:120)Clamp, wiring harness Clamp; |
09407-12402-000 |
from US $1.98 |
||
