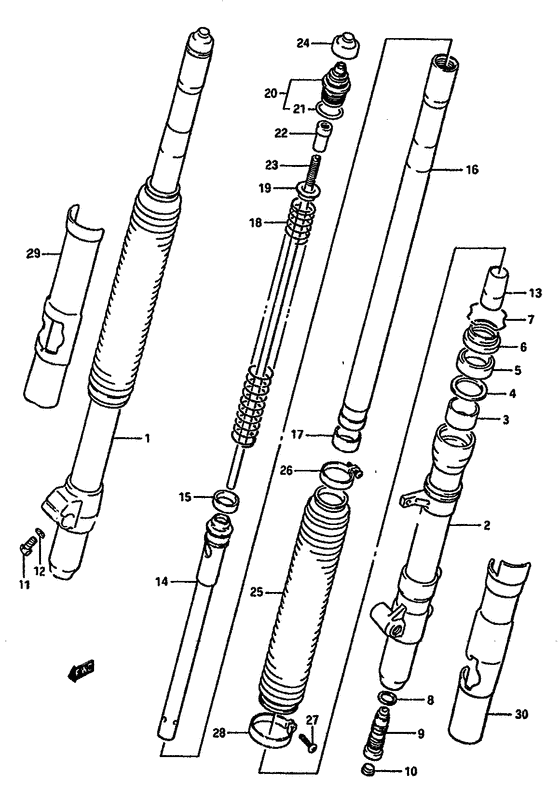

Front fork (Model j) Diagram Suzuki RM125
- Year
- 1988
- Model code
- RM125J(G/H/J) J
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33
|
33
51103-01B40-000
Damper assy,rh
|
51103-01B40-000 |
— | ||
|
33
|
33
51104-01B50-000
Damper assy,lh
|
51104-01B50-000 |
— | ||
|
1
|
1
51130-01B40-000
Outer tube,rh
Outer tube,rh; |
51130-01B40-000 |
— | ||
|
2
|
2
51140-01B40-000
Outer tube,lh
Outer tube,lh; |
51140-01B40-000 |
— | ||
|
3
|
3
51167-14200-000
Slide metal
Slide metal; |
51167-14200-000 |
— | ||
| replacement | |||||
|
3
|
3
51167-40C00-000 METAL,SLIDESlide metal; |
51167-40C00-000 |
from US $6.84 |
||
|
4
|
4
51158-14200-000 WASHERWasher Washer; |
51158-14200-000 |
from US $2.58 |
||
|
5
|
5
51153-01B40-000
Oil seal
Oil seal; |
51153-01B40-000 |
— | ||
| replacement | |||||
|
5
|
5
51150-01890-000
Seal set,front fork
Oil seal; |
51150-01890-000 |
— | ||
|
6
|
6
51173-01B40-000
Dust seal
|
51173-01B40-000 |
— | ||
|
7
|
7
51156-14200-000 RING,STOPPERRing, snap Ring,stopper; |
51156-14200-000 |
US $11.25 |
||
|
8
|
8
51148-01B40-000
Gasket
|
51148-01B40-000 |
— | ||
|
9
|
9
51170-01B40-000
Valve
|
51170-01B40-000 |
— | ||
| replacement | |||||
|
9
|
9
51170-26C10-000
Valve assy,fr.
|
51170-26C10-000 |
— | ||
|
10
|
10
51189-14500-000
Cap
Cap,valve; |
51189-14500-000 |
— | ||
|
11
|
11
01107-08307-000 Bolt 8x30 |
01107-08307-000 |
US $2.94 |
||
| replacement | |||||
|
11
|
11
01500-08307-000 Bolt |
01500-08307-000 |
from US $0.91 |
||
|
12
|
12
08321-21088-000
Lock washer
Lock washer; |
08321-21088-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-01087-000 WASHER,LOCKWasher, lock Lock washer; |
08321-01087-000 |
from US $0.76 |
||
|
13
|
13
51195-01B40-000
Piece,oil lock
Piece,oil lock; |
51195-01B40-000 |
— | ||
|
14
|
14
51146-01B40-000
Cylinder
|
51146-01B40-000 |
— | ||
|
15
|
15
51196-00B20-000
Ring piston
|
51196-00B20-000 |
— | ||
|
16
|
16
51110-01B40-000
Inner tube
Inner tube; |
51110-01B40-000 |
— | ||
|
17
|
17
51121-14200-000
PISTON
|
51121-14200-000 |
— | ||
|
18
|
18
51171-00B20-000
Spring fork
|
51171-00B20-000 |
— | ||
|
19
|
19
51172-14280-000
Guide spring
Guide,spring; |
51172-14280-000 |
— | ||
|
20
|
20
51351-01B40-000
Cap
|
51351-01B40-000 |
— | ||
|
21
|
21
51117-14200-000
O RING
Oil ring; |
51117-14200-000 |
— | ||
| replacement | |||||
|
21
|
21
51117-14201-000 O RingOil ring; |
51117-14201-000 |
US $2.24 |
||
|
22
|
22
51129-01B40-000
Nut,piston rod
|
51129-01B40-000 |
— | ||
| replacement | |||||
|
22
|
22
51129-27C00-000
NUT,PISTON ROD
|
51129-27C00-000 |
— | ||
|
23
|
23
51128-01B40-000
Rod,piston
|
51128-01B40-000 |
— | ||
|
24
|
24
51188-01B20-000
CAP
|
51188-01B20-000 |
— | ||
|
25
|
25
51571-01B20-25Y
Boot (yellow)
Boot (yellow); |
51571-01B20-25Y |
— | ||
| replacements | |||||
|
25
|
25
51571-32E00-38K
BOOT(BLUE)
Boot (yellow); |
51571-32E00-38K |
— | ||
|
25
|
25
51571-32E01-38K
Boot(Blue)
Boot (yellow); |
51571-32E01-38K |
— | ||
|
25
|
25
51571-32E01-019 Boot(Black)Boot (yellow); |
51571-32E01-019 |
US $48.21 |
||
|
26
|
26
51575-01B20-000
BAND,BOOT UPR
Band,boot upper; |
51575-01B20-000 |
— | ||
|
27
|
27
51577-01B20-000 SCREW,BAND BOOT(3.5X10)Screw, upper |
51577-01B20-000 |
US $1.03 |
||
|
28
|
28
51576-00B00-000 BAND,BOOT LWRBand,boot lower; |
51576-00B00-000 |
from US $6.11 |
||
|
29
|
29
51201-14500-163
Protector, rh (yellow)
Protector,rh (yellow); Opt |
51201-14500-163 |
— | ||
|
30
|
30
51202-14501-163
Fork protector
Protector,lh (yellow); Opt |
51202-14501-163 |
— | ||
