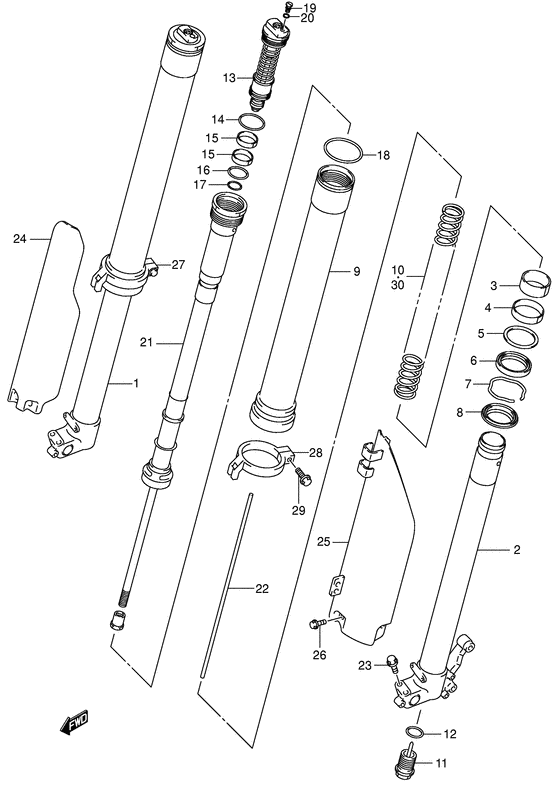

Front damper (Model k1) Diagram Suzuki RM125
- Year
- 2002
- Model code
- RM125K2(E2) K2
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
51103-36F10-000
DAMPER ASSY,FR FORK,R
|
51103-36F10-000 |
— | ||
|
|
51104-36F10-000
DAMPER ASSY,FR FORK,L
|
51104-36F10-000 |
— | ||
|
1
|
1
51110-36F00-000
TUBE,INNER,R
|
51110-36F00-000 |
— | ||
|
2
|
2
51120-36F00-000
TUBE,INNER,L
|
51120-36F00-000 |
— | ||
|
3
|
3
51121-36F00-000 Bush,sliderBush, slide |
51121-36F00-000 |
from US $6.23 |
||
|
4
|
4
51167-36F00-000 Bush,guide |
51167-36F00-000 |
from US $6.84 |
||
|
5
|
5
51158-36F00-000 SPACER,SEAL |
51158-36F00-000 |
from US $2.72 |
||
|
6
|
6
51153-36F00-000 SEAL,OIL |
51153-36F00-000 |
from US $23.92 |
||
|
7
|
7
51156-36F00-000
Ring, oil seal stopper
|
51156-36F00-000 |
— | ||
| replacement | |||||
|
7
|
7
51156-27C40-000 RING,OIL SEAL STOPPERRing, stopper |
51156-27C40-000 |
from US $1.92 |
||
|
8
|
8
51173-36F00-000 SEAL,DUST |
51173-36F00-000 |
from US $21.34 |
||
|
9
|
9
51130-36F00-000
TUBE,OUTER
|
51130-36F00-000 |
— | ||
|
10
|
10
51171-36F00-000
SPRING,FR(K=0.40)
Spring, front (k=0.40); |
51171-36F00-000 |
— | ||
|
11
|
11
51170-36E20-000 BOLT,CTR |
51170-36E20-000 |
from US $138.37 |
||
|
12
|
12
51177-36E20-000 O RING |
51177-36E20-000 |
from US $2.08 |
||
|
13
|
13
51351-36F10-000 BOLT,FORK |
51351-36F10-000 |
from US $246.56 |
||
|
14
|
14
51117-36E00-000 O RING |
51117-36E00-000 |
from US $3.39 |
||
|
15
|
15
51123-28E30-000 BUSH,FORK BOLT SLIDEBush, fork bolt slide; |
51123-28E30-000 |
from US $5.92 |
||
|
16
|
16
51174-36E40-000 O RING |
51174-36E40-000 |
from US $2.08 |
||
|
17
|
17
51175-36F00-000
O ring
|
51175-36F00-000 |
— | ||
| replacement | |||||
|
17
|
17
51175-36E20-000 O RING |
51175-36E20-000 |
from US $1.76 |
||
|
18
|
18
51117-36E60-000 O RING |
51117-36E60-000 |
from US $3.75 |
||
|
19
|
19
51357-36F00-000
Bolt, plug
|
51357-36F00-000 |
— | ||
| replacement | |||||
|
19
|
19
51357-36F20-000 BOLT,PLUG |
51357-36F20-000 |
from US $7.03 |
||
|
20
|
20
51358-28E30-000 O RING,PLUG |
51358-28E30-000 |
from US $1.76 |
||
|
21
|
21
51190-36F10-000
ROD,DAMPER
|
51190-36F10-000 |
— | ||
|
22
|
22
51191-36F00-000
ROD,PUSH
|
51191-36F00-000 |
— | ||
|
23
|
23
51328-36F00-000 BOLT |
51328-36F00-000 |
from US $5.85 |
||
|
24
|
24
51501-36E60-000
PROTECTOR FORK,R
|
51501-36E60-000 |
— | ||
|
25
|
25
51511-36E60-000
PROTECTOR,FORK,L
|
51511-36E60-000 |
— | ||
|
26
|
26
58627-27C40-000 BOLT,PROTECTOR(6X10) |
58627-27C40-000 |
from US $2.17 |
||
|
27
|
27
51220-36E61-000 GUIDE,PROTECTOR,R |
51220-36E61-000 |
from US $28.89 |
||
|
28
|
28
51210-36E61-000 GUIDE,PROTECTOR,L |
51210-36E61-000 |
from US $28.89 |
||
|
29
|
29
01547-06207-000 BoltBolt, lower |
01547-06207-000 |
from US $0.80 |
||
|
30
|
30
51171-36F10-000 SPRING,FR(K=0.42)Spring, front (hard k=0.42) Opt |
51171-36F10-000 |
US $65.87 |
||
|
30
|
30
51171-36F20-000
SPRING,FR(SOFT,K=0.38)
Spring, front (soft k=0.38); Opt |
51171-36F20-000 |
— | ||
