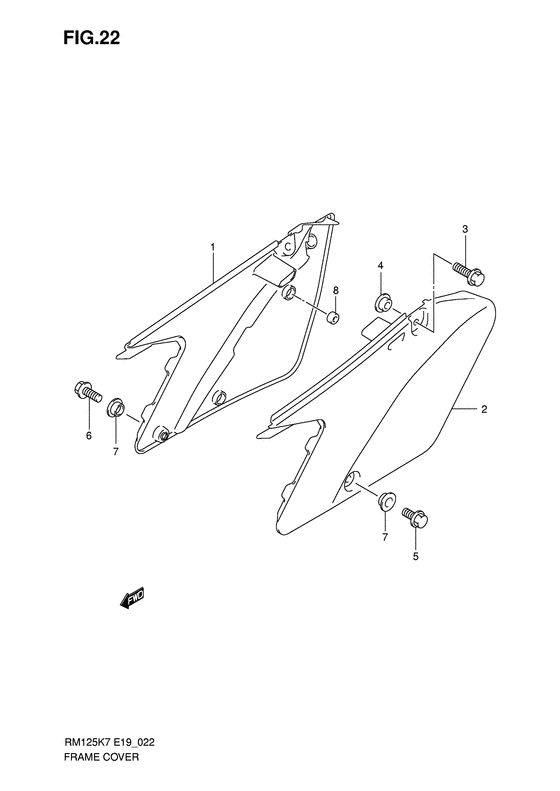

Frame cover Diagram Suzuki RM125
- Year
- 2008
- Model code
- RM125K8(E19) K8
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47111-36F20-30H COVER,FRAME,R(WHITE)Cover, frame rh (white); |
47111-36F20-30H |
from US $55.94 |
||
|
2
|
2
47211-36F20-30H COVER,FRAME,L(WHITE)Cover, frame lh (white); |
47211-36F20-30H |
from US $55.94 |
||
|
3
|
3
09116-06182-000 BOLT(6X20)Bolt (6x20) Bolt, seat; |
09116-06182-000 |
from US $1.22 |
||
|
4
|
4
53112-37F01-000 WASHER |
53112-37F01-000 |
from US $6.29 |
||
|
5
|
5
09103-06233-000 BOLT(6X12)Bolt, rear Bolt, front lh; |
09103-06233-000 |
from US $1.93 |
||
|
6
|
6
09103-06234-000 BOLT(6X16)Bolt, chain guide Bolt, front rh; |
09103-06234-000 |
from US $1.93 |
||
|
7
|
7
69232-37F01-000 WASHERWasher, air cleaner Washer, front; |
69232-37F01-000 |
from US $5.85 |
||
|
8
|
8
47161-37F00-000 CUSHION,FRAME COVER,R |
47161-37F00-000 |
from US $5.63 |
