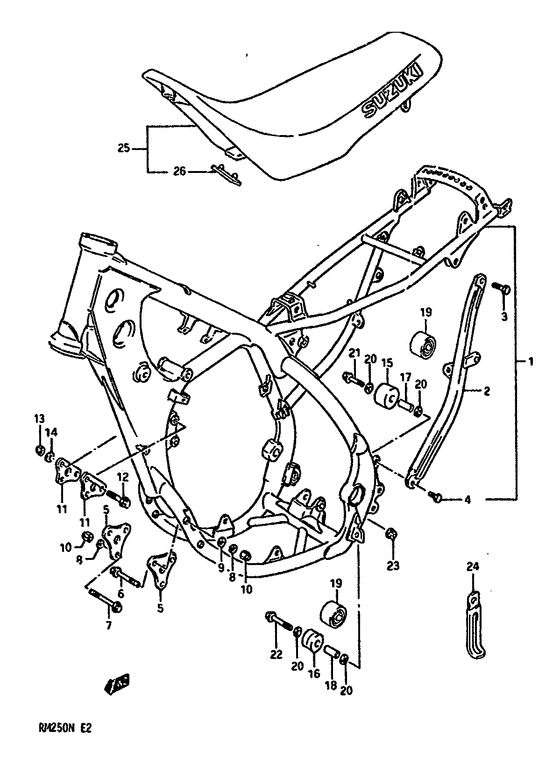

Frame-seat Diagram Suzuki RM250
- Year
- 1990
- Model code
- RM250L(K/L/M/N) L
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-28830-19F
Frame(truck shi
Frame set (blue); Model k |
41100-28830-19F |
— | ||
| replacement | |||||
|
1
|
1
09285-28003-000
New Genuine Part
Frame set (blue); Model k |
09285-28003-000 |
— | ||
|
1
|
1
41100-28840-19F
Frame(truck shi
Frame set (blue); Model l |
41100-28840-19F |
— | ||
| replacement | |||||
|
1
|
1
09285-28003-000
New Genuine Part
Frame set (blue); Model l |
09285-28003-000 |
— | ||
|
1
|
1
41100-28850-1AZ
Frame(truck shi
Frame set (yellow); Model m |
41100-28850-1AZ |
— | ||
| replacement | |||||
|
1
|
1
09285-28003-000
New Genuine Part
Frame set (yellow); Model m |
09285-28003-000 |
— | ||
|
1
|
1
41100-28860-1AZ
Frame(truck shi
Frame set (yellow); Model n |
41100-28860-1AZ |
— | ||
|
2
|
2
41670-27C00-000
Tube, frame side
Model k |
41670-27C00-000 |
— | ||
|
2
|
2
41670-27C10-000
Tube, frame side
Model l/m |
41670-27C10-000 |
— | ||
| replacements | |||||
|
2
|
2
41670-43D00-000
TUBE,FRAME SIDE,L
Model l/m |
41670-43D00-000 |
— | ||
|
2
|
2
01560-0816A-000 BoltModel l/m |
01560-0816A-000 |
from US $2.26 |
||
|
2
|
2
01560-08163-000
Bolt, lower
Model l/m |
01560-08163-000 |
— | ||
|
2
|
2
41670-43D00-000
TUBE,FRAME SIDE,L
Tube,frame side; Model n |
41670-43D00-000 |
— | ||
|
3
|
3
09100-08274-000 BOLT(8X22)Bolt (8x22) Bolt,upper; Model k/l/m |
09100-08274-000 |
from US $2.99 |
||
|
3
|
3
01127-08257-000
Bolt
Bolt,upper; Model n |
01127-08257-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-08257-000 BOLTBolt,upper; Model n |
01550-08257-000 |
from US $0.95 |
||
|
4
|
4
09100-08267-000
Bolt, lower
Model k/m |
09100-08267-000 |
— | ||
| replacement | |||||
|
4
|
4
09100-08284-000 BOLT(8X16)Model k/m |
09100-08284-000 |
from US $1.28 |
||
|
4
|
4
09100-08284-000 BOLT(8X16)Bolt,lower; Model l |
09100-08284-000 |
from US $1.28 |
||
|
4
|
4
01127-08168-000
Bolt, lower
Model n |
01127-08168-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-08167-000 BoltBolt (8x16) Model n |
01550-08167-000 |
from US $2.61 |
||
|
5
|
5
41991-28C00-000 PLATE,ENG MTG FRPlate, engine mount front Plate,engine mount front; |
41991-28C00-000 |
US $32.20 |
||
|
6
|
6
09103-08027-000
Bolt, upper
Model k |
09103-08027-000 |
— | ||
| replacement | |||||
|
6
|
6
09103-08339-000 BOLT(8X55)Model k |
09103-08339-000 |
from US $1.82 |
||
|
6
|
6
09103-08274-000
Bolt
Model l/m/n |
09103-08274-000 |
— | ||
| replacement | |||||
|
6
|
6
09103-08339-000 BOLT(8X55)Model l/m/n |
09103-08339-000 |
from US $1.82 |
||
|
7
|
7
09103-08217-000 BOLT(8X60)Bolt (8x60) Bolt,front lower rh; |
09103-08217-000 |
from US $2.94 |
||
|
8
|
8
08321-21088-000
Lock washer
Model k |
08321-21088-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-01087-000 WASHER,LOCKWasher, lock Model k |
08321-01087-000 |
from US $0.76 |
||
|
9
|
9
08322-11088-000
Washer
Model k |
08322-11088-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-01087-000 WASHERLock washer Model k |
08322-01087-000 |
from US $0.76 |
||
|
10
|
10
08319-21088-000
Nut 8mm
Nut; Model k |
08319-21088-000 |
— | ||
| replacement | |||||
|
10
|
10
08319-2108A-000 NUTNut, lower Nut; Model k |
08319-2108A-000 |
from US $1.93 |
||
|
10
|
10
09159-08034-000 NUTModel l/m/n |
09159-08034-000 |
from US $1.52 |
||
|
11
|
11
41993-28C00-000
PLATE,ENGINE MOUNT UPR
Plate,engine mounting upper; Model k/l |
41993-28C00-000 |
— | ||
|
11
|
11
41993-28C20-000
Plate, engine mounting upper
Model m |
41993-28C20-000 |
— | ||
| replacement | |||||
|
11
|
11
41993-28C21-000
Plate,engine mo
Model m |
41993-28C21-000 |
— | ||
|
11
|
11
41993-28C21-000
Plate,engine mo
Plate,engine mounting upper; Model n |
41993-28C21-000 |
— | ||
|
12
|
12
01517-08508-000
Bolt 8x50
Model k |
01517-08508-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-08507-000 BOLTModel k |
01550-08507-000 |
from US $3.33 |
||
|
12
|
12
09103-08043-000 BOLT(8X45)Bolt chain roller Model l/m/n |
09103-08043-000 |
from US $1.07 |
||
|
13
|
13
08319-21088-000
Nut 8mm
Nut; Model k |
08319-21088-000 |
— | ||
| replacement | |||||
|
13
|
13
08319-2108A-000 NUTNut, lower Nut; Model k |
08319-2108A-000 |
from US $1.93 |
||
|
13
|
13
09159-08034-000 NUTModel l/m/n |
09159-08034-000 |
from US $1.52 |
||
|
14
|
14
08322-11088-000
Washer
Model k |
08322-11088-000 |
— | ||
| replacement | |||||
|
14
|
14
08322-01087-000 WASHERLock washer Model k |
08322-01087-000 |
from US $0.76 |
||
|
15
|
15
43911-01B10-000 ROLLER,CHAIN CONTROLRoller, chain control Roller,chain control upper; Model k |
43911-01B10-000 |
from US $14.56 |
||
|
16
|
16
43911-35B00-000 ROLLER,CHAIN CONTROLRoller, chain control Roller,chain control lower; Model k |
43911-35B00-000 |
from US $11.92 |
||
|
17
|
17
09180-08136-000 Spacer, chain rollerModel k |
09180-08136-000 |
US $4.36 |
||
| replacement | |||||
|
17
|
17
09180-08206-000 SPACER(8.5X14X28)Model k |
09180-08206-000 |
from US $4.36 |
||
|
18
|
18
09180-08119-000 SPACER(8.6X12X25.5)Spacer,lower; Model k |
09180-08119-000 |
US $24.30 |
||
| replacement | |||||
|
18
|
18
09180-08156-000 SPACER(8.6X12X27.1)Spacer,lower; Model k |
09180-08156-000 |
from US $2.56 |
||
|
19
|
19
43910-27C10-000
Roller, chain control
Model l/m |
43910-27C10-000 |
— | ||
| replacement | |||||
|
19
|
19
43910-27C11-000 ROLLER,CHAINRoller, chain lower Model l/m |
43910-27C11-000 |
from US $40.11 |
||
|
19
|
19
43910-27C11-000 ROLLER,CHAINRoller, chain lower Roller,chain control; Model n |
43910-27C11-000 |
from US $40.11 |
||
|
20
|
20
08211-08221-000 WASHERWasher, upper Washer; Model k |
08211-08221-000 |
from US $1.93 |
||
|
20
|
20
08211-08121-000 WASHERWasher; Model l/m/n |
08211-08121-000 |
from US $1.82 |
||
|
21
|
21
09103-08083-000 BOLT(8X41)Bolt,upper; |
09103-08083-000 |
from US $1.68 |
||
|
22
|
22
09103-08043-000 BOLT(8X45)Bolt chain roller Bolt,lower; |
09103-08043-000 |
from US $1.07 |
||
|
23
|
23
08319-31087-000 NUTNut,lower; |
08319-31087-000 |
from US $1.67 |
||
|
24
|
24
09404-08402-000
Clamp
Model l/m/n |
09404-08402-000 |
— | ||
| replacement | |||||
|
24
|
24
09404-08420-000 CLAMP(L:120 T:1.0)Model l/m/n |
09404-08420-000 |
from US $2.08 |
||
|
25
|
25
45100-28C00-4UZ
Seat set
Seat assy (blue); Model k/l |
45100-28C00-4UZ |
— | ||
|
25
|
25
45100-28C10-E83
Seat assy
Model m |
45100-28C10-E83 |
— | ||
|
25
|
25
45100-28C10-K33
Seat set
Model n |
45100-28C10-K33 |
— | ||
|
26
|
26
09321-08009-000 CUSHIONCushion Cushion; |
09321-08009-000 |
from US $2.94 |
||
