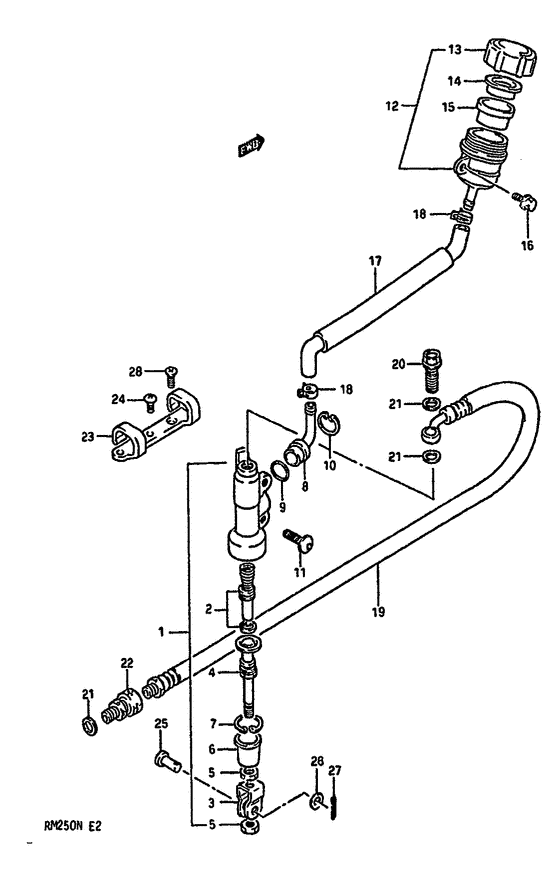

Rear master cylinder (Model k) Diagram Suzuki RM250
- Year
- 1990
- Model code
- RM250L(K/L/M/N) L
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69600-00B23-000
Cylinder assy, rear master
Cylinder assy,rear master; |
69600-00B23-000 |
— | ||
|
2
|
2
69600-34810-000 PISTON/CUP SETPiston/cup set Piston/cup set; |
69600-34810-000 |
from US $40.80 |
||
|
3
|
3
69692-00B21-000 YOKE |
69692-00B21-000 |
from US $11.19 |
||
|
4
|
4
69670-00B21-000 ROD,PUSHRod, push Rod,push; |
69670-00B21-000 |
from US $15.04 |
||
|
5
|
5
69693-05A00-000 NUT |
69693-05A00-000 |
from US $1.52 |
||
|
6
|
6
69691-00A00-000 BOOT |
69691-00A00-000 |
from US $2.58 |
||
|
7
|
7
51162-70040-000 CIRCLIP |
51162-70040-000 |
from US $2.17 |
||
|
8
|
8
69672-00B20-000 CONNECTOR |
69672-00B20-000 |
from US $7.68 |
||
|
9
|
9
69686-34200-000 O RING |
69686-34200-000 |
from US $1.52 |
||
|
10
|
10
69674-00B20-000 CIRCLIP |
69674-00B20-000 |
from US $1.52 |
||
|
11
|
11
09106-06064-000 BOLT(6X18)Bolt |
09106-06064-000 |
from US $8.58 |
||
|
12
|
12
69740-00B21-000
Tank assy, reservoir
-69740-05d00 |
69740-00B21-000 |
— | ||
| replacement | |||||
|
12
|
12
69740-05D00-000 TANK ASSY,RESERVOIRTank assy, reservoir -69740-05d00 |
69740-05D00-000 |
US $63.79 |
||
|
13
|
13
69669-00B21-000
Cap
-69669-03d10 |
69669-00B21-000 |
— | ||
| replacement | |||||
|
13
|
13
69669-03D10-000 CAP-69669-03d10 |
69669-03D10-000 |
from US $14.40 |
||
|
14
|
14
69668-00B20-000 PLATE |
69668-00B20-000 |
from US $3.72 |
||
|
15
|
15
69667-00B20-000 DIAPHRAGM |
69667-00B20-000 |
from US $8.64 |
||
|
16
|
16
01517-06128-000
Bolt
|
01517-06128-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
17
|
17
69731-00B23-000
Hose, reservoir tank
Hose,reservoir tank; |
69731-00B23-000 |
— | ||
|
18
|
18
69735-00B20-000 CLAMP,RESERVOIR HOSEClamp, reservoir hose |
69735-00B20-000 |
from US $2.39 |
||
|
19
|
19
69480-27C01-000
Hose, rear brake
|
69480-27C01-000 |
— | ||
| replacement | |||||
|
19
|
19
69480-27C02-000
HOSE,RR BRAKE
|
69480-27C02-000 |
— | ||
|
20
|
20
09360-10017-000 UNIONBolt (10x1.00x24) Union; |
09360-10017-000 |
from US $1.68 |
||
|
21
|
21
09161-10009-000 WASHER(10X15X1.5)Lock washer Washer (10x15x1.5); |
09161-10009-000 |
from US $0.86 |
||
|
22
|
22
59290-14501-000 ADAPTOR,BRAKE HOSEAdapter,hose; |
59290-14501-000 |
from US $17.66 |
||
|
23
|
23
61196-28C00-000
Guide,rear brak
Clamp,rear brake hose; |
61196-28C00-000 |
— | ||
|
24
|
24
09125-05042-000 SCREW(5X10) |
09125-05042-000 |
from US $0.91 |
||
|
25
|
25
09200-08048-000 PIN(8X20) |
09200-08048-000 |
from US $1.07 |
||
|
26
|
26
09160-08074-000 WASHER(8.5X13X1.6)Washer, upper |
09160-08074-000 |
US $1.87 |
||
|
27
|
27
04111-20158-000
20 x 15 cotter
Pin,cotter; |
04111-20158-000 |
— | ||
| replacement | |||||
|
27
|
27
04111-2015A-000 PINPin,cotter; |
04111-2015A-000 |
from US $0.76 |
||
|
28
|
28
09126-05006-000 SCREW(5X10)Screw,front; |
09126-05006-000 |
US $21.70 |
||
