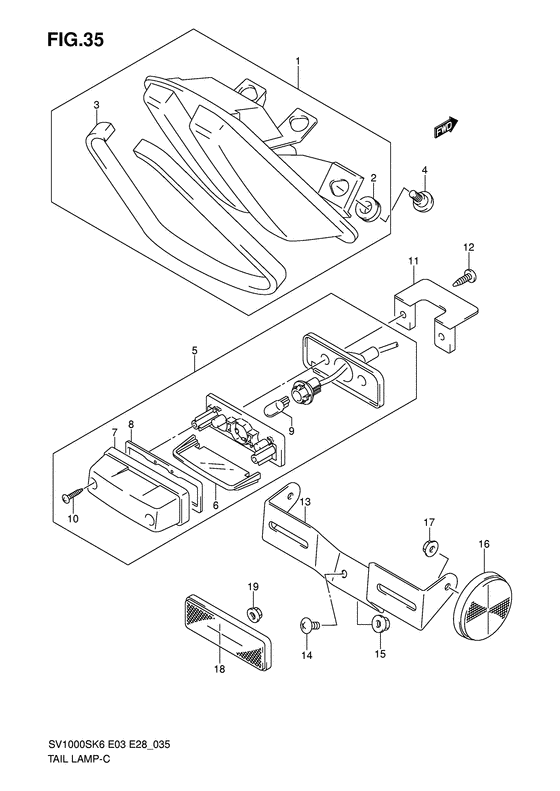

Tail lamp Diagram Suzuki SV1000
- Year
- 2007
- Model code
- SV1000SK7(E3/E28) K7
- Engine Capacity
- 1000
- Model
- SV1000S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35710-16G31-000 LAMP ASSY,RR COMBINATION |
35710-16G31-000 |
from US $153.16 |
||
|
2
|
2
09320-10049-000 CUSHIONCushion (10x20x10); |
09320-10049-000 |
from US $2.21 |
||
|
3
|
3
45519-16G00-000
Cushion, seat tail cover rr
10x200x15 |
45519-16G00-000 |
— | ||
| replacement | |||||
|
3
|
3
45519-16G01-000 CUSHION,SEAT TAIL COVER10x200x15 |
45519-16G01-000 |
from US $5.85 |
||
|
4
|
4
09139-06118-000 SCREW(6X22.5)Screw, headlamp; |
09139-06118-000 |
from US $4.67 |
||
|
5
|
5
35910-16G10-000
Lamp assy,license
|
35910-16G10-000 |
— | ||
| replacement | |||||
|
5
|
5
35910-16G11-000 Lamp assy,license |
35910-16G11-000 |
US $41.58 |
||
|
6
|
6
35912-16G00-000
Lens
|
35912-16G00-000 |
— | ||
| replacement | |||||
|
6
|
6
35912-16G01-000 LENS |
35912-16G01-000 |
from US $6.29 |
||
|
7
|
7
35917-16G00-000 COVER |
35917-16G00-000 |
from US $8.16 |
||
|
8
|
8
35913-16G00-000 GASKET |
35913-16G00-000 |
US $4.42 |
||
|
9
|
9
09471-12216-000 BULB(12V5W)Bulb (12v5w) Bulb (12v,5w); |
09471-12216-000 |
from US $2.41 |
||
|
10
|
10
03211-0416A-000 SCREW |
03211-0416A-000 |
from US $0.77 |
||
|
11
|
11
35926-16G00-000 BRACKET,LICENSEBracket, license plate |
35926-16G00-000 |
from US $7.40 |
||
|
12
|
12
03541-0520B-000 SCREWScrew, fender Screw, license; |
03541-0520B-000 |
from US $2.10 |
||
|
13
|
13
35927-17G30-000 BRACKET,LICENSE PLATE |
35927-17G30-000 |
from US $8.83 |
||
|
14
|
14
02142-0616B-000 SCREWScrew, hinge Screw; |
02142-0616B-000 |
from US $1.70 |
||
|
15
|
15
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
16
|
16
35970-14A20-000 REFLECTOR ASSY,RR SIDEReflector assy, side Reflector assy, rear side; |
35970-14A20-000 |
from US $8.98 |
||
|
17
|
17
08316-1005B-000 NUTNut, rr |
08316-1005B-000 |
from US $2.38 |
||
|
18
|
18
35970-07F00-000
Reflector assy, rear side
Reflector assy, rear side; |
35970-07F00-000 |
— | ||
| replacement | |||||
|
18
|
18
35970-07F01-000 REFLECTOR ASSY,RRReflector assy, rear side; |
35970-07F01-000 |
from US $9.32 |
||
|
19
|
19
08316-1005B-000 NUTNut, rr |
08316-1005B-000 |
from US $2.38 |
||
